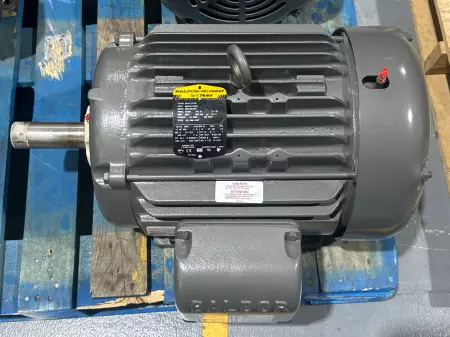

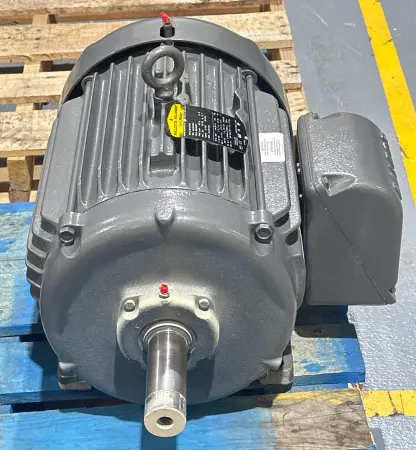

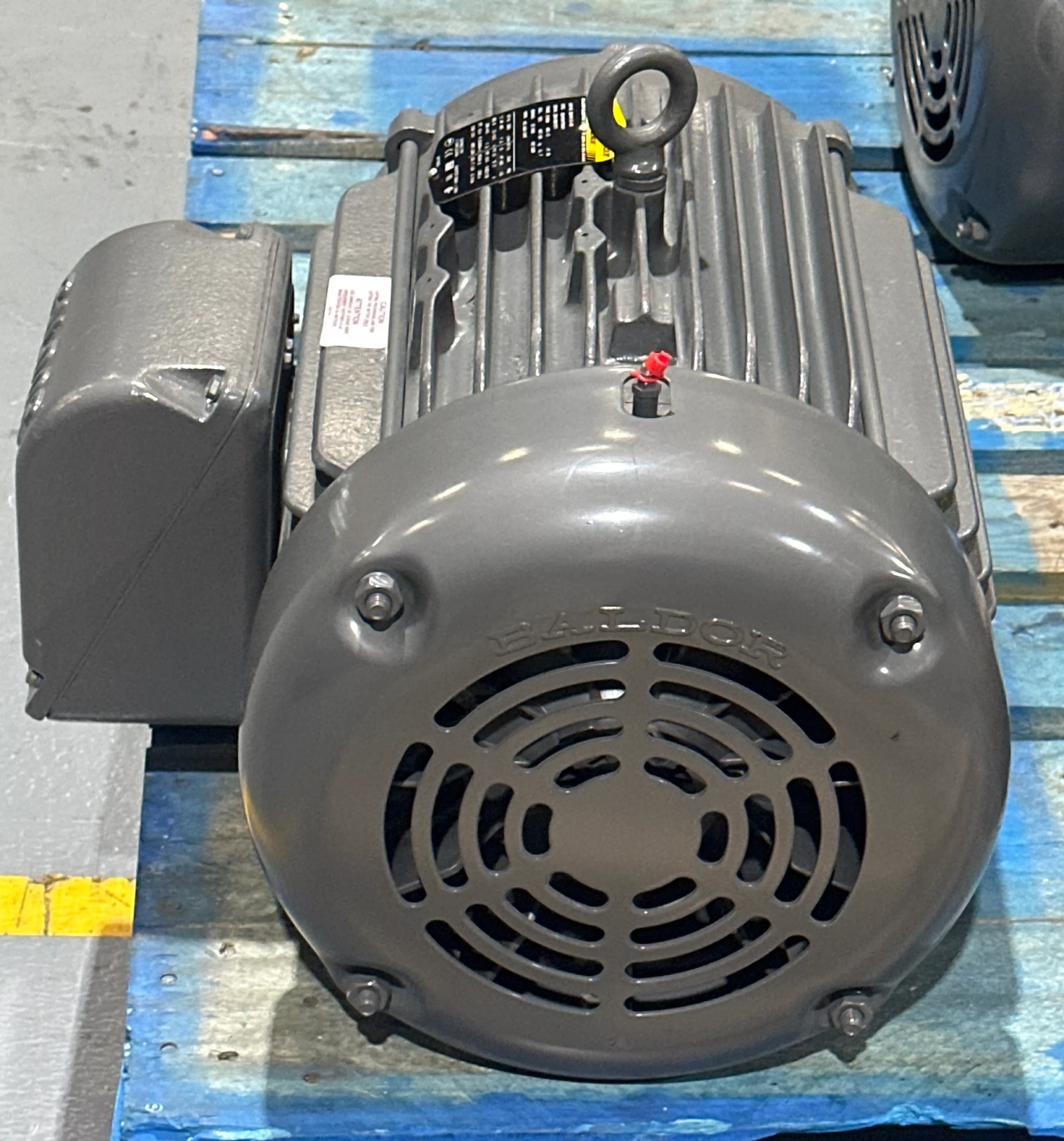

Baldor Reliance EM16112-58 Inverter Duty AC Motor, 15HP Frame D160M

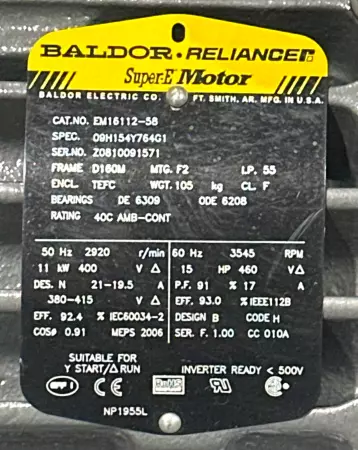

This is a premium-efficiency, inverter-duty AC induction motor from Baldor's Super-E® series, engineered for high-performance industrial applications. It is suitable for VFD operation and continuous duty environments. Technical Specifications: Model: EM16112-58 Catalog No.: EM16112-58 Specification No.: 09H154Y764G1 Frame: D160M Mounting: F2 Weight: 105 kg Enclosure: TEFC (Totally Enclosed Fan Cooled) Ingress Protection: IP55 Insulation Class: F Ambient Rating: 40°C, continuous duty Electrical Ratings: 50 Hz Operation: Power: 11 kW Voltage: 400 V (Δ), 380–415 V (Δ) Current: 21–19.5 A Speed: 2920 RPM Efficiency: 92.4% (IEC 60034-2) Power Factor: 0.91 COSφ: 0.91 60 Hz Operation: Power: 15 HP Voltage: 460 V (Δ) Current: 17 A Speed: 3545 RPM Efficiency: 93.0% (IEEE 112B) Power Factor: 0.91 Design: B Code: H Other Features: Service Factor: 1.00 Duty: Suitable for Y-Start/Δ-Run Inverter Ready: Yes, rated <500V Certifications: CE, UL, CSA, RoHS Standard Compliance: IEEE 112B, IEC 60034-2, MEPS 2006 Country of Manufacture: USA (Ft. Smith, Arkansas) Nameplate ID: NP1955L This motor is ideal for use with VFDs in demanding pump, fan, and industrial machinery applications requiring high efficiency and reliability. Let me know if you need wiring diagrams or a torque-speed curve.

Condition: Used

Weight:   151.00

Depth:   24.00

Length:   40.00

Width:   48.00

SKU:   274966 4.R4.8.4
