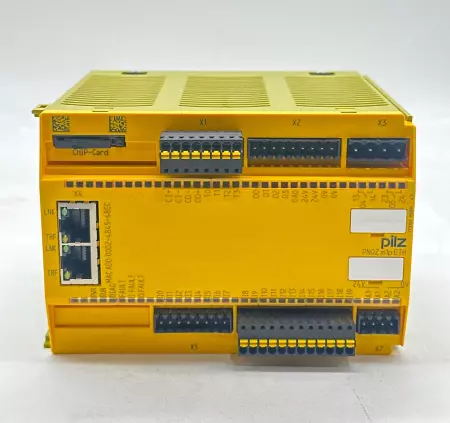

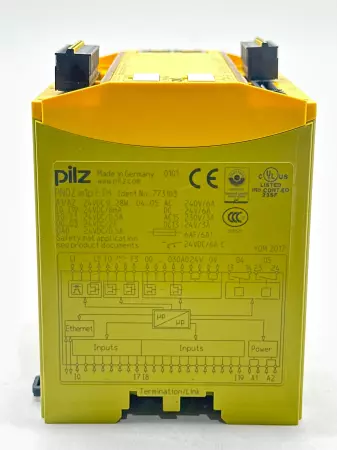

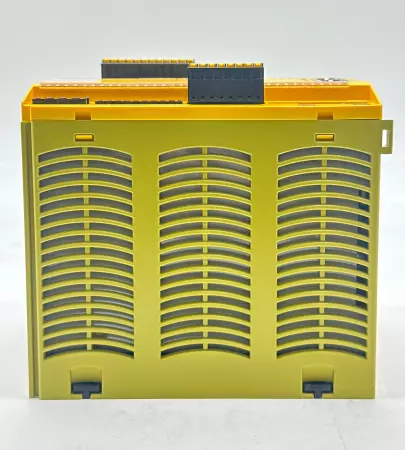

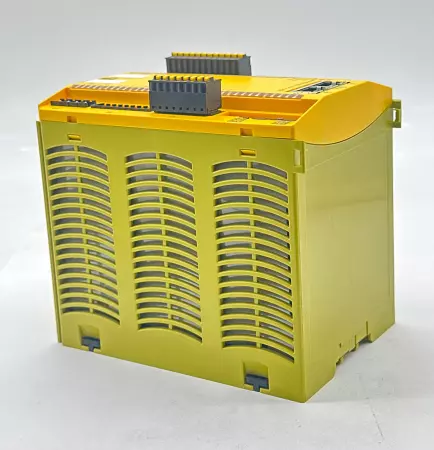

Pilz 773103 Safety Relay PNOZ M1P ETH

Model: PNOZ m1p ETH Part No.: 773103 Manufacturer: Pilz GmbH & Co. KG Country of Origin: Germany Type: Modular Safety System (PNOZmulti series) Standards: CE, cULus Listed (IND.CONT.EQ.) Electrical Characteristics: Power Supply (A1/A2): 24 VDC, 9.28 W Inputs: I0...I19: 24 VDC / 8 mA Outputs: T0...T3: 24 VDC / 0.5 A O0...O3: 24 VDC / 0.5 A OA0: 24 VDC / 1.5 A Relay Outputs (04...05): AC: 240 V / 6 A DC: 24 V / 6 A AC15: 230 V / 3 A DC13: 24 V / 3 A Contact ratings: 6AF / 6AT Interfaces: Communication: Integrated Ethernet interface Inputs: Digital inputs for safety-related signal processing Functionality: Modular base unit with expansion options for additional inputs/outputs Application: Designed for use in industrial safety control systems, typically for monitoring safety functions like emergency stops, safety gates, light curtains, etc.

Condition: Used

Weight:   4.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   274972 4.S3.6.2
