Magnetek 030-2407-009 Relay Control Circuit Board

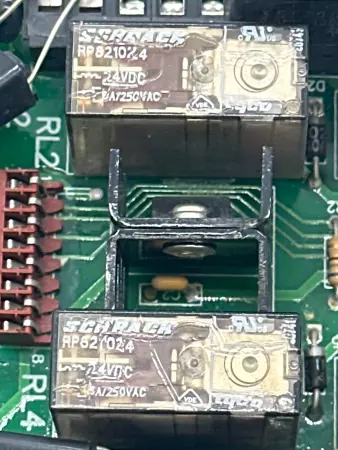

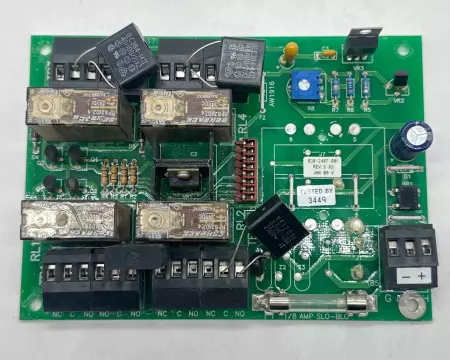

Relay control circuit board, and the part number 030-2407-009 suggests it is a custom or OEM (Original Equipment Manufacturer) board likely produced by or for Magnetek Identification and Function Main Function: This is a relay output board used for industrial control systems, allowing low-voltage logic to switch high-power loads via electromechanical relays. Relays: The board has 4 Finder Type 40.52 electromechanical relays (marked RP8-21024), which are: 24VDC coil voltage DPDT (Double Pole Double Throw) contacts Other Key Components: Relay driver transistors and diodes for back-EMF protection Screw terminal blocks for NO/NC/COM connections 1/8A SLO-BLO fuse for circuit protection VRs and capacitors for filtering and tuning (likely related to delay or debounce) Jumper Pin Block: Used to configure relay logic or enable/disable certain outputs Likely Use Case Industrial motor control Power distribution systems Custom PLC expansion I/O Control panels for automation equipment Please review pictures carefully and let us know if you have any questions!
