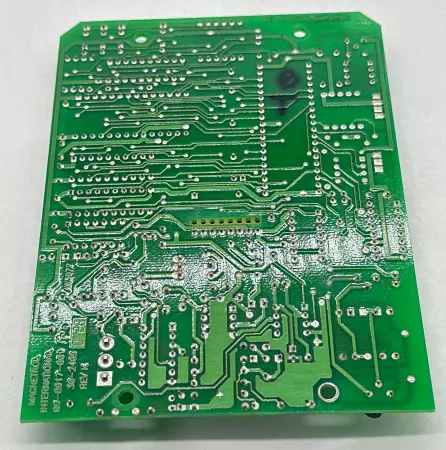

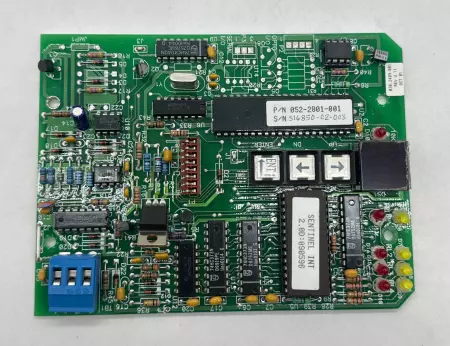

Magnetek 052-2801-001 Control/Display Circuit Board

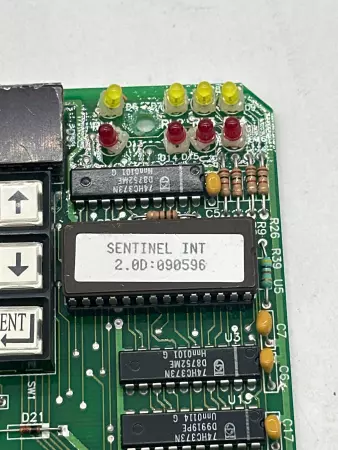

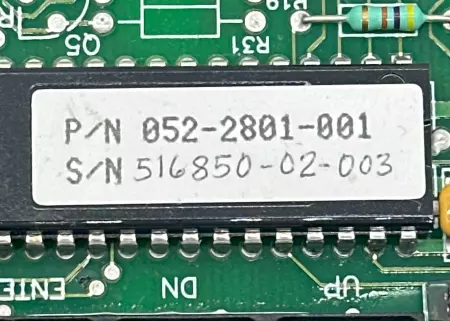

The circuit board marked Magnetek 052-2801-001 is a programmable control/display interface board, likely used in industrial systems such as elevator drives, motor control units, or power conditioning systems. Here's what we can determine: Identification & Purpose Manufacturer: Magnetek Part Number: 052-2801-001 Main Functions: Provides user interface logic and control Interfaces with system logic (possibly via serial or bus) Front-panel interface: features push-buttons and LEDs for local control/status Handles sensor inputs, system diagnostics, or motor/inverter programming EPROM (UV erasable) labeled Sentinel INT: Suggests this board is part of the Magnetek Sentinel series drive or inverter product line. Push Buttons (ENT, ⇐, ⇒): Local navigation of parameters/configuration MCU/Logic ICs: Mix of 74-series TTL logic and 2764/27C256-style EPROM Dip Switches and Jumpers: Used for hardware configuration LED Indicators: For status, error reporting, or mode indication Typical Use Case This board is commonly found in: Elevator motor controllers Crane/hoist drives DC or AC drive control panels Power conditioning or UPS systems

Condition: Used

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274974 4.S1.11.2B
