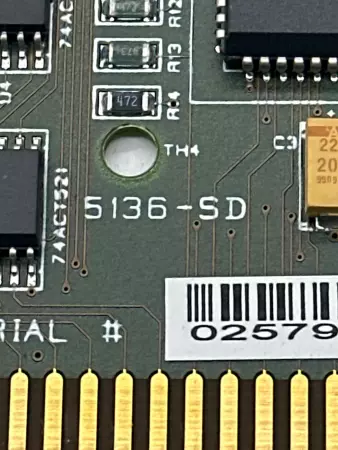

SST 5136-SD Serial Communication Interface Card

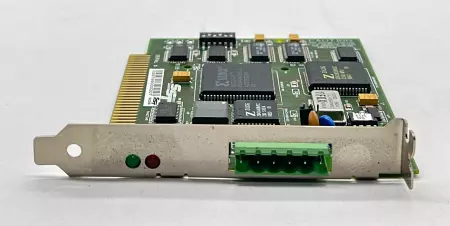

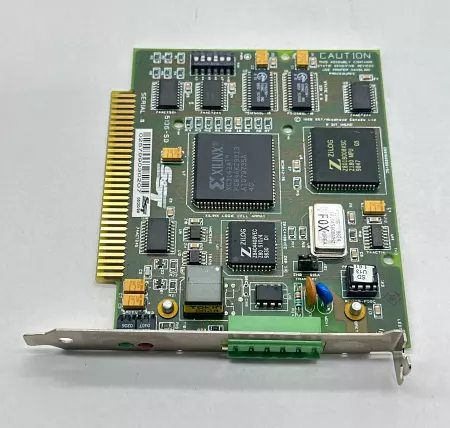

Serial communication interface card, specifically designed for industrial automation applications. Here's a detailed breakdown: Manufacturer: SST (formerly SST Communications, now part of Molex/Brad Communications) Part Number: 5136-SD Form Factor: ISA (Industry Standard Architecture) expansion card This is a serial communications interface card used for connecting industrial controllers (e.g., PLCs) to networks or serial devices. "SD" suffix suggests it's part of the 5136 series for serial data communication, likely RS-232/422/485 configurable. Commonly used in: SCADA systems Factory automation Communication between PLCs and HMIs or data acquisition units Xilinx XC3142A FPGA: Programmable logic controller used for handling custom serial protocols or timing control. Zilog Z80 CPU & SIO (Z0840004PSC, Z8440PCS): Classic 8-bit microprocessor + Serial Input/Output chip, used for managing serial communication tasks. SST EPROM: Contains firmware/boot logic. Green Terminal Block: For field wiring connections (serial or discrete I/O). LED Indicators: Red and green LEDs for status or activity indication. Compatible with legacy PLC brands like Allen-Bradley, Siemens, or Modicon. Found in older systems requiring direct ISA bus interfacing with dedicated I/O or protocol conversion cards.

Condition: Used

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274975 4.S1.12.4D
