Motrona GV480 Encoder Signal Splitter Distribution Module

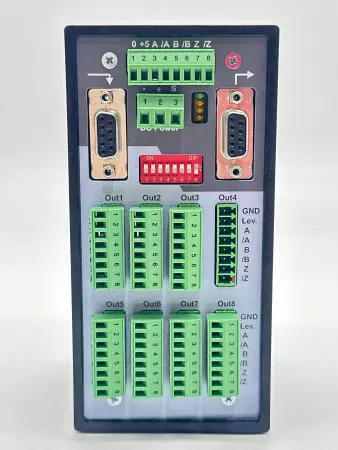

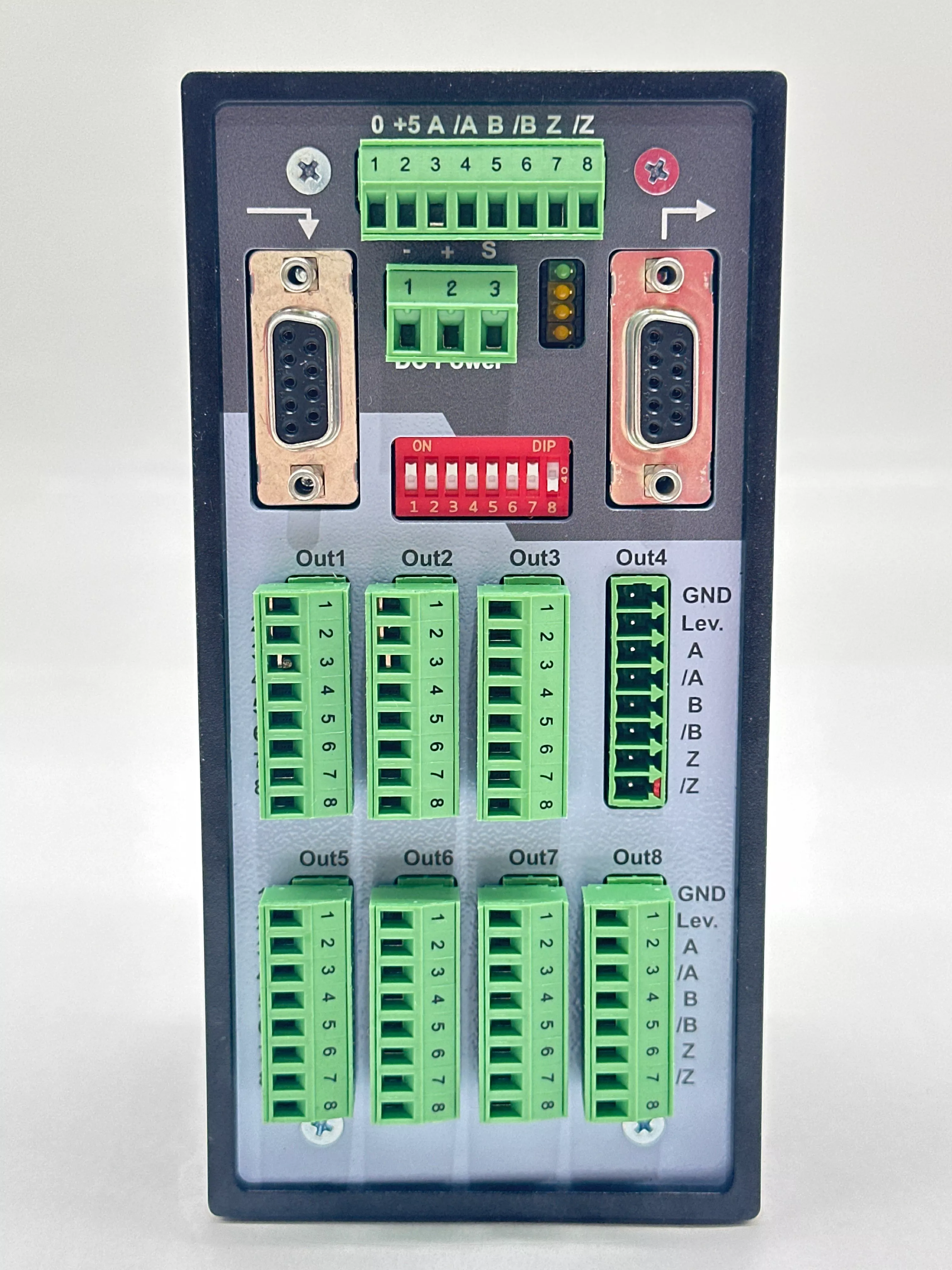

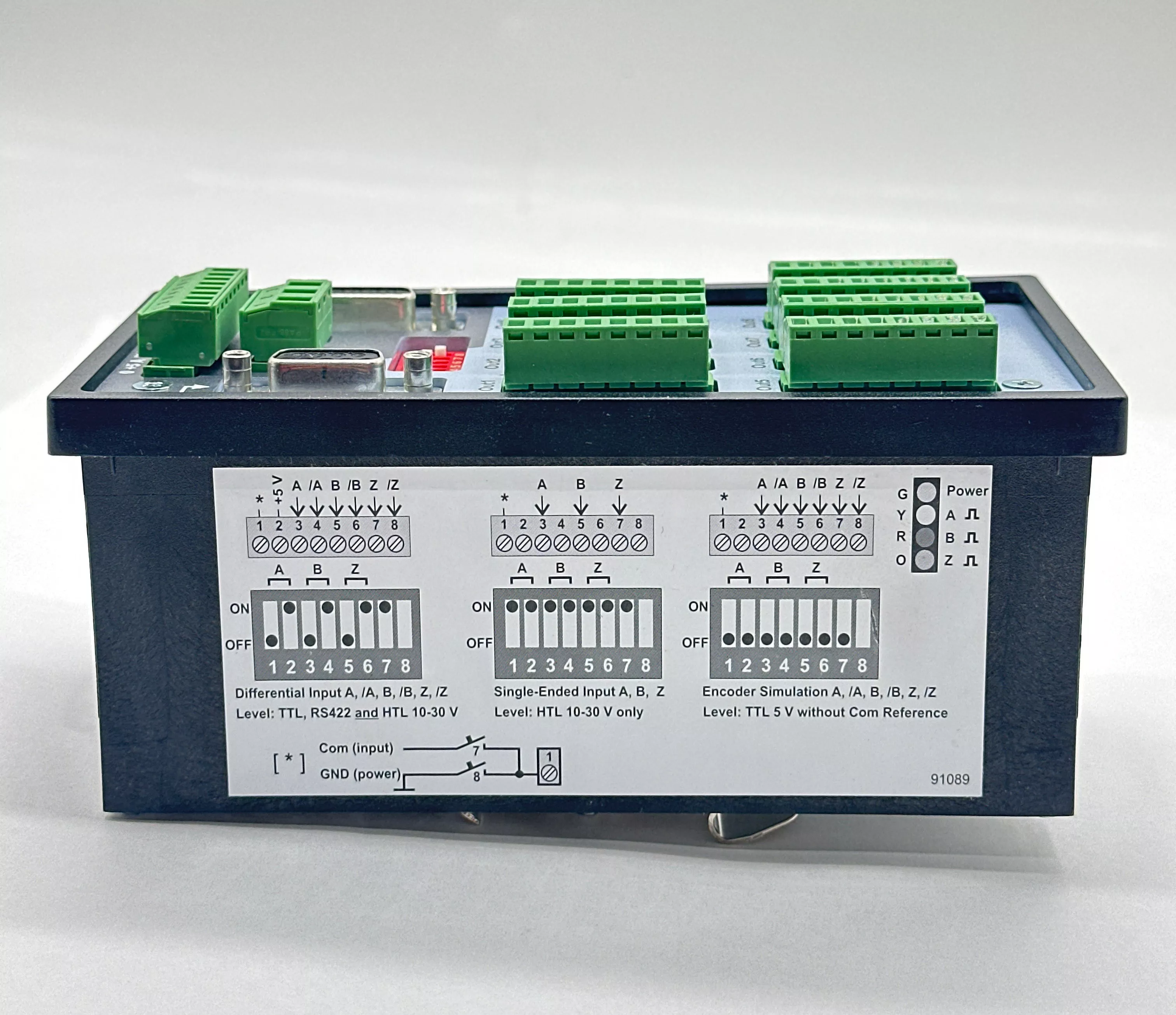

The Motrona GV480 is an encoder signal splitter and distributor module used in motion control and automation systems to replicate encoder signals for parallel use in multiple devices. Brand: Motrona Model: GV480 Type: Encoder Signal Splitter / Distributor Power Supply: 24 VDC Inputs: 1 incremental encoder input (RS422 / TTL or HTL differential signals) Outputs: 8 independent signal outputs (Out1–Out8), each with A, B, Z signals Input Level: TTL/RS422 differential or HTL (configurable via DIP switch) Output Level: TTL (5V), RS422 differential, or HTL (5...30V configurable) Input Frequency: Up to 300 kHz Output Load: Max 20 mA per channel Isolation: Galvanic isolation between input and outputs Connection Type: Pluggable screw terminals, DSUB connectors DIN Rail Mountable: Yes Application: Drives, PLCs, CNCs, speed controllers, industrial automation systems needing duplicated encoder feedback signals Country of Origin: Germany Please review pictures carefully and let us know if you have any questions!
