Festo 9983 Pneumatic Valve VL/O-3-1/2

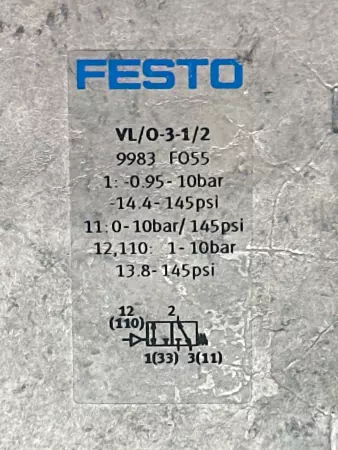

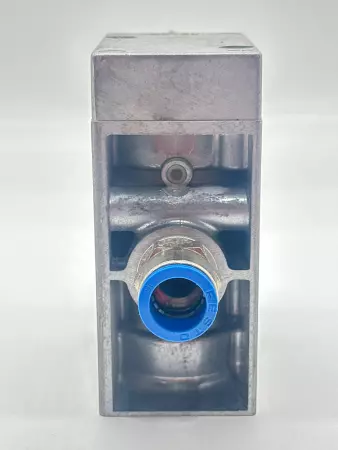

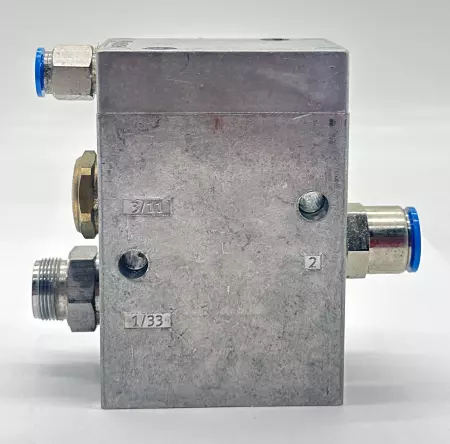

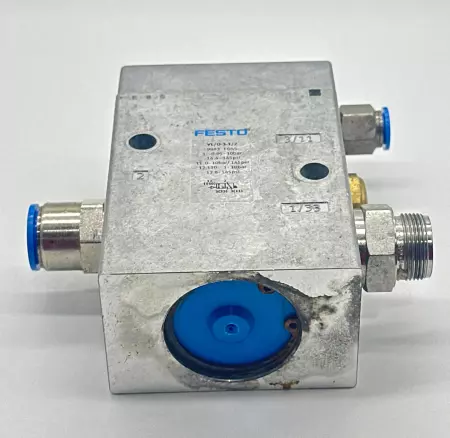

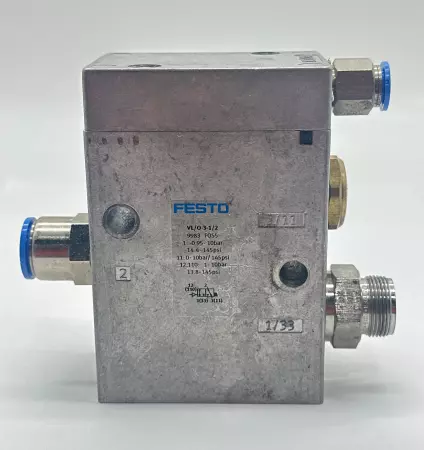

Festo 9983 FO55 VL/O-3-1/2 is a robust pneumatic logic valve used for controlling air pressure and flow in automation systems. It features multiple pressure ports and functions as a shuttle or check valve for air signal routing. Brand: Festo Model: VL/O-3-1/2 Part Number: 9983 FO55 Valve Type: Pneumatic logic valve Port Size: 1/2" Function: Shuttle valve (OR function) Operating Pressure (Port 1): 0.95–10 bar (14.4–145 psi) Operating Pressure (Ports 11, 12): 0–10 bar (0–145 psi for 11; 1–10 bar for 12) Maximum Pressure: 10 bar (145 psi) Mounting: Inline or panel mounting Media: Compressed air, filtered, lubricated or non-lubricated Flow Direction: Based on internal logic—signal present on either 11 or 12 passes to port 2 Body Material: Aluminum Application: Pneumatic control circuits, signal routing, industrial automation systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   275448 4.S5.10.3
