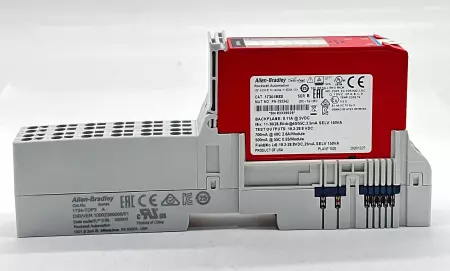

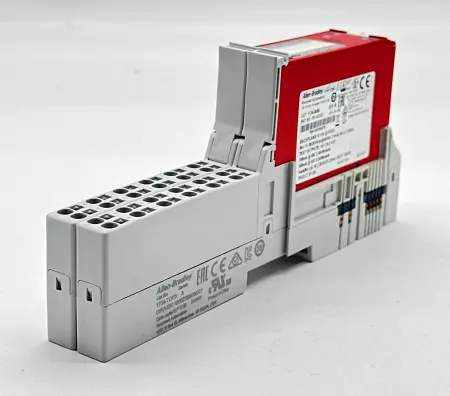

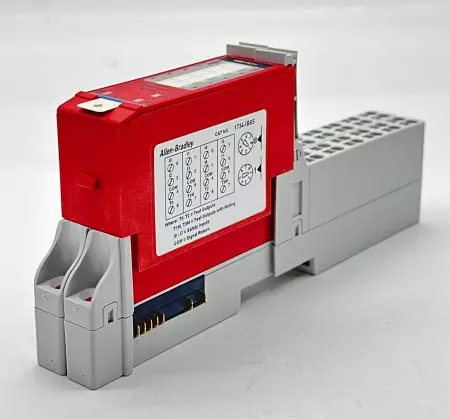

Allen-Bradley 1734-IB8S Digital Safety Input Module W/1734-TOP3 Terminal Base

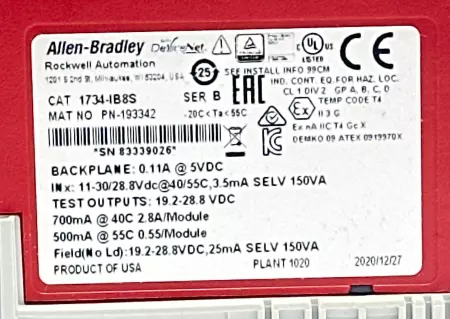

Allen-Bradley 1734-IB8S is a POINT I/O digital safety input module designed for use in distributed safety systems, featuring 8 safety-rated inputs and paired with the 1734-TOP3 terminal base. Brand: Allen-Bradley (Rockwell Automation) Model: 1734-IB8S Series: B Type: Digital Safety Input Module Terminal Base: 1734-TOP3 Inputs: 8 digital inputs Input Voltage Range: 11–30.2VDC Test Output Voltage: 19.2–28.8VDC Input Current: – 700mA @ 40°C, 8A max per module – 500mA @ 55°C, 5A max per module Backplane Current: 0.11A @ 5VDC Field I/O Supply: 19.2–28.8VDC, 25mA SELV: 150V max Temperature Range: -20 to 55°C Certifications: cULus Listed, CE, EAC, ATEX, IECEx Hazardous Location Rating: Class I Div 2, Groups A-D Manufacture Date: 2020/12/27 Country of Origin: USA Application: Safe monitoring of digital input devices such as emergency stops, door switches, and light curtains Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   275459 4.S4.16.3
