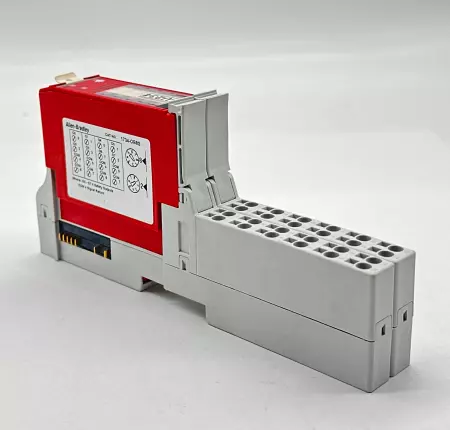

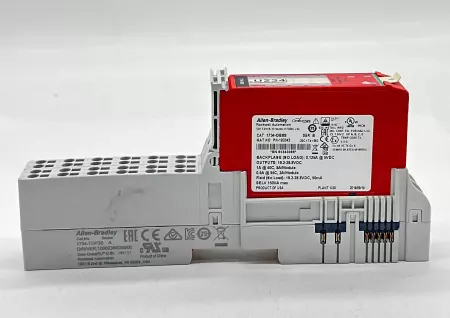

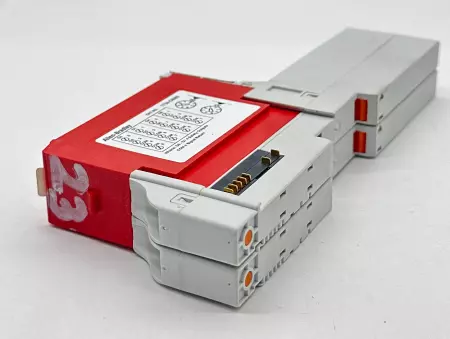

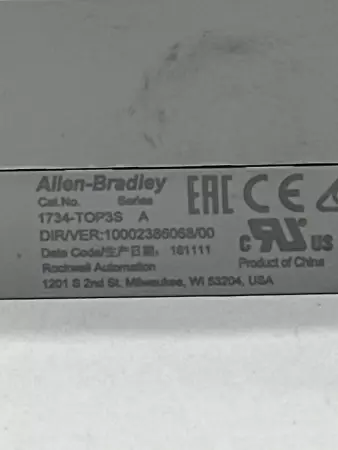

Allen-Bradley 1734-OB8S SER.B I/O Module W/1734-TOP3S Terminal Base

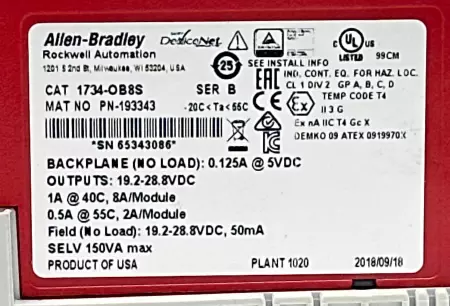

Allen-Bradley 1734-OB8S is a POINT I/O Safety Output Module used in distributed safety I/O systems. It is designed for use with the 1734-TOP3S terminal base. Brand: Allen-Bradley (Rockwell Automation) Model: 1734-OB8S Series: B Type: POINT I/O Safety Output Module Terminal Base: 1734-TOP3S Outputs: 8 digital (sourcing) Output Voltage Range: 19.2–28.8VDC Output Current: – 1A @ 40°C, 8A total per module – 0.5A @ 55°C, 2A total per module Backplane Current (No Load): 0.125A @ 5VDC Field I/O (No Load): 19.2–28.8VDC, 50mA SELV Rating: 150V max Operating Temperature: Up to 55°C Certifications: cULus Listed, ATEX, CE, IECEx, EAC Enclosure Rating: For use in Class I Div 2, Group A, B, C, D hazardous locations Date Code: 2018/09/18 Country of Origin: USA Application: Safety-critical control applications in distributed I/O networks Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   275470 4.S4.16.3
