Eaton HI11-P1/P3/Z Rotary Disconnect Switch

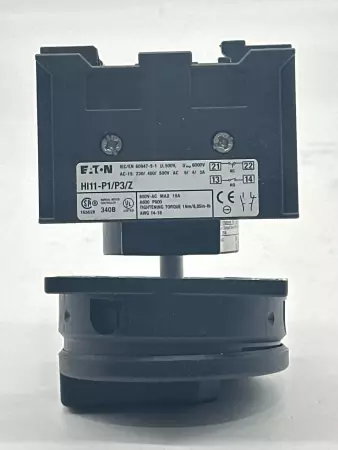

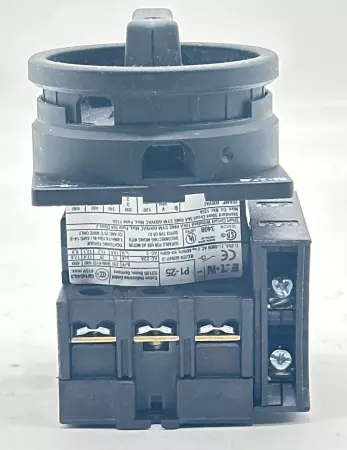

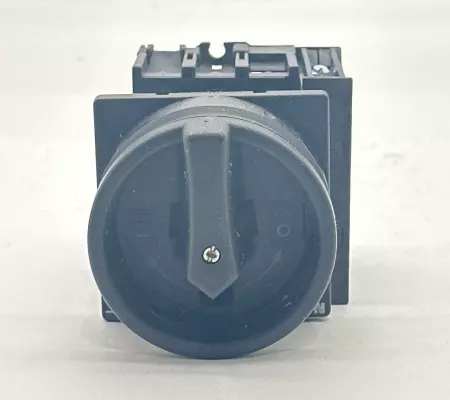

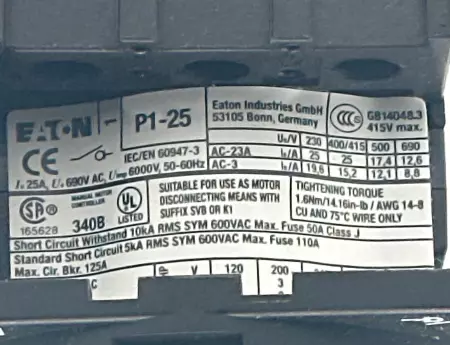

Eaton HI11-P1/P3/Z Rotary Disconnect Switch with a P1-25 base switch, used for safe disconnection of electrical circuits in industrial panels. Brand: Eaton Model: HI11-P1/P3/Z with P1-25 base Type: Rotary Disconnect Switch Base Current Rating: 25A Rated Voltage: 690V AC (Um), 600V AC (UL) Utilization Category: AC-23A, AC-3 AC-23A Ratings (Iᴀ/kW): – 230V: 25A / 5.5kW – 400/415V: 25A / 11kW – 500V: 17.4A / 12.1kW – 690V: 12.6A / 8.8kW Short Circuit Withstand: 10kA RMS SYM, Max Fuse 50A (Class J) Standard Short Circuit: 5kA RMS SYM, Max Fuse 110A Max Circuit Breaker: 125A Auxiliary Contact Ratings (on label 2): – AC-15: 230/400/500V, 6/4/3A Standards: IEC/EN 60947-3, UL Listed, CSA Tightening Torque: 1.6Nm (main), 1Nm (auxiliary) Wire Range: AWG 14–8 (main), AWG 14–18 (auxiliary) Application: Motor disconnecting means, load switching, safety isolation Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275474 4.S4.13.4
