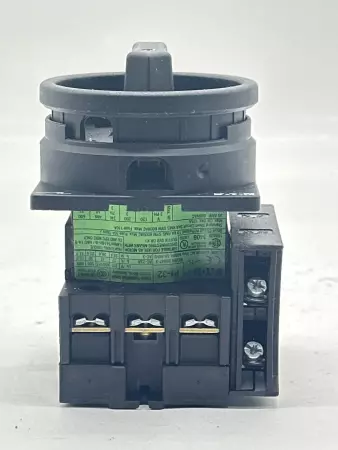

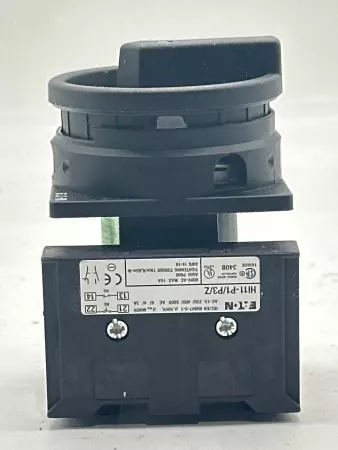

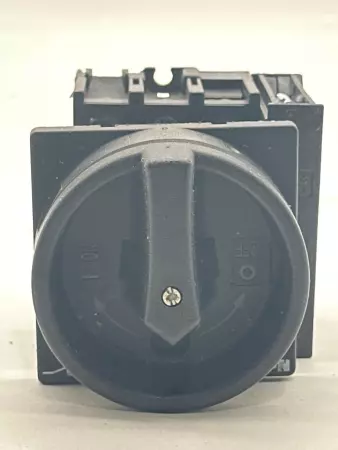

Eaton HI11-P1/P3/Z Rotary Disconnect Switch, 600VAC 30A

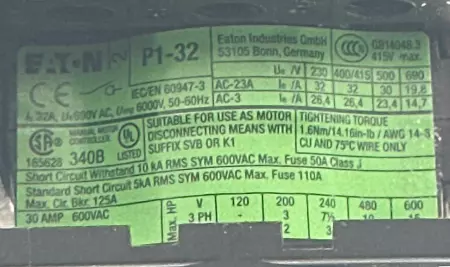

Eaton HI11-P1/P3/Z Rotary Disconnect Switch, commonly used for safely isolating electrical equipment in industrial environments. Brand: Eaton Model: HI11-P1/P3/Z Base Unit: P1-32 Type: Rotary Disconnect Switch Rated Current: 32A Voltage Rating: 690V AC Max Utilization Category: AC-23A (motor switching), AC-20A, AC-21A Breaking Capacity: 10kA RMS Sym @ 600VAC Max Fuse: 50A (Class J), 110A Max Fuse Rating Torque Spec: 1.4–1.6 Nm tightening torque Mounting: Panel mount Standards: IEC 60947-3, UL 508 Application: Motor disconnect, load break switch, safety isolation switch Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275475 4.S4.13.4
