IFM Efector AL1920 IO-Link Master for EtherNet/IP

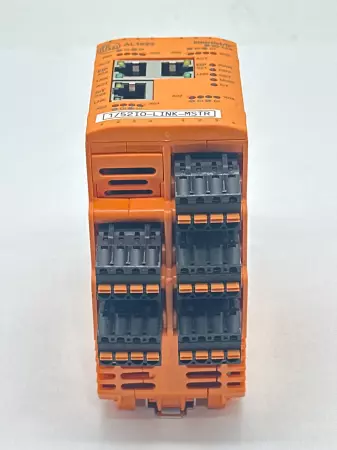

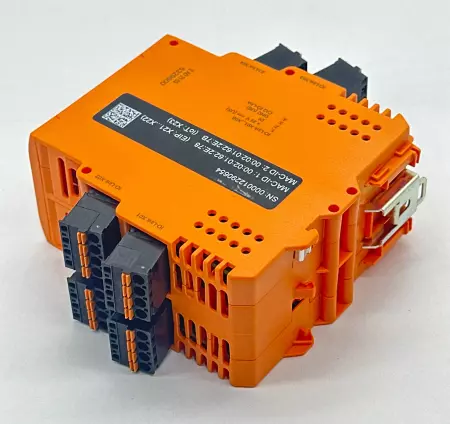

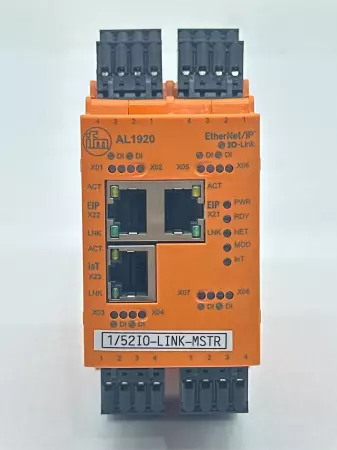

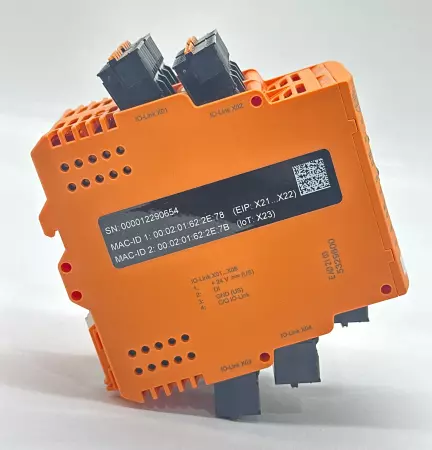

The IFM Efector AL1920 is an IO-Link master module designed for industrial Ethernet networks, allowing smart sensor/actuator communication and integration into higher-level PLC or SCADA systems via EtherNet/IP. Brand: IFM Efector Model: AL1920 Function: IO-Link Master for EtherNet/IP IO Ports: 8 × IO-Link master ports (Class A) Digital Inputs: 16 × DI channels (2 per port, configurable) Communication Protocol: EtherNet/IP Interface: 2 × RJ45 Ethernet ports (X21, X22) Power Supply: 18…30 V DC Current Rating: Max 9 A total for IO ports Status Indicators: LEDs for power, communication, port status Housing: Compact industrial IP67-rated enclosure Mounting: DIN rail Application: Smart sensor and actuator integration, field-level data acquisition, IIoT connectivity, automation diagnostics Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275501 4.S5.10.4
