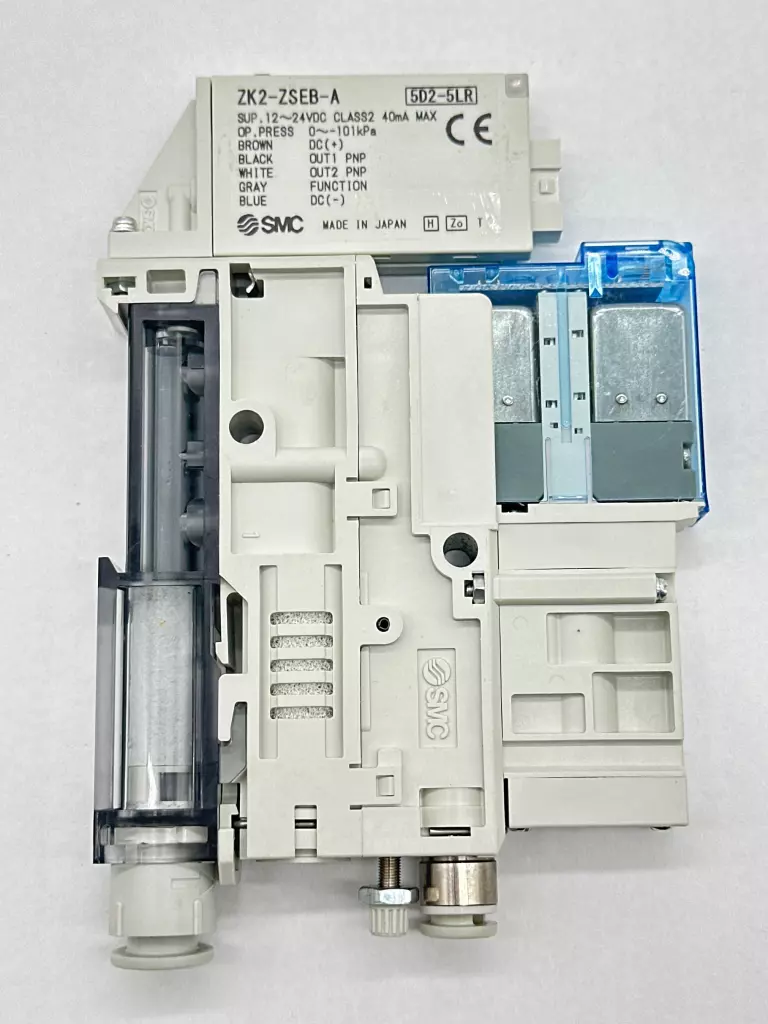

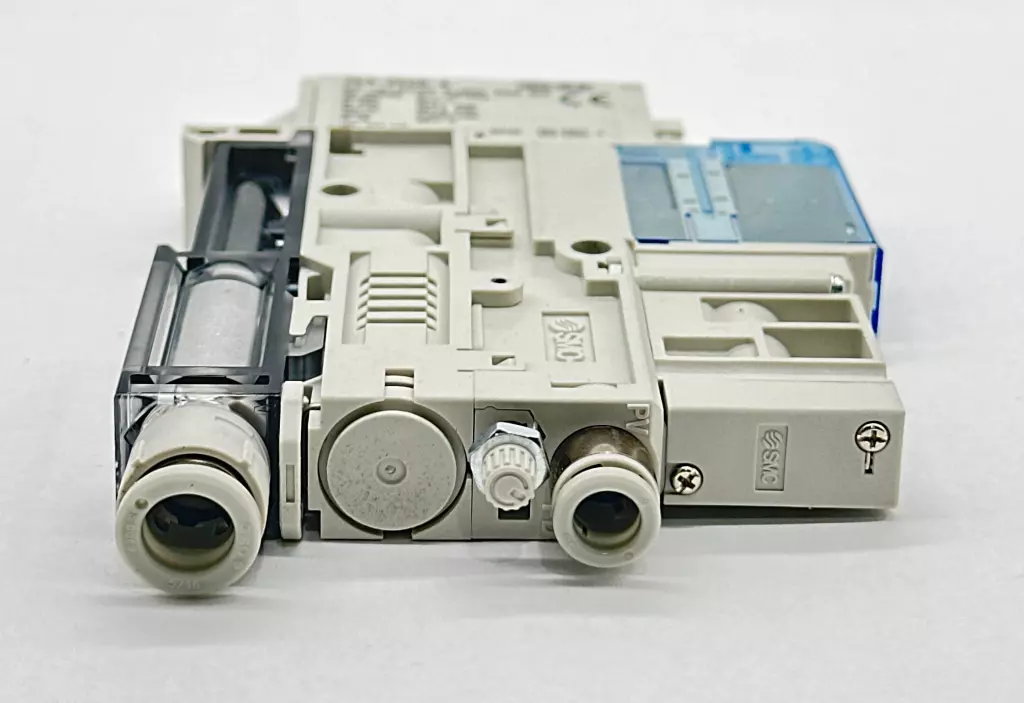

SMC ZK2A10K5CLA-08 Vacuum Ejector W/Valve

SMC ZK2A10K5CLA-08 is a compact vacuum ejector unit integrated with a control valve and sensor, designed for efficient vacuum generation in pick-and-place and robotic automation systems.

Product Name: Vacuum Ejector with Valve

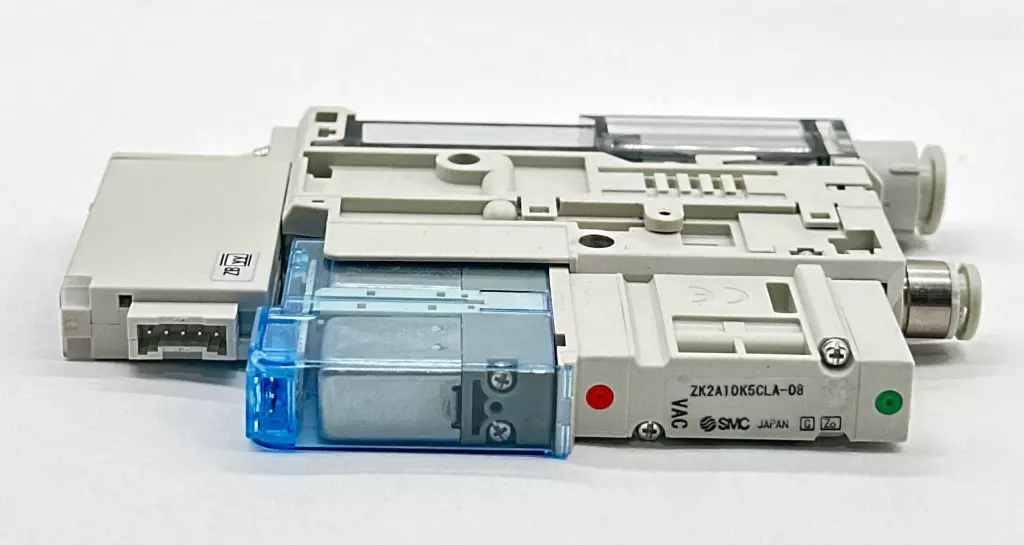

Model Number: ZK2A10K5CLA-08

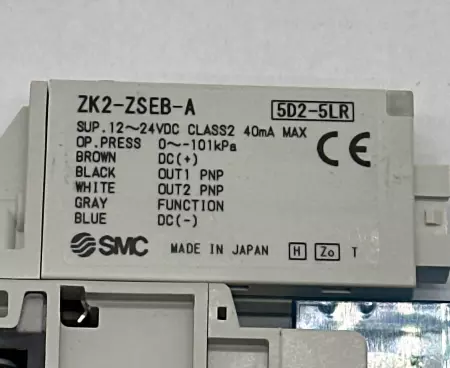

Control Unit Model: ZK2-ZSEB-A
Supply Voltage: 12–24 VDC, Class 2
Current Consumption: Max 40 mA
Operating Pressure Range: 0 to −101 kPa
Output Signals:
Black: OUT1 PNP
White: OUT2 PNP
Gray: Function
Brown: DC (+)
Blue: DC (−)
Vacuum Generation: Venturi effect (integrated nozzle)
Valve Type: Normally closed (NC) solenoid valve
Indicators: LED indicators for valve and vacuum status
Electrical Connection: 6-pin connector
Mounting: Direct or manifold mountable
Features: Energy-saving function, compact design
Country of Origin: Japan Please review pictures carefully and let us know if you have any questions!
