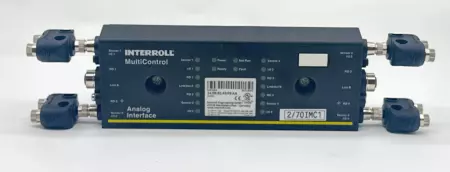

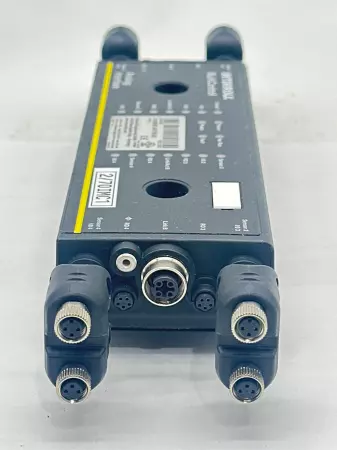

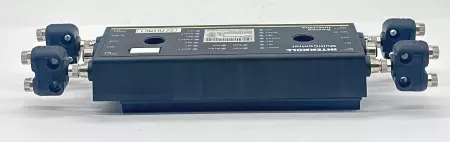

Interroll 1103563 MultiControl Analog Interface For RollerDrive

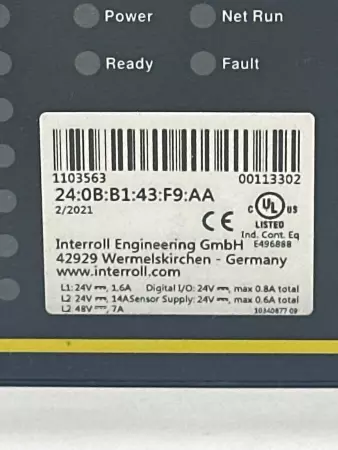

The Interroll MultiControl is a motor control unit designed to manage up to four Interroll RollerDrive EC310/EC5000 drives. This version includes an Analog Interface for flexible communication with PLCs and sensors in conveyor and material handling systems. Technical Specifications: Model: MultiControl Analog Interface Part Number: 1103563 MAC Address: 24:0B:B1:43:F9:AA Manufacturer: Interroll Engineering GmbH Location: Wermelskirchen, Germany Standards: CE, UL (E495888), RoHS compliant Electrical Specifications: Logic Supply Voltage (UL): 24 VDC ±10% Logic Current Consumption: 1.5 A max Digital I/O Voltage: 24 VDC Digital I/O Capacity: Max 0.6 A total Sensor Supply: 24 VDC, max 0.6 A Motor Output: – Up to 4 × EC310/EC5000 drives – Max total output: 14 A shared across 4 channels Fieldbus Support (varies by version): – PROFINET / EtherNet/IP / EtherCAT (selectable per model variant) LED Status Indicators: – Power – Ready – Net Run – Fault Functions: – Controls speed, direction, acceleration, and deceleration of RollerDrives – Integrated diagnostics and protection – Analog and digital I/O for sensors and actuators – Simplified fieldbus integration Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   275524 4.S5.12.4
