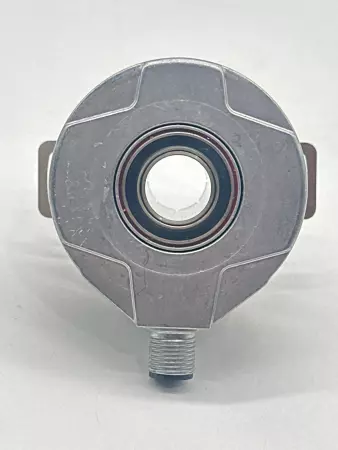

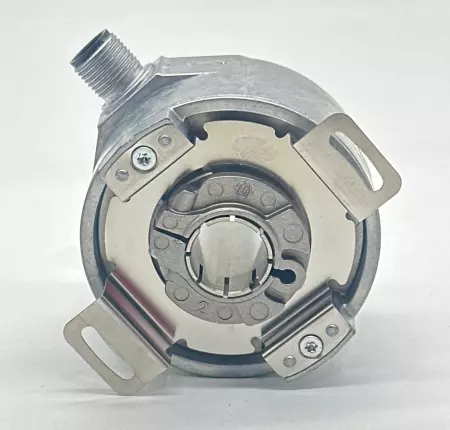

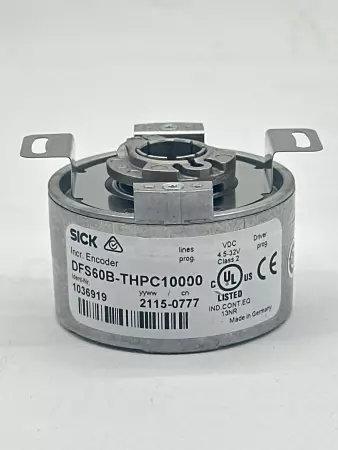

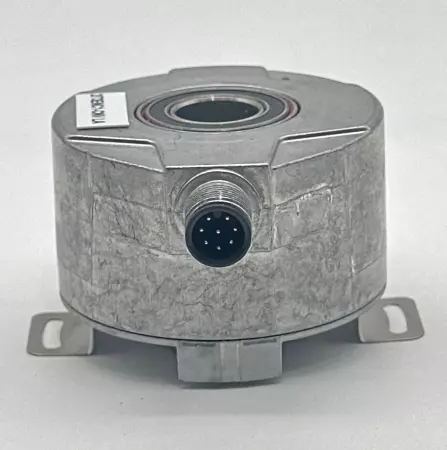

Sick DDS60B-THPC10000 Incremental Encoder

Heavy-duty industrial incremental rotary encoder from the SICK DDS60 series. Designed for motion control and speed feedback applications in automation, robotics, and material handling systems. Technical Specifications: Model: DDS60B-THPC10000 Series: DDS60 Encoder Type: Incremental Shaft Type: Solid shaft Shaft Diameter: 10 mm Flange Type: Clamping flange (standard) Resolution: 10,000 pulses per revolution (PPR) Electrical Interface: TTL/RS-422 (differential line driver) Supply Voltage: 4.5 to 32 VDC Max Output Frequency: Typically up to 300 kHz Output Channels: A, B, and Z (index pulse), with complementary signals (A/, B/, Z/) Connection Type: Radial cable outlet or connector (depending on variant) Housing Material: Aluminum Shaft Material: Stainless steel Protection Class: – Housing: IP65 – Shaft: IP64 with shaft seal Max Shaft Load: – Axial: ≤ 40 N – Radial: ≤ 60 N Operating Temperature: –20°C to +85°C Storage Temperature: –40°C to +100°C Max Rotational Speed: Up to 6,000 rpm Weight: Approx. 350–450 g Standards: CE, RoHS compliant Manufacturer: SICK AG Made in: Germany Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275525 4.S6.11.3
