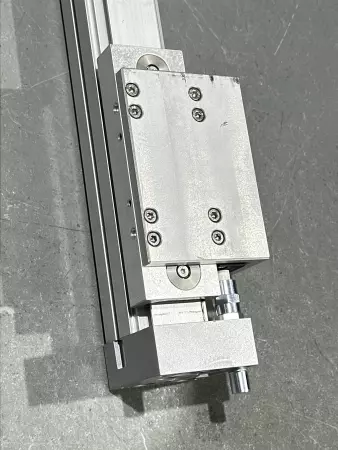

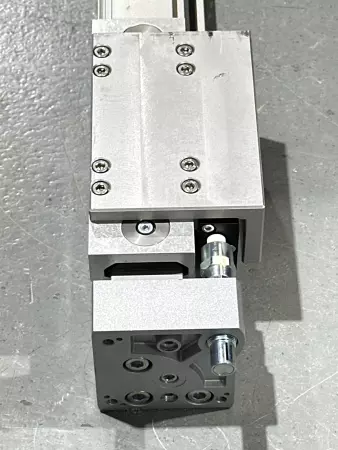

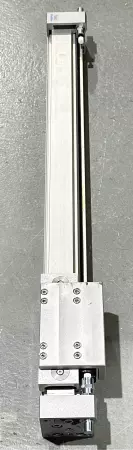

Festo 532448 Linear Drive, 32mm Piston Dia 550mm Stroke

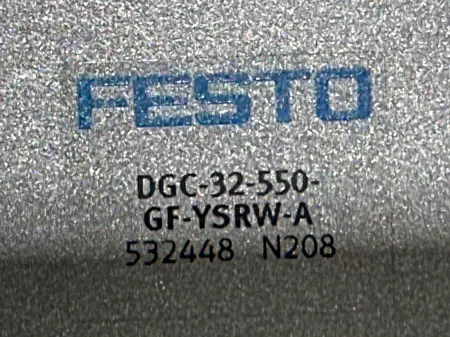

Precision-guided pneumatic linear actuator from the Festo DGC series, designed for high-performance automation tasks requiring smooth, guided linear motion. Technical Specifications: Model: DGC-32-550-GF-YSRW-A Part Number: 532448 Series: DGC Piston Diameter: 32 mm Stroke Length: 550 mm Type: Pneumatic guided drive with integrated guide Guide Type: GF = Recirculating ball bearing guide (high load and torque capacity) Cushioning: YSRW = Self-adjusting pneumatic cushioning at both ends Mounting: T-slot or foot-mounted (accessories available) Piston Rod: Integrated (rodless cylinder design) Port Type: G1/8" (standard for DGC-32 series) Operating Pressure: 1 to 8 bar (14.5 to 116 psi) Max Speed: Up to 3 m/s (application dependent) Load Capacity: High load resistance due to guide (suitable for handling units) Repeatability: ±0.1 mm Ambient Temperature Range: -10°C to +60°C Sensor Slots: Integrated grooves for SME/SMT magnetic sensors Material: Anodized aluminum body, steel guide components Manufacturer: Festo AG & Co. KG Made in: Germany Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   8.00

Depth:   12.00

Length:   12.00

Width:   24.00

SKU:   275530 4.S6.7.1
