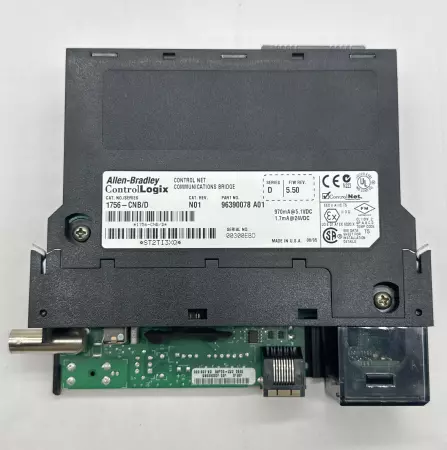

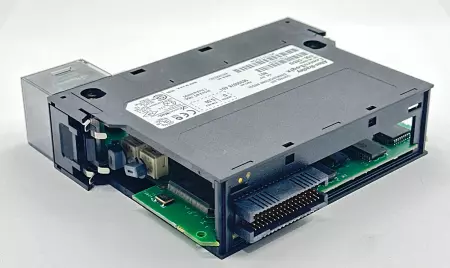

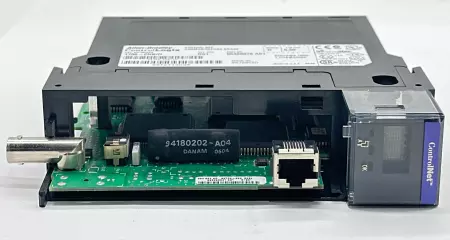

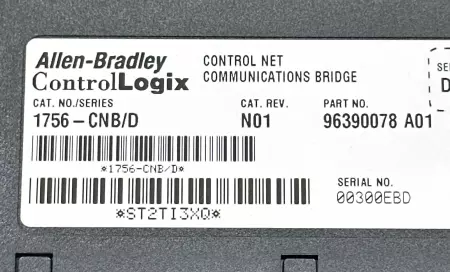

Allen-Bradley 1756-CNB/D Control Net Communications Bridge Mod. No Front Cover

ControlNet communication interface module for ControlLogix systems, designed to enable high-speed deterministic data exchange between controllers and distributed I/O devices across a ControlNet network. Model: 1756-CNB Series: D Type: ControlNet Communication Bridge Module Network Support: ControlNet (IEC 61158 Type 2) Communication Rate: 5 Mbps Media Type: Coaxial RG-6 or fiber optic (via adapters) Max Nodes: 99 (per ControlNet segment) Chassis Compatibility: 1756 ControlLogix chassis 1 PORT SINGLE COAXIAL MEDIA 64 CONNECTION 24 VDC Backplane Current Draw: 450 mA at 5.1 V DC Status Indicators: Module status, network status, and communication activity LEDs Connector Type: BNC (dual coax ports for ControlNet A and B channels) Redundancy: Supports media redundancy (A/B channel) Configuration: Via RSLogix 5000 / Studio 5000 Logix Designer Operating Temperature: 0°C to +60°C Application: Distributed control systems, real-time I/O, and inter-controller communication Standards: UL Listed, cUL Certified, CE Marked, and ControlNet Conformance Class compliant Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   275549 4.S2.12.2F
