Wago 789-552 Relay Module

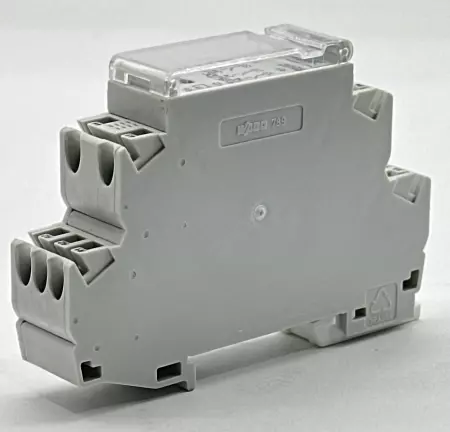

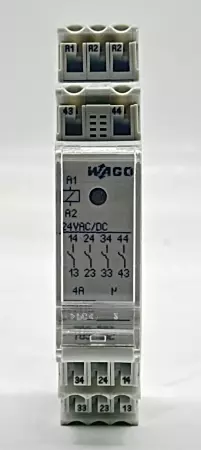

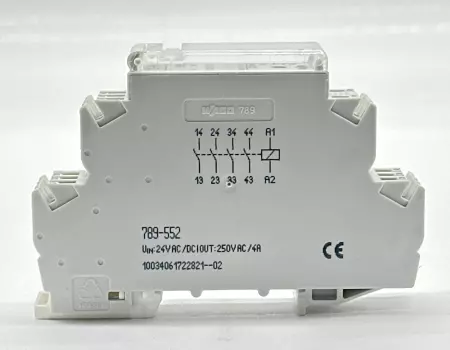

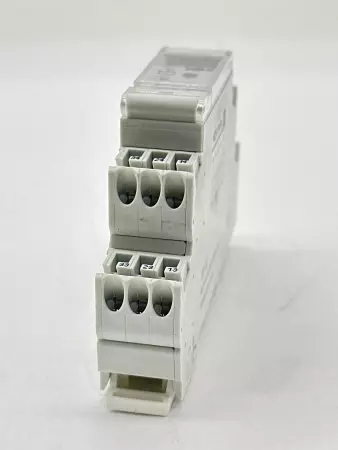

Wago 789-552 is a compact relay module designed for interfacing control signals with power circuits in automation and electrical systems. It features 4 make (normally open) contacts and is suitable for switching low-voltage loads with reliable status indication. Model: 789-552 Type: Relay Module Nominal Input Voltage: 24 V AC/DC Contact Configuration: 4 Make Contacts (Normally Open – SPST) Limiting Continuous Current: 4 A Coil Power: 24 V control circuit activation Status Indicator: Red LED (indicates relay activation) Connection Cross-Section: Up to 2.50 mm² (solid or stranded wire) Module Width: 18 mm Mounting: DIN rail mountable Contact Material: AgNi (Silver-Nickel, typical for Wago relays) Application: Signal switching, PLC interfacing, building automation, industrial control Manufacturer: WAGO Kontakttechnik GmbH Made In: Germany This relay module is well-suited for compact control cabinets and offers reliable switching with visual confirmation through its integrated LED indicator. Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275553 4.S3.3.3A
