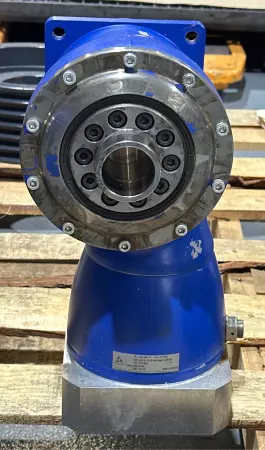

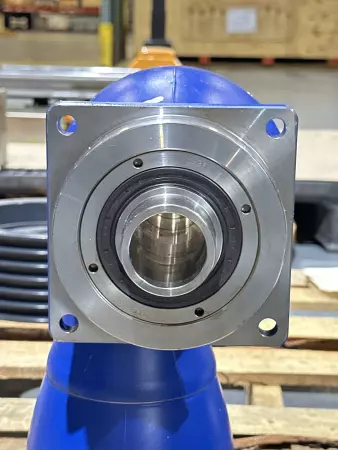

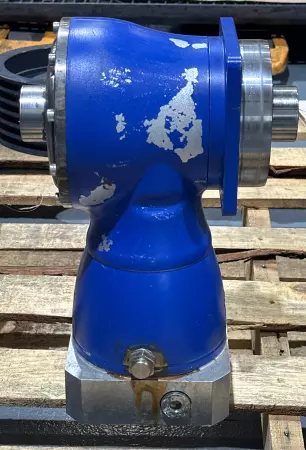

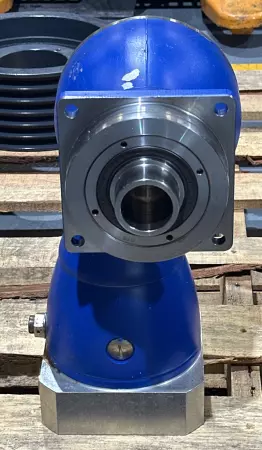

Alpha Wittenstein HG+140S-MF1-5-6K1-1K Right Angle Gear Reducer, Ratio: 5:1

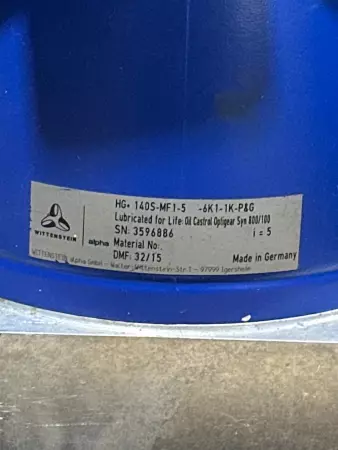

Alpha Wittenstein HG+140S-MF1-5-6K1-1K is a high-performance right-angle planetary gear reducer from the HG+ series by Wittenstein Alpha. These gearboxes are known for their compact design, high torque density, and low backlash, optimized for servo-driven automation and robotics. Model: HG+140S-MF1-5-6K1-1K Series: HG+ (High Precision Hypoid Gearbox) Gear Type: Right-angle hypoid planetary gearbox Frame Size: 140 mm Mounting Style: MF1 (Motor flange – front-mounted input) Reduction Ratio: 5:1 Backlash: – Typically ≤ 3 arcmin (precision grade) Output Shaft: – Solid shaft (6K1 = Keyed output shaft, standard DIN 6885) Input Type: Motor flange with flexible motor mounting (custom adapter) Lubrication: Lifetime-lubricated (maintenance-free) Mounting Position: Any (universal orientation) Efficiency: Up to 96–97% Torque Capacity: – Nominal Torque: Approx. 450–600 Nm (depending on duty cycle) – Peak Torque: Higher (short duration) Casing Material: High-strength aluminum housing Application Areas: – Robotics and automation – Packaging machinery – CNC and machine tools – Conveyor drive systems Brand: Wittenstein Alpha Made In: Germany Certifications: CE compliant, RoHS conform, ISO 9001 manufacturing

Condition: Used

Weight:   55.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   275647 4.R1.6.2
