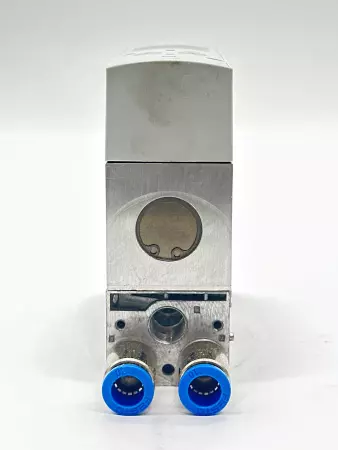

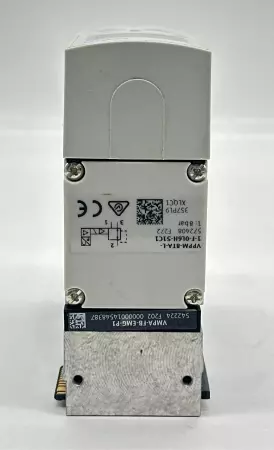

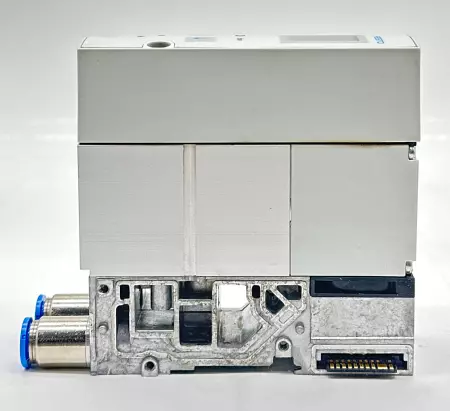

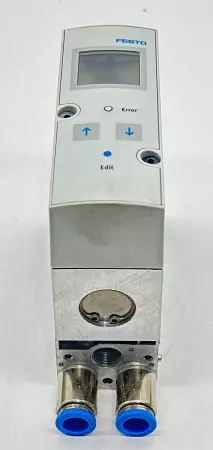

Festo 572408 & 542224 Pressure Regulator W/Electrical Valve

This Festo assembly combines a precision pressure regulator (part 542224) with an electrically actuated on/off valve (part 572408), designed for integration in pneumatic control systems requiring accurate pressure management and remote activation. Regulator Part Number: 542224 Regulator Model: LRP-1/4-4 Port Size: G1/4 Regulating Pressure Range: 0.5 to 7 bar (7.25 to 101.5 psi) Max Operating Pressure: 10 bar (145 psi) Flow Rate: 800 l/min Control Knob: Lockable Mounting Type: Inline or bracket mount Temperature Range: -10°C to +60°C Media: Compressed air, filtered (lubricated or unlubricated) Valve Part Number: 572408 Valve Model: VSNC-FC-M52-MD-G14-F8 Port Size: G1/4 Valve Type: Solenoid actuated, 5/2 way Operating Voltage: 24 VDC Actuation Type: Electrical Operating Pressure: 2 to 10 bar (29 to 145 psi) Flow Rate: Up to 1,100 l/min Electrical Connection: Plug connector, M12 Manual Override: Detenting Protection Class: IP65 Mounting Position: Any Temperature Range: -5°C to +50°C Media: Compressed air per ISO 8573-1:2010 [7:4:4] Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   275649 4.S5.6.2
