Festo 539161 W/ 541063 Solenoid Valve and Sub-Base Assy

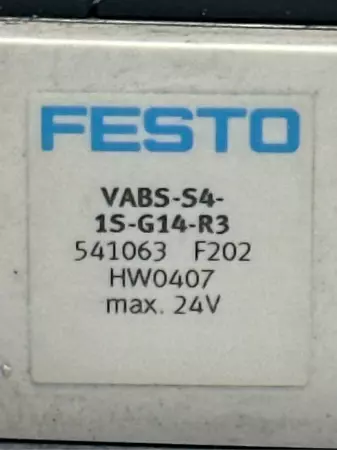

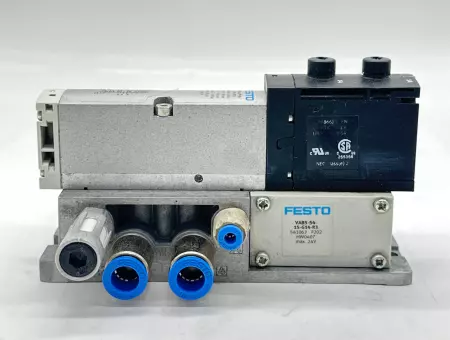

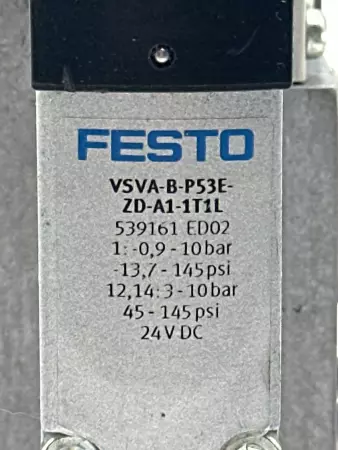

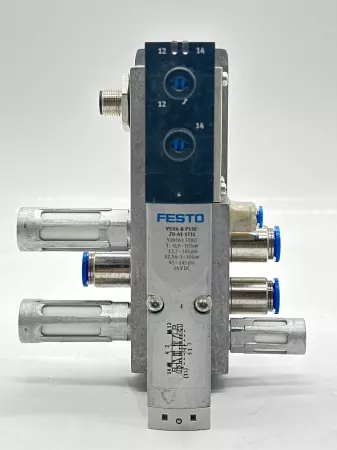

This assembly includes a Festo 5/3-way solenoid valve (539161) with mid-position exhausted configuration and a matching sub-base (541063). Designed for modular pneumatic systems, it supports external pilot air supply and is suitable for high-cycle industrial automation applications. Solenoid Valve Part Number: 539161 Valve Type: 5/3-way Mid Position: Exhausted Actuation: Solenoid, electrically actuated Coil Voltage: 24 VDC Construction Width: 26 mm Surge Resistance: 0.8 kV Operating Pressure Range: -0.9 to 10 bar Temperature Range: -5 to +50 °C Protection Class: IP65 Material: Die-cast aluminium Mounting: On sub-base Flow Direction: Reversible depending on circuit configuration Sub-Base Part Number: 541063 Base Type: Pneumatic sub-base for valve mounting Construction Width: 26 mm Pilot Supply: External pilot air supply port Operating Pressure Range: -0.9 to 10 bar Temperature Range: -5 to +50 °C Material: Die-cast aluminium Mounting Style: Modular rail or panel mount compatible Application: Supports integrated wiring and air connections for 26 mm wide valve series Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   275650 4.S5.6.2
