In stock 1 available

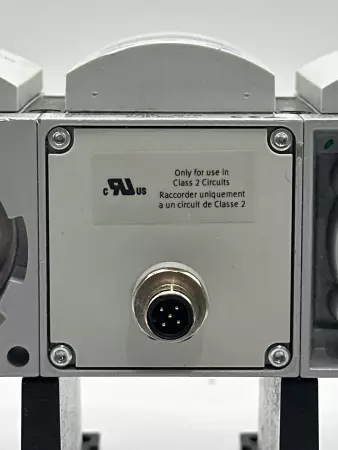

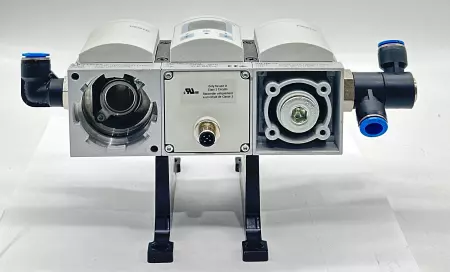

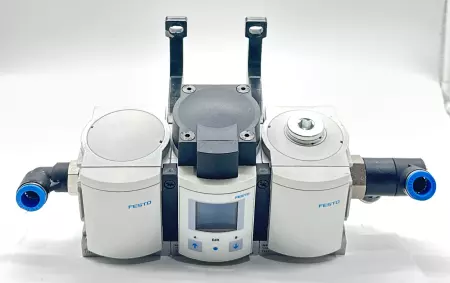

This assembly integrates a compressed air filter, a flow sensor, and a branch module into a compact pneumatic conditioning and monitoring system. Designed for inline installation, it ensures air quality, monitors consumption, and distributes flow in automated pneumatic circuits. Filter Part Number: 529613 Model: LF-D-MIDI Function: Compressed air filter Port Size: G1/4 Filtration Grade: 40 µm (standard) Operating Pressure: 0.3 to 12 bar Flow Rate: Up to 1500 l/min Drain Type: Semi-automatic or manual Bowl Material: Polycarbonate with metal bowl guard Mounting: Wall or panel mount with brackets Flow Sensor Part Number: 64940 Model: SFAB-200U-HQ8-2SA Function: Compressed air flow sensor Flow Range: 0 to 200 l/min Output Signal: 2x switching outputs (PNP) Supply Voltage: 24 VDC Electrical Connection: M8 3-pin Mounting: Inline with QS-8 push-in fittings Repeatability: ±0.5% of full scale Protection Class: IP40 Media: Dry, non-lubricated compressed air Branch Module Part Number: 529853 Model: VABF-S4-1R-G18-PP Function: Pneumatic distribution manifold (branch module) Ports: 4x G1/8 outlets Main Inlet: G1/8 Material: Polymer body with metal inserts Operating Pressure: -0.9 to 10 bar Temperature Range: -5°C to +50°C Mounting: Inline or manifold-compatible Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 8.00
Depth: 5.00
Length: 9.00
Width: 12.00
SKU: 275652 4.S6.8.3
