Euchner CET3-AR-CRA-CH-50X Safety Switch PN 110114

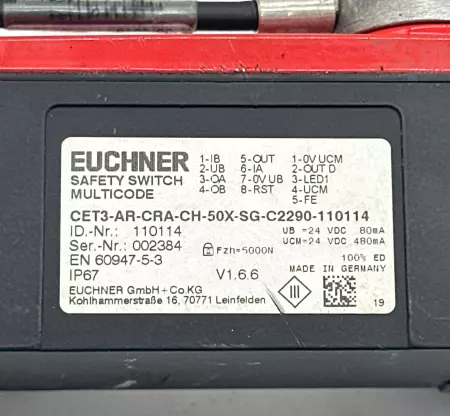

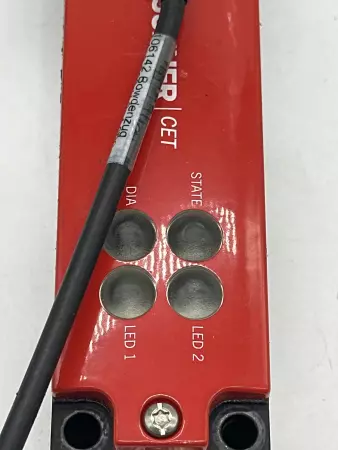

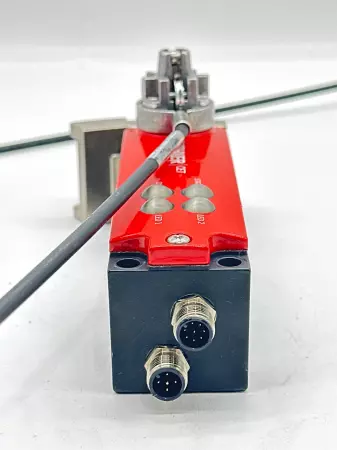

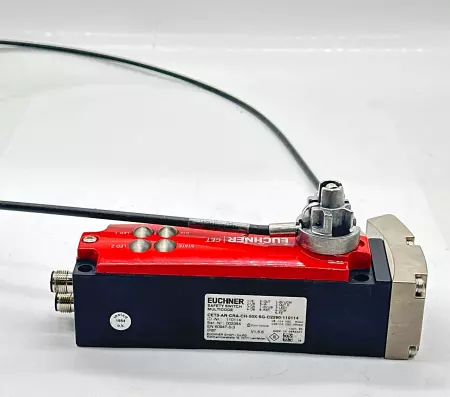

The Euchner CET3-AR-CRA-CH-50X is a coded electronic safety switch with guard locking, designed for use in machine safety applications. It offers high coding levels with multicode capability and integrates with AR (Advanced Relay) technology for series wiring of up to 20 devices. Part Number: 110114 Model: CET3-AR-CRA-CH-50X-SG-C2290 Switch Type: Safety switch with guard locking and multicode RFID transponder Coding: Multicode (accepts any actuator) Locking Principle: Power-to-lock Guard Locking Force: Fzh = 5000 N Supply Voltage: 24 VDC ±10% Current Consumption: 80 mA (locked), 480 mA (unlocking pulse) Outputs: 2 safety outputs (semiconductor), 2 monitoring outputs Connection: M12, 8-pin connector Protection Class: IP67 Standards: EN ISO 14119, EN 60947-5-3 Housing Material: Thermoplastic and metal Mounting: Universal mounting orientation Operating Temperature: –25°C to +55°C Status Indication: LED indicators for status and diagnostics Software Version: V1.6.6 Certifications: CE, TÜV, cULus, Made in Germany Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   275653 4.S1.1.3
