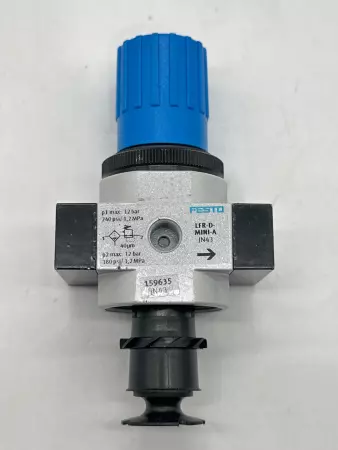

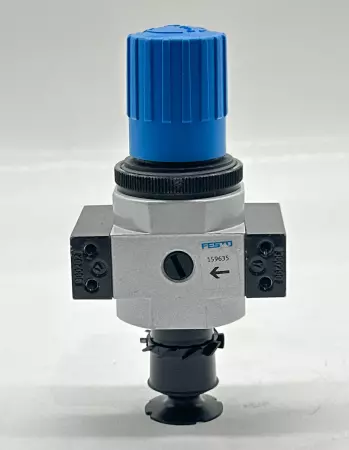

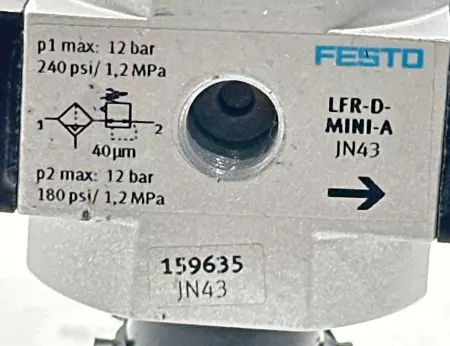

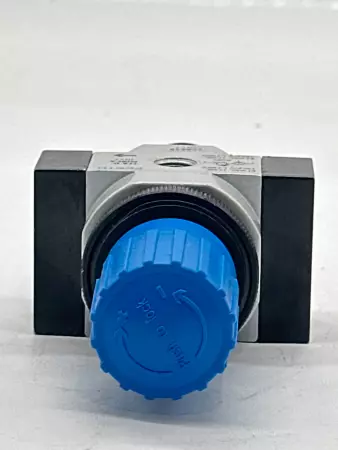

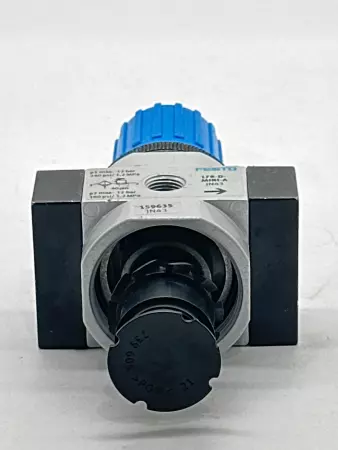

Festo LFR-D-MINI-A Basic Valve (No Filter Housing)

The Festo LFR-D-MINI-A is a compact, high-performance air preparation unit from the LFR MINI series. It combines pressure regulation and filtration in a single unit, making it ideal for pneumatic systems requiring clean and controlled compressed air. Model: LFR-D-MINI-A Series: LFR MINI Manufacturer: Festo Type: Filter Regulator (Basic Valve) Control Element: Rotary knob with detent Filtration Rating: 40 microns Drain Type: Fully automatic condensate drain Bowl Volume: 22 mL max. Pressure Range: 1.9 to 12.4 bar Flow Rate: 3337 l/min Housing Material: Die-cast zinc Port Size: Typically G1/4 or G1/8 (confirm per variant) Application: Pneumatic control circuits, automation systems, air preparation units Part Number: 546433 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275656 4.S4.10.3C
