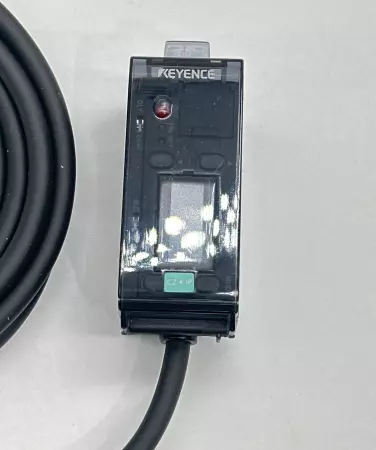

Keyence CZ-K1P Fiberoptic Sensor/Amplifier Unit

The Keyence CZ-K1P is a compact digital fiberoptic sensor amplifier unit designed for use with CZ-series fiber heads. It provides reliable color-based detection and is suitable for integration in high-speed automation and inspection systems. Model: CZ-K1P Type: Digital Fiberoptic Sensor Amplifier Output Type: PNP open-collector Output Capacity: 50 mA max (30 VDC or less) Power Supply Voltage: 12 to 24 VDC ±10%, ripple (P-P) 10% or less Light Source: RGB LED (Red, Green, Blue selectable) Display: Digital 7-segment + status indicators Response Time: 240 µs (typical) Control Modes: Color detection, mark detection, differentiation Sensitivity Adjustment: Manual and automatic threshold setting Interface: One-touch teaching and tuning buttons Protection Circuit: Reverse polarity protection, overcurrent protection Mounting: DIN rail mount Cable: Integrated or connector type (depending on sub-model) Enclosure Rating: IP40 (amplifier body) Ambient Operating Temperature: -10°C to +55°C Material: Flame-retardant resin housing Application Compatibility: Works with CZ-series fiber optic heads (e.g., CZ-H32, CZ-H35, etc.) Manufacturer: Keyence Corporation This unit is ideal for high-speed detection tasks that require distinguishing between fine color differences or registration marks, especially when paired with high-precision fiber optic heads. Please review pictures carefully and let us know if you have any questions!

Condition: New

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   275752 4.S1.15.8
