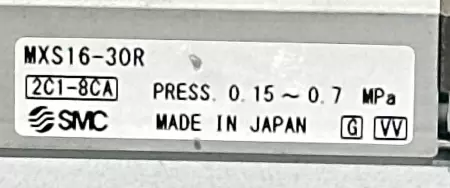

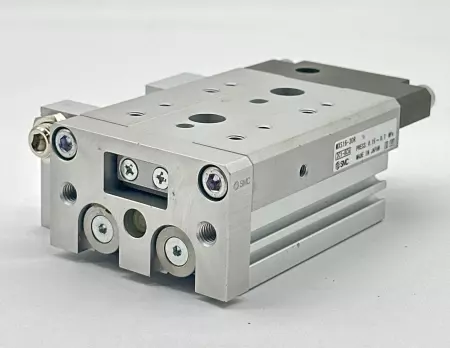

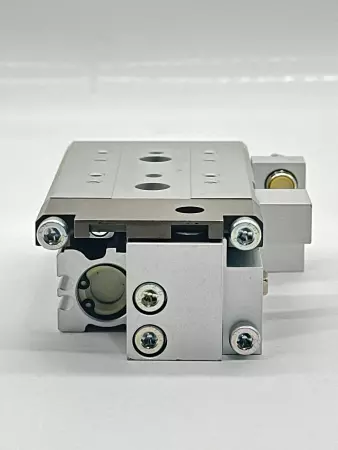

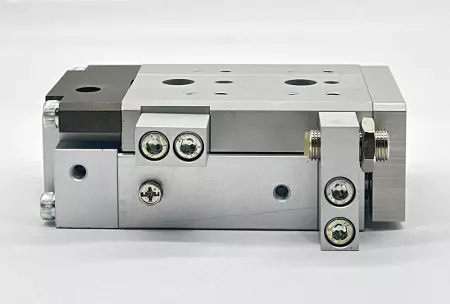

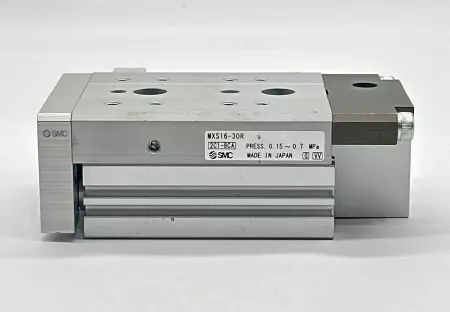

SMC MXS16-30R is a compact slide table pneumatic actuator designed for precise linear motion in automated systems. It integrates a double-acting air cylinder and precision linear guide for enhanced rigidity and accuracy. Model: MXS16-30R Manufacturer: SMC Corporation Series: MXS Type: Slide Table Pneumatic Cylinder Bore Size: 16 mm Stroke Length: 30 mm Action: Double Acting Port Size: M5 x 0.8 Mounting: Through-hole and tapped mounting Cushion: Rubber bumpers Piston Speed: 50 to 500 mm/s Operating Pressure Range: 0.15 to 0.7 MPa Proof Pressure: 1.05 MPa Ambient and Fluid Temperature: -10°C to +60°C Repeatability: ±0.01 mm Maximum Load (Horizontal): Approx. 3.6 kg (varies by orientation and speed) Guide Type: Precision linear guide with integrated slide bearing Weight: ~430g (varies slightly with options) Application: Pick-and-place units, precision assembly, testing fixtures, and automation systems requiring compact linear motion with accuracy and repeatability. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 5.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 275756 4.S3.2.4
