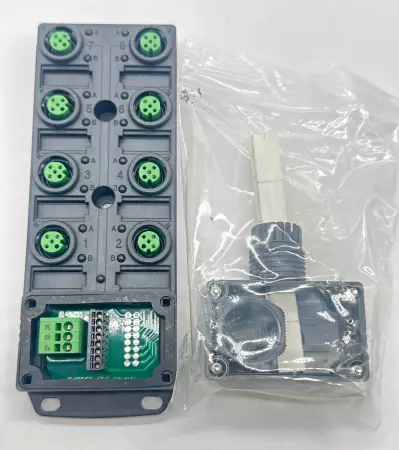

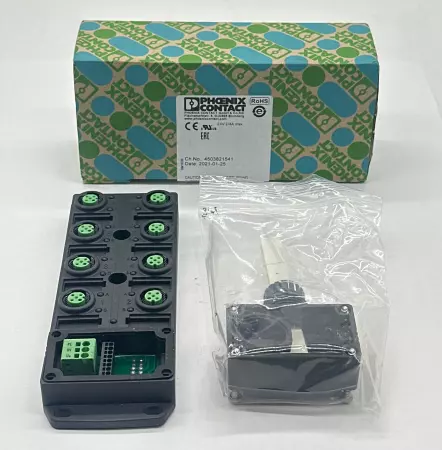

Phoenix Contact SACB-8/8-L-SC SCO P 8-Slots Sensor/Actuator Connection Box

Phoenix Contact SACB-8/8-L-SC SCO P is a robust and compact 8-slot sensor/actuator connection box designed for field installation. It simplifies wiring in decentralized automation systems, offering quick connection through M12 sockets and a pre-assembled master cable. Number of slots: 8 sensor/actuator positions Socket type: M12, A-coded Pin configuration per socket: 5-pole Operating voltage: 24 V DC Rated current per slot: 4 A Total current: max. 12 A Connection to controller: Fixed cable with open cable end Cable length: typically 5 m (model dependent) Cable type: PUR, halogen-free, oil resistant Protection degree: IP65/IP67 Housing material: TPU (thermoplastic polyurethane) Status indication: LED for each slot (green for power, yellow for signal) Mounting: Screw mounting, rear or side Ambient temperature: -25 °C to +80 °C Shielding: Unshielded Typical applications: I/O distribution in machines, sensors, and actuators in harsh industrial environments Please review pictures carefully and let us know if you have any questions!

Condition: New – Open box

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   275768 4.S3.2.3
