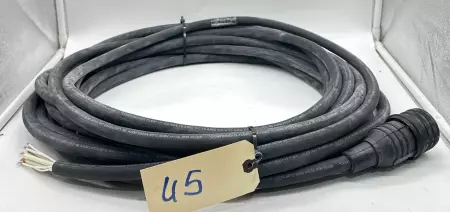

Flex-Cable FC-1326-CPC1T-L-10221-E050 Motor Power and Signal Cable, 45Ft

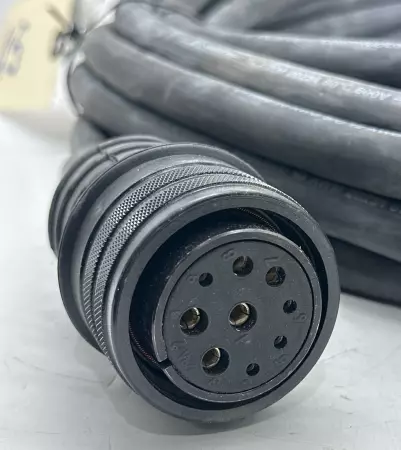

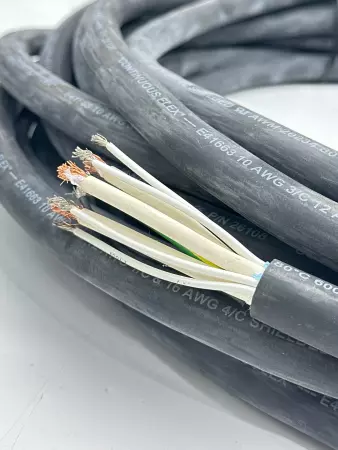

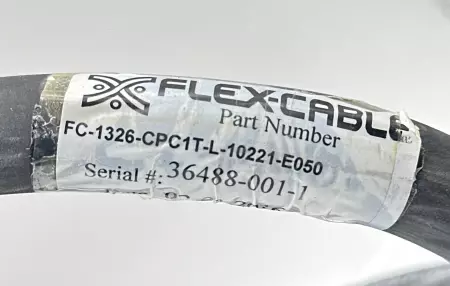

Flex-Cable FC-1326-CPC1T-L-10221-E050 Motor Cable is a shielded, continuous-flex power and signal cable designed for dynamic motion applications such as servo motor connections. The cable features high-flex insulation and robust strain relief, with an overmolded circular connector on one end and free conductors on the other. Cable type: Motor power/signal hybrid cable Length: 45 feet (13.7 meters) Part number: FC-1326-CPC1T-L-10221-E050 Marking: "CONTINUOUS FLEX" E41663 AWM 20234 80°C 600V Conductor size: 10 AWG (3 conductors), 12 AWG (1 conductor), 16 AWG (4 conductors) Shielding: Overall braid shield for EMI protection Temperature rating: 80 °C Voltage rating: 600 V Jacket material: Thermoplastic elastomer (TPE), black Flex rating: Continuous motion (drag chain rated) Connector end: Circular power connector (7-pin, CPC-style) Free end: Stripped and tinned wire leads Certifications: UL AWM E41663, CE compliant Application: Servo motor drives, CNC machinery, robotics, automation systems Manufacturer: Flex-Cable (division of Electro-Matic Products, Inc.) Country of origin: USA Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   13.00

Depth:   10.00

Length:   12.00

Width:   16.00

SKU:   275779 4.S2.14.2
