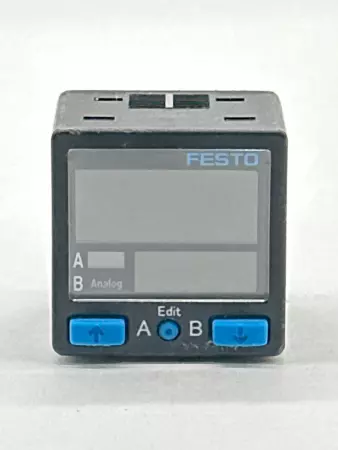

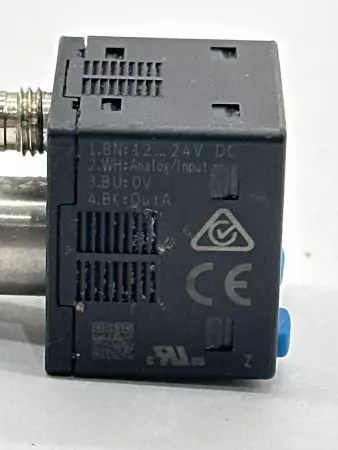

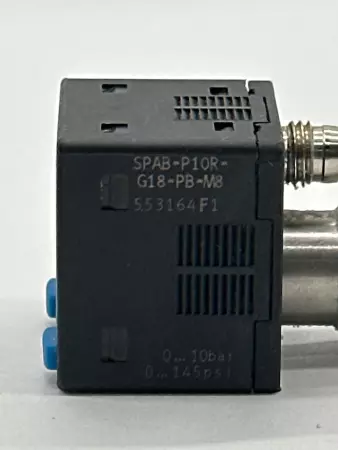

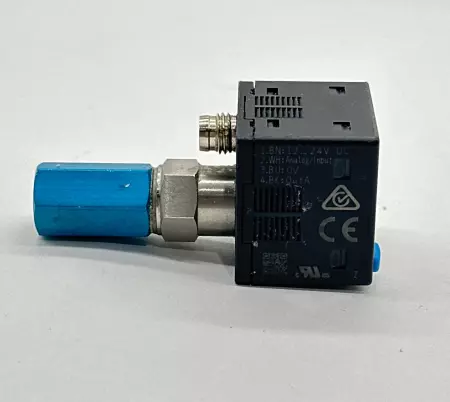

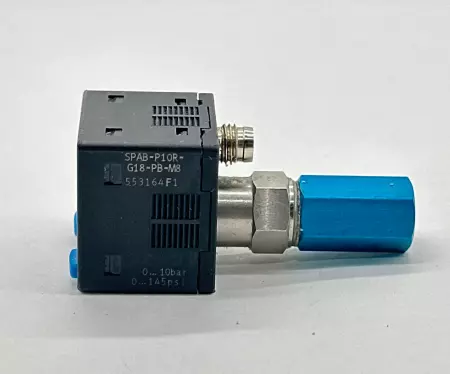

Festo 553164 Pressure Sensor

Festo SPAB-P10R-G18-PB-M8 Pressure Sensor is a compact, piezoresistive pressure sensor with an integrated multicolor LCD display. It is designed for monitoring relative pressure in pneumatic systems, offering both digital and analog outputs for versatile integration. Measured variable: Relative pressure Measurement method: Piezoresistive pressure sensor with display Pressure measuring range: 0 to 10 bar Overload pressure: 15 bar Operating medium: Compressed air per ISO 8573-1:2010 [7:4:4] Operating pressure: 0 to 10 bar Ambient temperature range: -10 °C to +50 °C Switching output: 1x PNP Switching function: Freely programmable Switching element function: Switchable Repetition accuracy of switching output: ±0.2% FS Maximum output current: 100 mA Analog output: 4–20 mA / 1–5 V Precision analog output zero point: ±5% FS Precision analog output margin: ±5% FS Repetition accuracy of analog output: ±0.2% FS Display type: Illuminated multicolor LCD Displayable units: bar, MPa, kPa, kgf/cm², psi Operating voltage range: 12–24 V DC Electrical connection: M8x1, 4-pin plug Pneumatic connection: Male thread G1/8, Female thread M5 Mounting type: Threaded or with accessories Protection class: IP40 Housing material: Reinforced ABS and PBT Product weight: 45 g Setting options: Teach-in via display and buttons Tamper protection: PIN code Threshold value setting range: 0–100% Hysteresis setting range: 0–90% Compliance: RoHS, CE, c UL us Recognized Festo part number: 553164 Model: SPAB-P10R-G18-PB-M8 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275782 4.S3.15.4A
