In stock 1 available

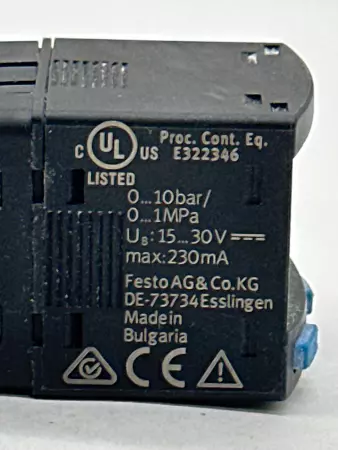

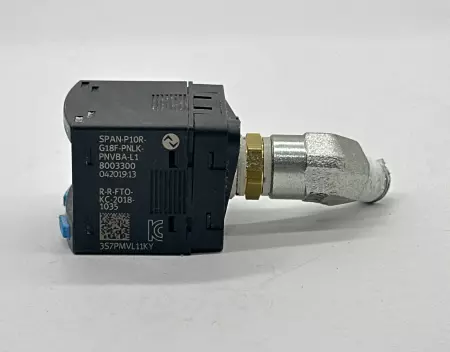

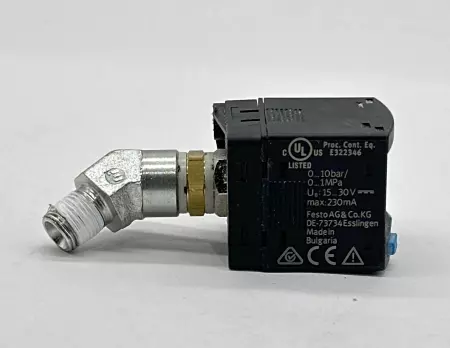

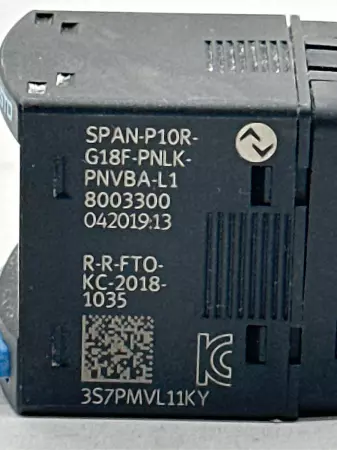

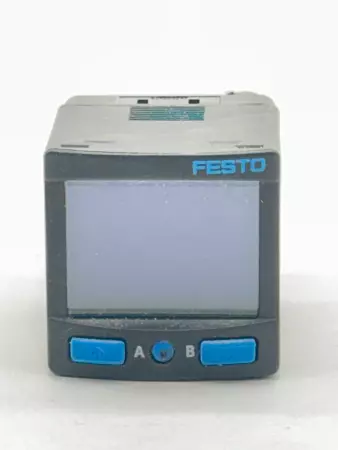

Festo SPAN-P10R-G18F-PNLK Pressure Sensor (Part No. 8003300) is a compact, display-equipped electronic pressure sensor designed for monitoring relative pressure in pneumatic systems. It supports both switching and analog output signals and features a user-friendly interface for configuration. Measuring range: 0 to 10 bar (0 to 1 MPa) Operating medium: Compressed air, neutral gases Measurement method: Piezoresistive Operating voltage: 15–30 V DC Max. current consumption: 230 mA Display: Integrated LCD with multicolor backlight Output type: PNP switching + analog (4–20 mA or 0–10 V selectable) Pressure connection: G1/8 female thread Electrical connection: Prewired cable or PNLK-style connector (plug not shown) Switching function: Configurable (hysteresis, window, etc.) Housing material: Reinforced plastic (typically PBT) Mounting: Panel mount or bracket (depending on installation) IP rating: Likely IP40 or higher (depends on mounting and connector sealing) Conformance: CE, UL Listed (E322346), RoHS compliant Temperature range: Approx. -5 °C to +50 °C Country of origin: Bulgaria Festo part number: 8003300 Model: SPAN-P10R-G18F-PNLK Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 2.00
Depth: 4.00
Length: 4.00
Width: 4.00
SKU: 275783 4.S3.15.4A
