In stock 1 available

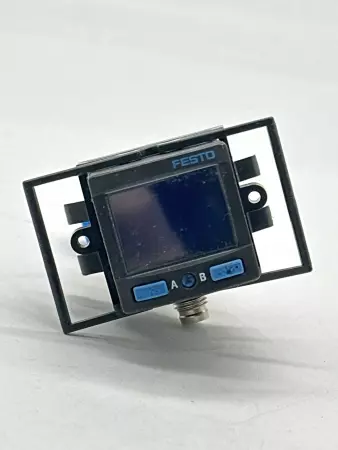

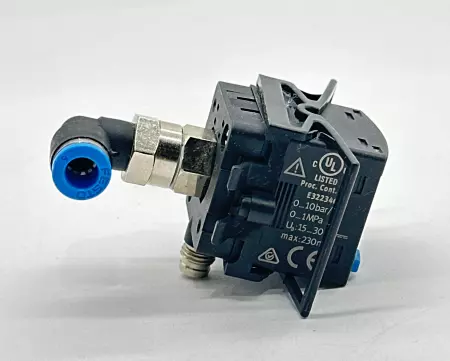

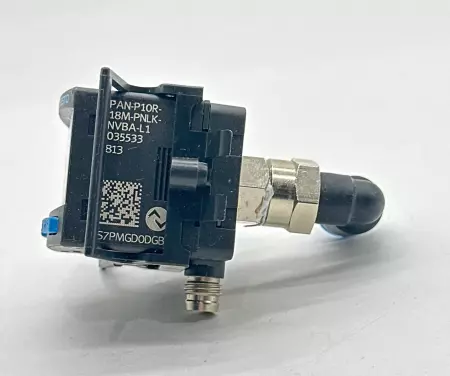

Festo SPAN-P10R-G18F-PNLK Pressure Sensor (Part No. 8035533) is a piezoresistive electronic pressure sensor featuring a G1/8 female pneumatic connection, an integrated LCD display, and a bracketed mount for convenient panel or machine installation. It is suitable for relative pressure monitoring in pneumatic systems. Measured pressure range: 0 to 10 bar (0 to 1 MPa) Measurement type: Relative pressure Operating medium: Compressed air, neutral gases Supply voltage: 15–30 V DC Max. current consumption: 230 mA Output type: Configurable (PNP/NPN switching + analog 4–20 mA or 0–10 V) Display: Multicolor LCD display Pressure port: G1/8 female thread with included Festo push-in fitting for 6 mm tubing Mounting: Bracketed mount included Housing material: High-performance plastic (PBT or similar) Protection class: Likely IP40 Temperature range: Approx. -5 °C to +50 °C Certifications: CE, UL Listed (E322346), RoHS compliant Country of origin: Typically Bulgaria Festo part number: 8035533 Model: SPAN-P10R-G18F-PNLK Application: Pneumatic system pressure monitoring, machine automation diagnostics Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 2.00
Depth: 6.00
Length: 6.00
Width: 6.00
SKU: 275784 4.S3.15.4A
