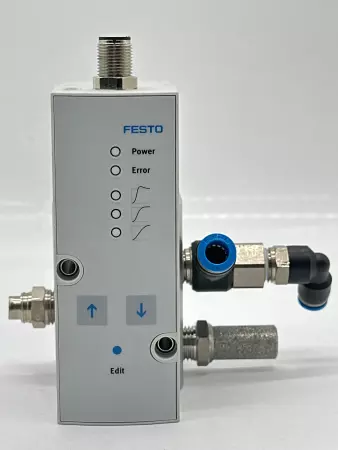

Festo 571297 Proportional Pressure Regulator Assy

Festo VPPM-8L-L-1-G18-0.6M-V1P-S1 Proportional Pressure Regulator (Part No. 571297) is a compact, electronically controlled, in-line pressure regulator designed for precision control of compressed air in pneumatic automation systems. It is ideal for applications requiring low dynamic response and high repeatability. Function: Proportional pressure regulator Valve type: 3/2-way, normally closed Control principle: Electrical setpoint with internal pressure control loop Nominal width: 8 mm Pressure regulation range: 0–6 bar Operating pressure: 0–10 bar Port size: G1/4 Supply voltage: 24 V DC Control input: Analog (typically 0–10 V or 4–20 mA) Flow rate: Up to approx. 300 l/min (depending on configuration) Display/interface: LED bar graph and push-button control with “Edit” function Dynamic response: Low (optimized for stable regulation, not fast switching) Exhaust function: Internal via integrated 3/2-way valve Mounting type: Inline or manifold mountable Pneumatic connections: Push-in fittings (typically for 6 mm tubing) Protection rating: IP65 (with appropriate connectors) Ambient temperature range: 0 to +50 °C Body material: Die-cast aluminum and high-performance polymer Compliance: CE, RoHS, UL Listed Country of origin: Germany Festo part number: 571297 Model: VPPM-8L-L-1-G18-0.6M-V1P-S1 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   4.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   275786 4.S3.2.3
