In stock 1 available

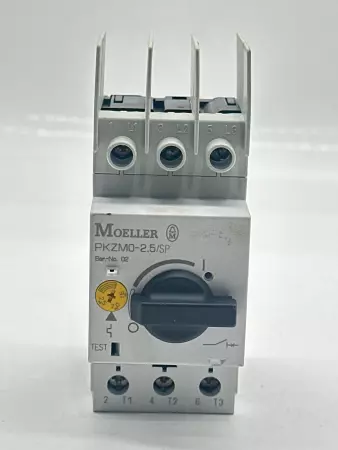

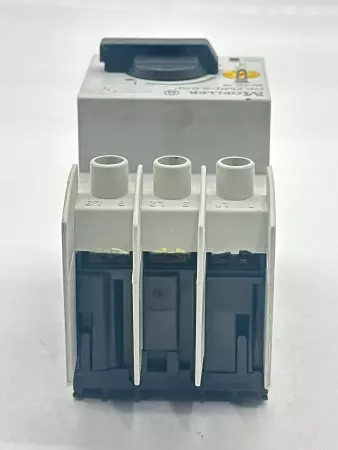

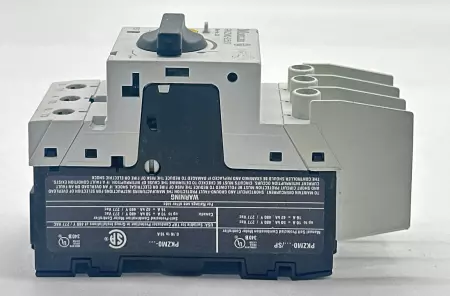

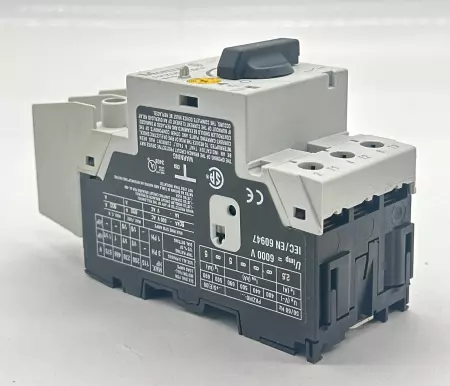

The Moeller PKZM0-2,5/SP is a compact 3-pole motor protection circuit breaker designed for direct-on-line starting of motors. It offers overload and short-circuit protection in a DIN rail mountable format, making it ideal for motor control centers and industrial panels. Model: PKZM0-2,5/SP Number of Poles: 3 Current Range: 1.6 – 2.5 A Rated Operational Voltage: 220–690 VAC Rated Insulation Voltage: 690 V Rated Impulse Voltage: 6 kV Motor Power: 0.75 kW at 400 V Rated Breaking Capacity: 150 kA (400 V) with backup fuse Mounting: DIN Rail Connection Type: Screw Terminals Trip Class: Class 10 Short Circuit Release: Fixed, operates at 13x In Rated Operational Current: 2.5 A Max Rated Current: 35 A Operating Temperature: -25°C to +55°C Standards: IEC/EN 60947-4-1, IEC/EN 60947-2 Enclosure Protection: IP20 (terminals), higher with enclosure Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 3.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 275799 4.S3.5.2
