Allen-Bradley 100-C72*00 SER.B 3-Pole Contactor, 600VAC 72A

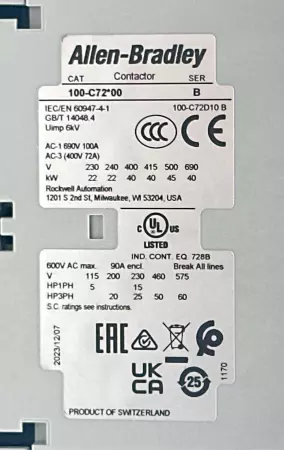

The Allen-Bradley 100-C72*00 is a heavy-duty, IEC-rated 3-pole contactor used for motor control and power switching applications. It supports AC coil operation and is equipped with screw terminals for reliable line-side connection. Catalog Number: 100-C72*00 Series: B Voltage Rating (AC-1): 690V, 100A Voltage Rating (AC-3): 400V, 72A Poles: 3 Normally Open (NO) Coil Voltage: 110V @ 50 Hz / 120V @ 60 Hz (AC) Motor Power Ratings (AC-3): – 230V: 22 kW – 240V: 22 kW – 400V: 40 kW – 415V: 40 kW – 500V: 45 kW – 690V: 40 kW UL Ratings (IND.CONT.EQ. 728B): – Voltage: up to 600V AC – Max Enclosed Current: 90A – HP Ratings (1PH): 5 HP (115V), 15 HP (200–230V) – HP Ratings (3PH): 20 HP (200V), 25 HP (230V), 50 HP (460V), 60 HP (575V) Coil Termination: Line-side coil termination Contact Configuration: 3 Normally Open (NO) contacts Mounting: Single-pack, standard panel mount Terminals: Screw-type Application: Motor loads, switching and control in automation systems Certifications: UL, CE, CCC, EAC, UKCA Standards: IEC/EN 60947-4-1, UL Listed Impulse Withstand Voltage (Uimp): 6 kV Manufacturing Location: Product of Switzerland Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   9.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   275813 4.S5.16.3
