Allen-Bradley 1489-M2C040 SER.D 2-Pole circuit Breaker, 480Y/277V 4A

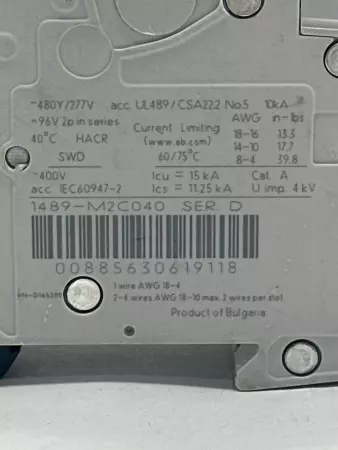

The Allen-Bradley 1489-M2C040 is a 2-pole miniature circuit breaker designed for branch circuit protection in industrial control panels. It meets UL 489 and IEC 60947-2 standards, making it suitable for global applications requiring compact, reliable overcurrent protection. Catalog Number: 1489-M2C040 Series: D Number of Poles: 2 Rated Voltage: 480Y/277V AC Rated Current: 4 A Frequency: 50/60 Hz Interrupting Capacity: – UL 489: 10 kA – IEC 60947-2: Icu = 15 kA, Ics = 11.25 kA Application: SWD (Switching Duty), HACR rated Tripping Curve: C (typical for inductive loads) Wire Size Range: – 18–16 AWG: 13.3 lb-in – 14–10 AWG: 17.7 lb-in – 8 AWG: 39.8 lb-in Terminal Tightening Torque: As listed above Dielectric Strength (Impulse Voltage): Uimp = 4 kV Certifications: UL 489, CSA, CE Product Standards: IEC 60947-2 Mounting: DIN rail Country of Manufacture: Product of Bulgaria Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275814 4.S5.16.3
