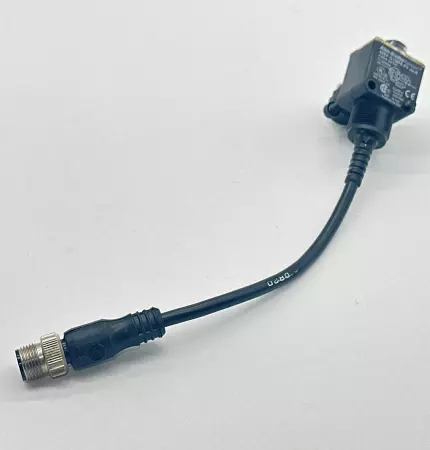

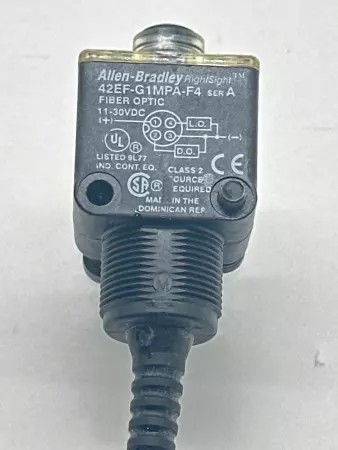

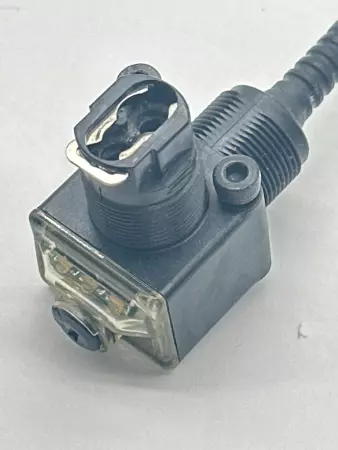

Allen-Bradley 42EF-G1MPA-F4 SER.A RightSight™ Photoelectric Sensor

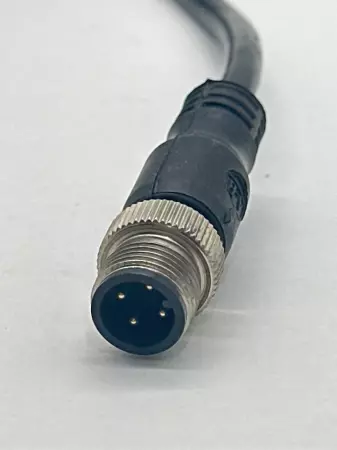

The Allen-Bradley 42EF-G1MPA-F4 is a RightSight™ photoelectric sensor designed for precise object detection in industrial automation applications. It utilizes a large aperture fiber optic sensing mode and provides reliable performance in challenging environments. Technical Specifications: Sensing Mode: Large aperture fiber optic (infrared) Light Source: Infrared LED Operating Voltage: 10.8–30 V DC Output Type: PNP (source), 2 complementary outputs (light operate/dark operate) Response Time: 1 ms Sensitivity Adjustment: Manual (single-turn knob) Connection Type: 4-pin DC micro (M12) quick-disconnect on 152 mm (6 in.) pigtail Enclosure Rating: IP67, IP69K (excluding polarized retroreflective models) Operating Temperature: -10°C to +50°C (14°F to 122°F) Mounting: 18 mm cylindrical housing with front through-hole Compliance: CE, cULus, KC, C-Tick This sensor is suitable for applications requiring precise detection with fiber optic sensing, such as in packaging, material handling, and assembly operations. Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275816 4.S3.19.2A
