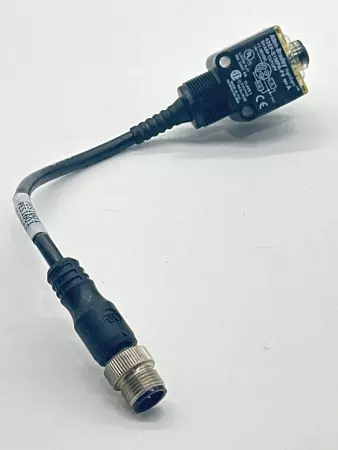

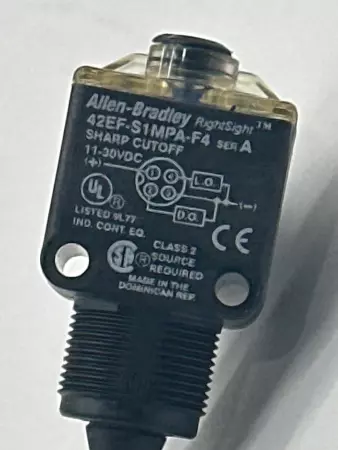

Allen-Bradley 42EF-S1MPA-F4 SER.A RightSight™ Photoelectric Sensor

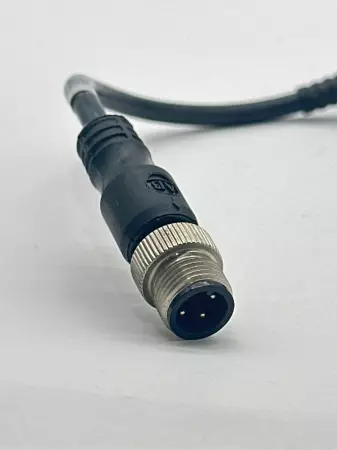

The Allen-Bradley 42EF-S1MPA-F4 is a compact, high-performance photoelectric sensor from the RightSight™ series, designed for sensing light-colored targets at short range with excellent reliability. It is ideal for use in packaging, material handling, and industrial automation systems. Sensing Mode: Background suppression Sensing Range: 30 to 300 mm Light Source: Visible red LED Output Type: PNP, light operate (LO) and dark operate (DO), complementary outputs Response Time: 1 ms Power Supply: 11–30 VDC Current Consumption: ≤30 mA Connection: 4-pin DC micro (M12) quick-disconnect on 152 mm (6 in.) pigtail Enclosure Rating: IP67, IP69K Housing Material: Plastic Lens Material: PMMA (acrylic) Operating Temperature: -10°C to +50°C (14°F to 122°F) Mounting Type: 18 mm cylindrical or through-hole mounting Indicator LEDs: Yellow (output status), Green (power/status) Protection Circuitry: Reverse polarity, short-circuit, and false pulse protection Approvals: cULus, CE, UKCA, EAC Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   275817 4.S3.19.2A
