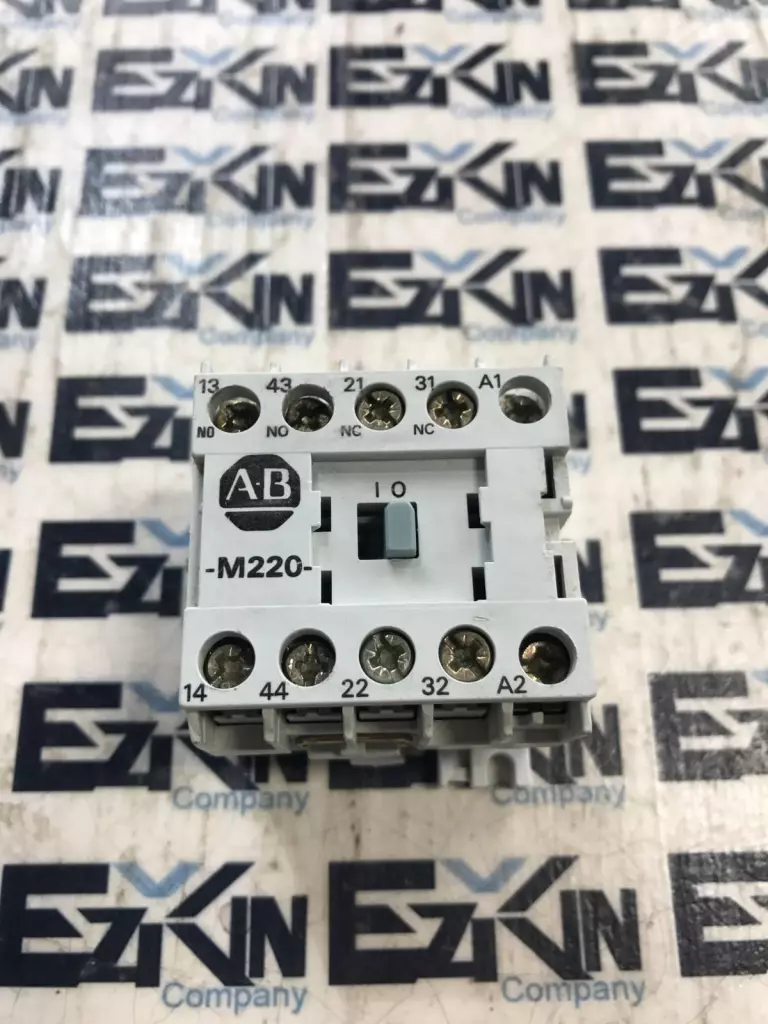

Allen-Bradley 700-M220* SER.A Mini Control Relay, 300VAC 12A / 600VAC 5A

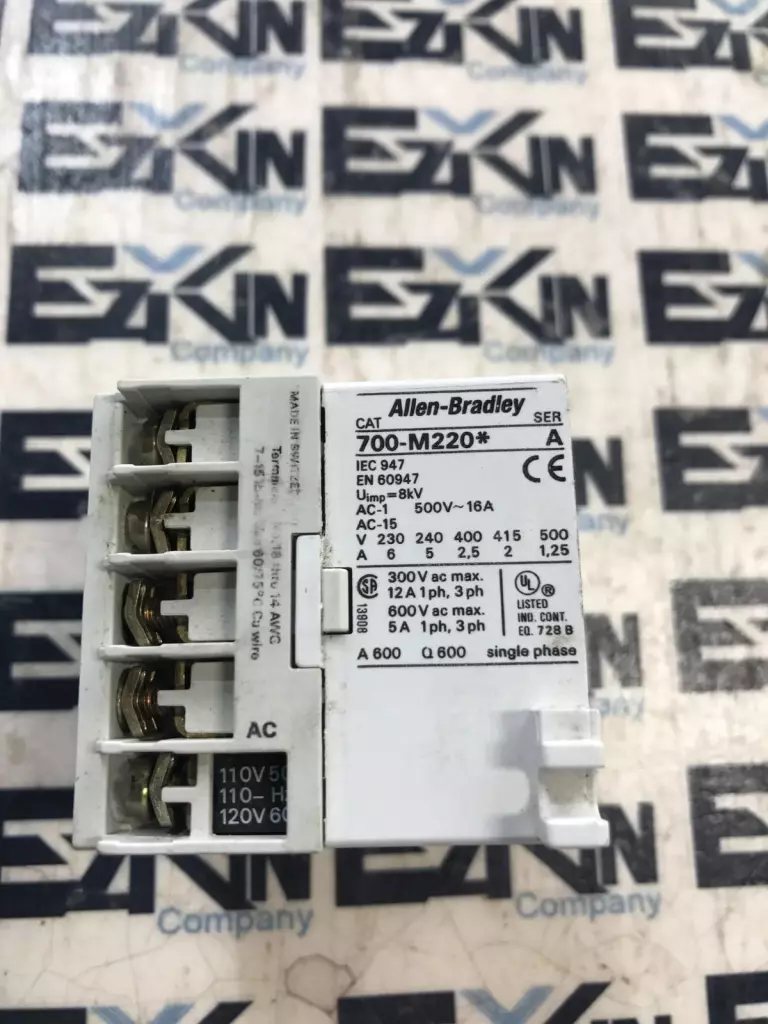

Allen-Bradley 700-M220 Mini Control Relay is a compact industrial relay designed for use in control systems where space is limited. It provides reliable switching for low- and medium-voltage circuits in both single- and three-phase applications. Catalog number: 700-M220 Series: A Voltage rating (coil): 110V 50Hz / 120V 60Hz AC Contact rating AC-1: 500 V, 16 A Contact rating AC-15: 230 V: 6 A 240 V: 6 A 400 V: 2.5 A 415 V: 2.5 A 500 V: 1.25 A UL ratings: 300 V AC max: 12 A (1-phase), 3-phase 600 V AC max: 5 A (1-phase), 3-phase Dielectric withstand voltage: Uimp = 8 kV Standard compliance: IEC 947, EN 60947 Mounting: DIN rail mount Certifications: UL Listed, CE marked, CSA Made in: Switzerland Application: Control panel switching, motor control circuits, automation logic relay systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.20

Depth:   4.00

Length:   6.00

Width:   4.00

SKU:   2983 4.S10.5.3F
