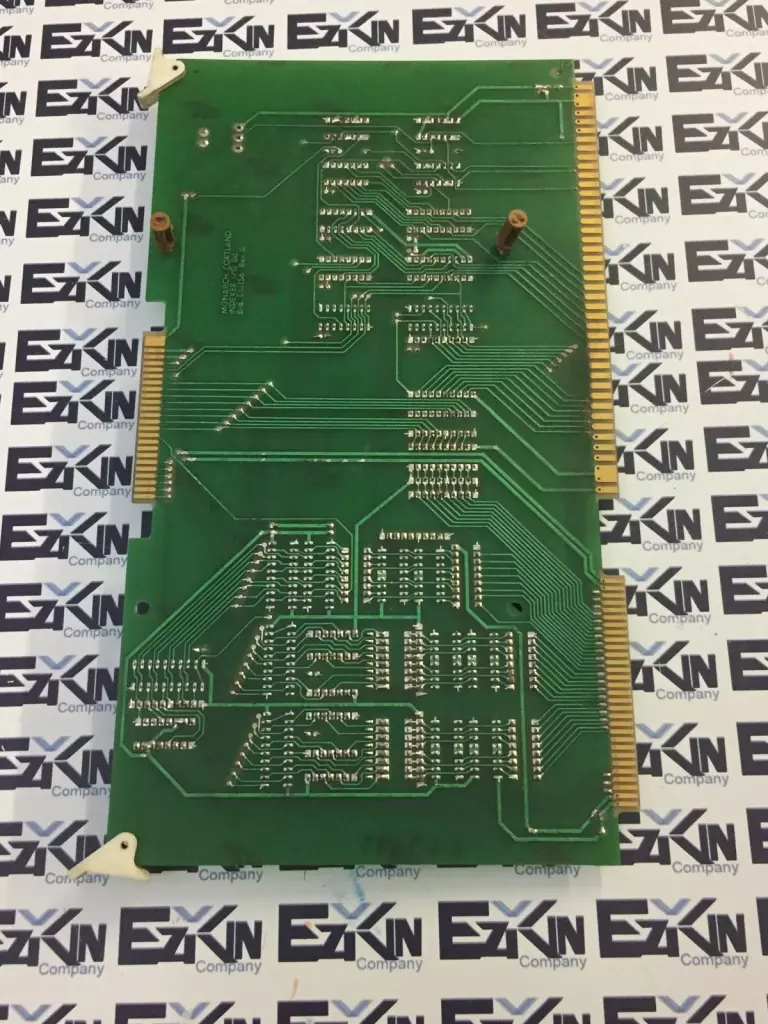

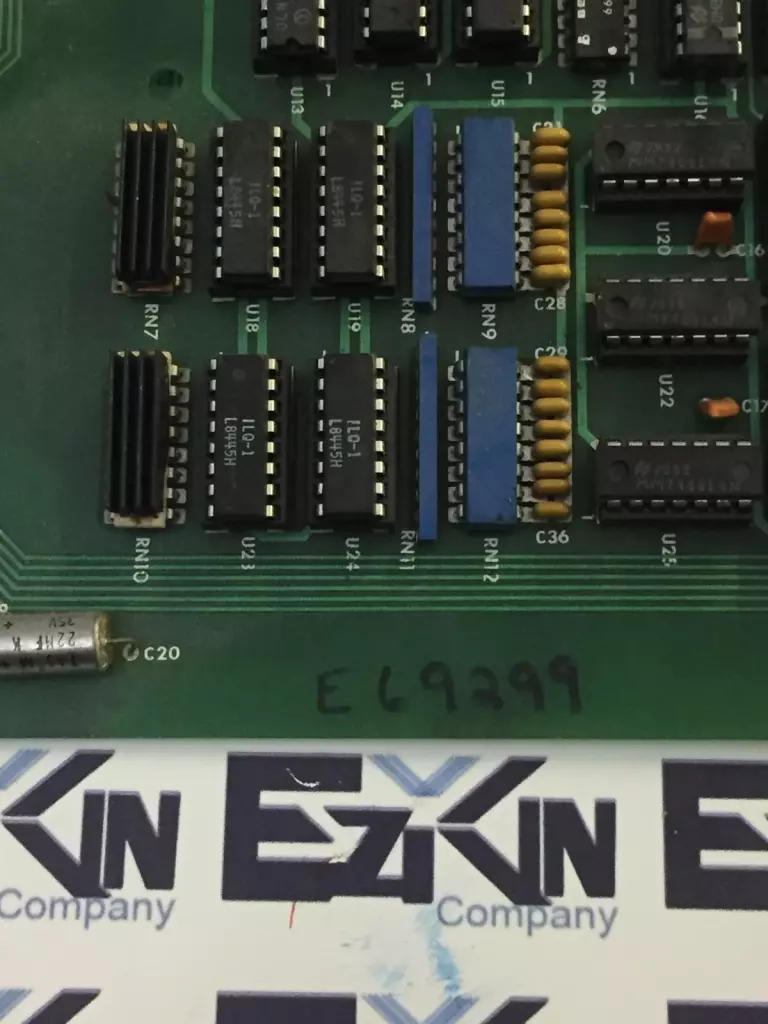

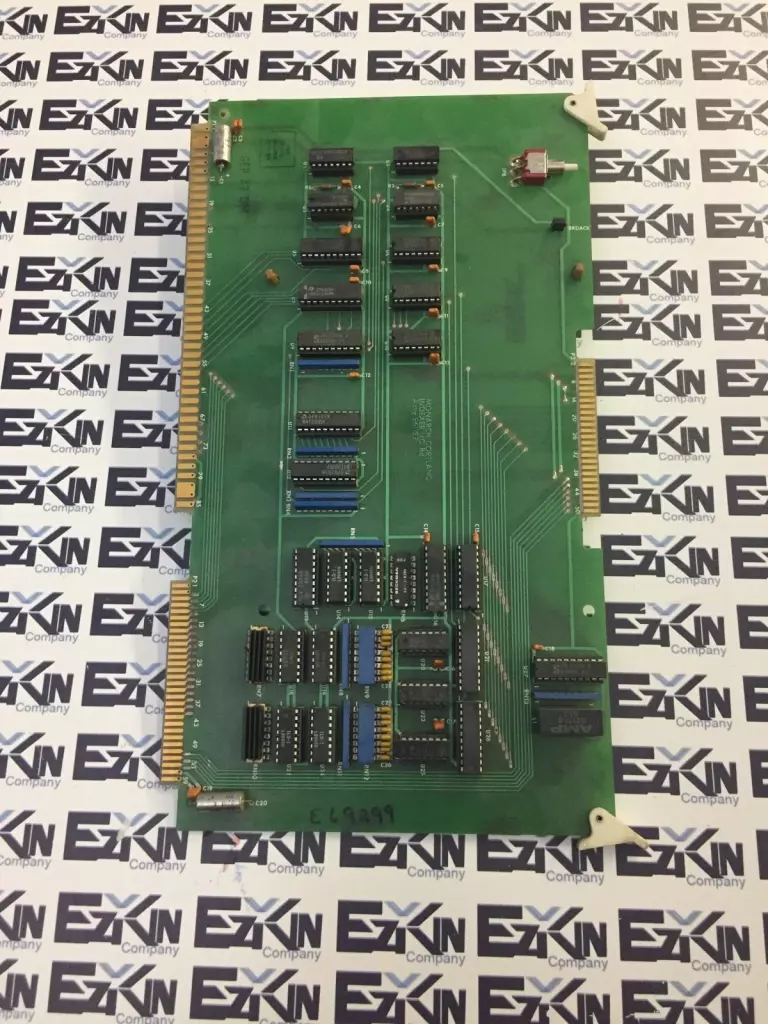

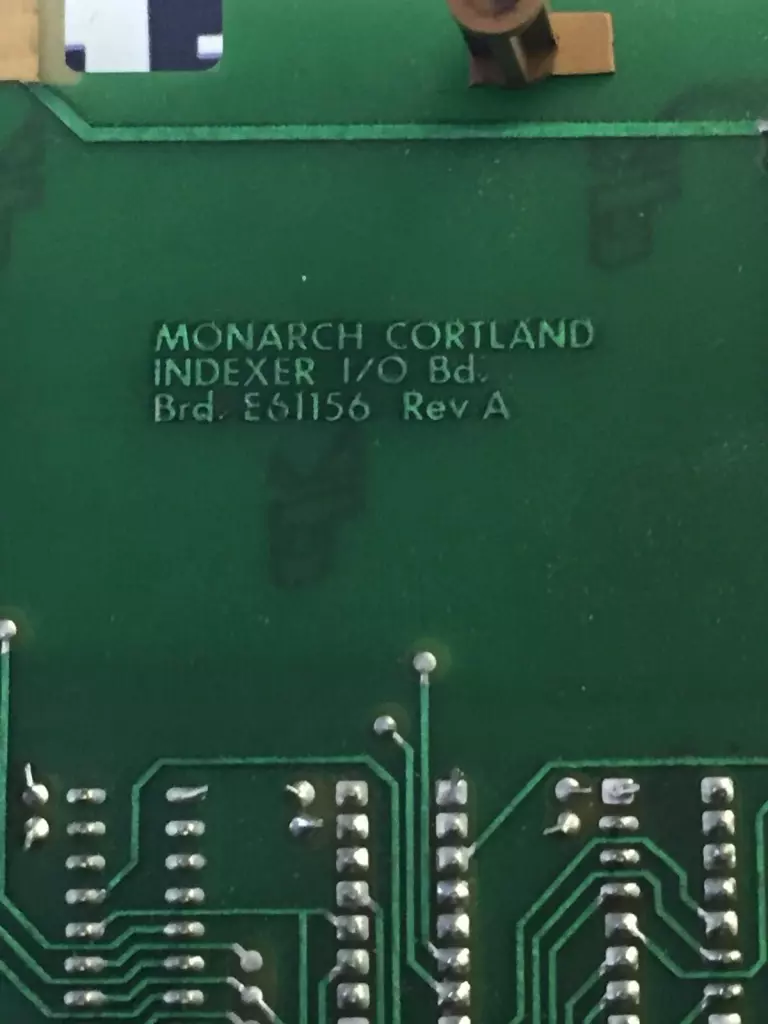

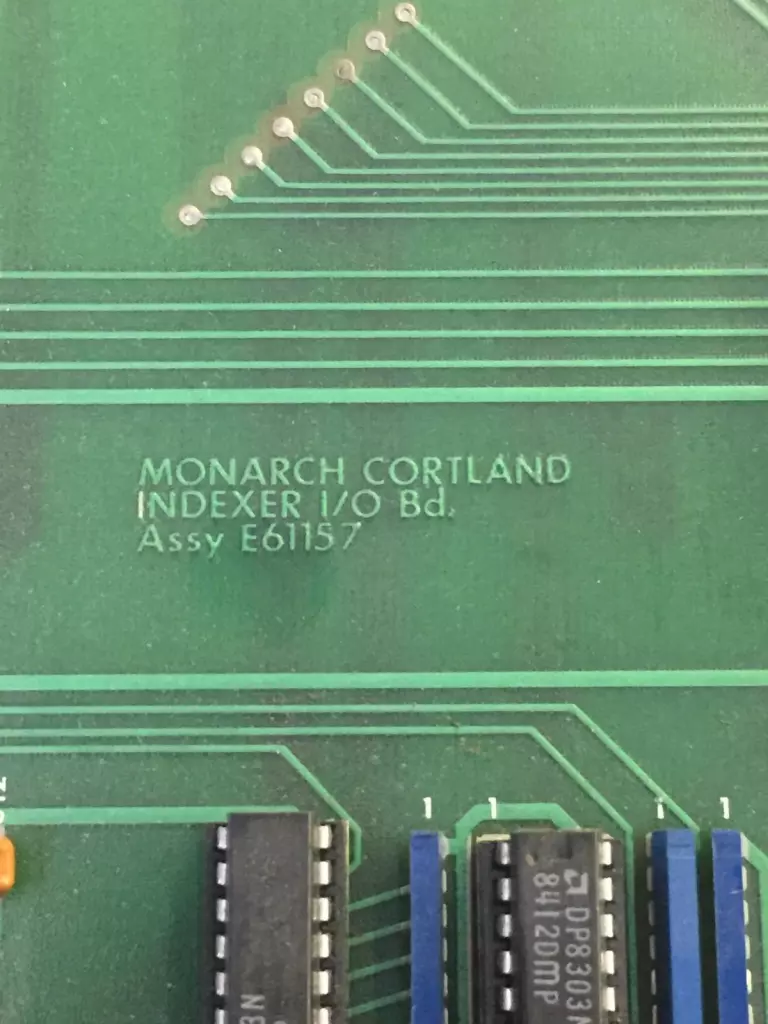

Monarch Cortland E61156/7 REV.A Indexer I/O Board

The Monarch Cortland E61156/7 REV.A is an Indexer I/O board designed for integration with CNC systems and motion control applications. It facilitates the interface between the indexer (motion controller) and various peripheral devices, allowing for signal routing, logic control, and synchronization of machine operations. Model: E61156/7 Revision: A Function: Indexer I/O interface board Application: CNC machinery, motion control systems Input/Output type: Digital I/O (sink/source depending on configuration) Connector type: Edge/card connector with multiple I/O signal pins Board format: PCB, rack-mount or card slot integration Voltage compatibility: Typically 5V TTL or 24V industrial logic (depends on system setup) Indicators: May include diagnostic LEDs for I/O status (varies by implementation) Mounting: Slotted or screw-in PCB rack mounting Usage: Interfaces with stepper/servo drive controllers, relays, sensors, limit switches, etc. Manufacturer: Monarch Machine Tool / Monarch Cortland Note: Requires matching controller and proper configuration to operate within specified parameters Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.04

Depth:   6.00

Length:   16.00

Width:   10.00

SKU:   316 4.S8.8.1A
