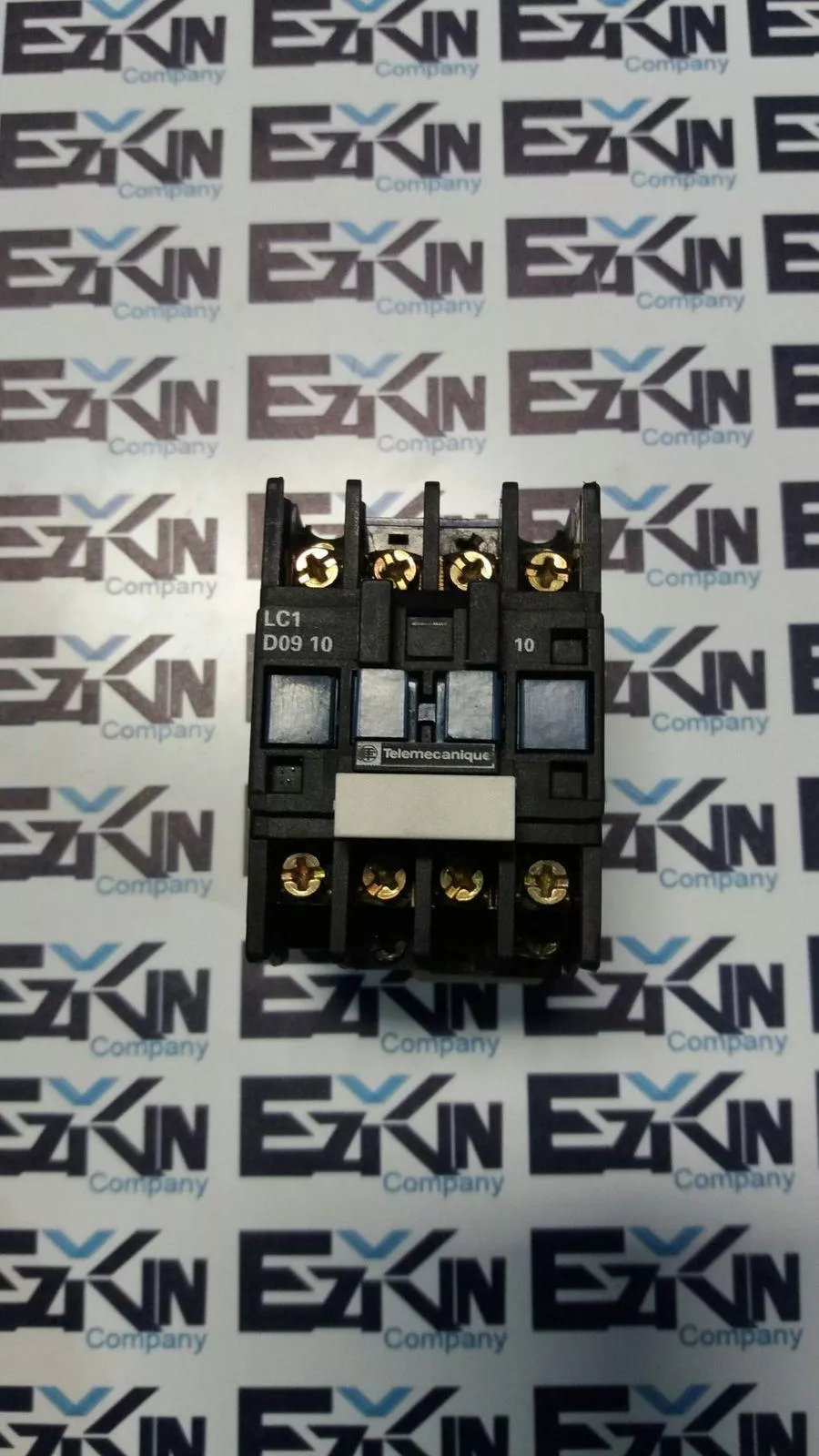

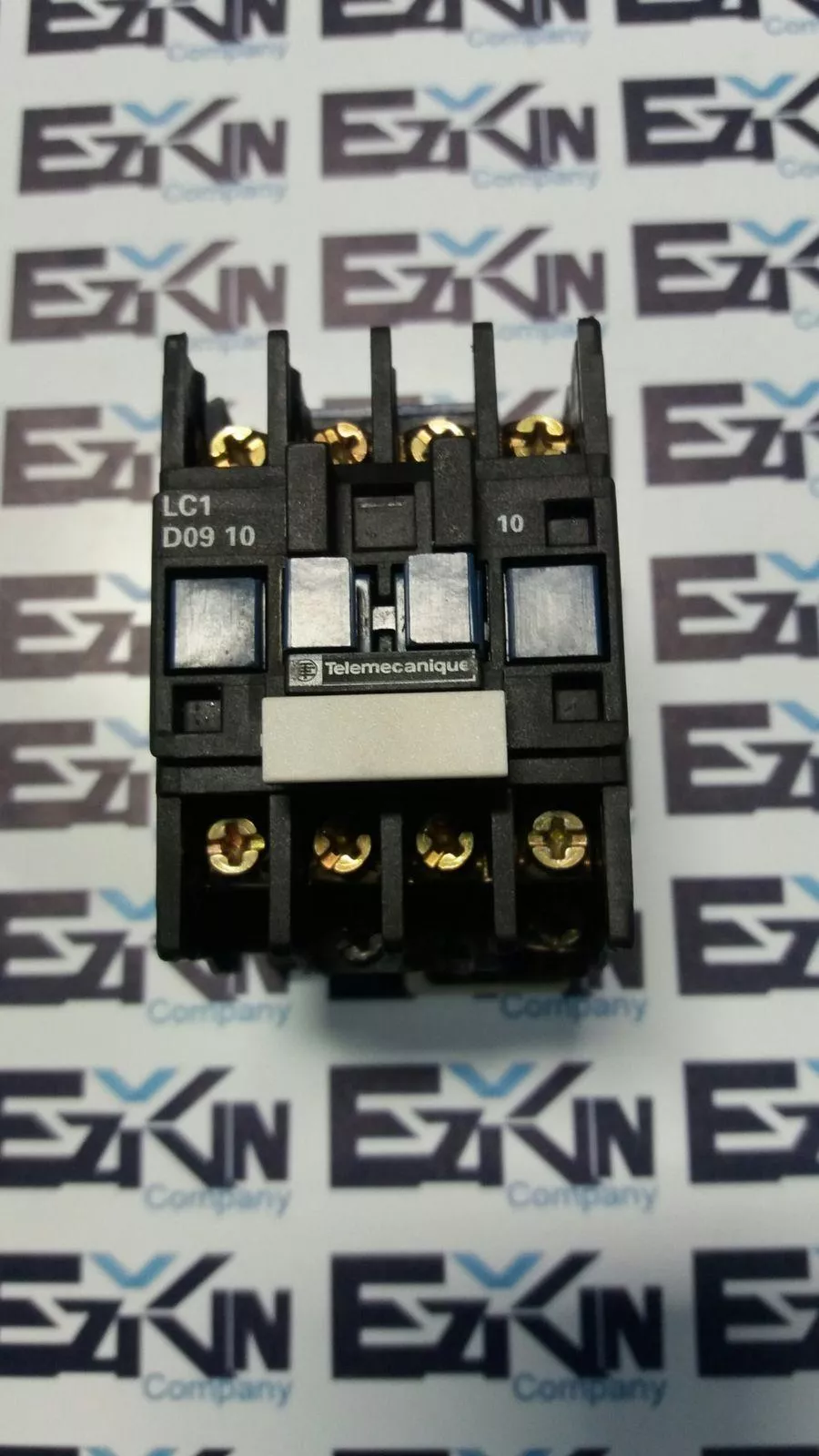

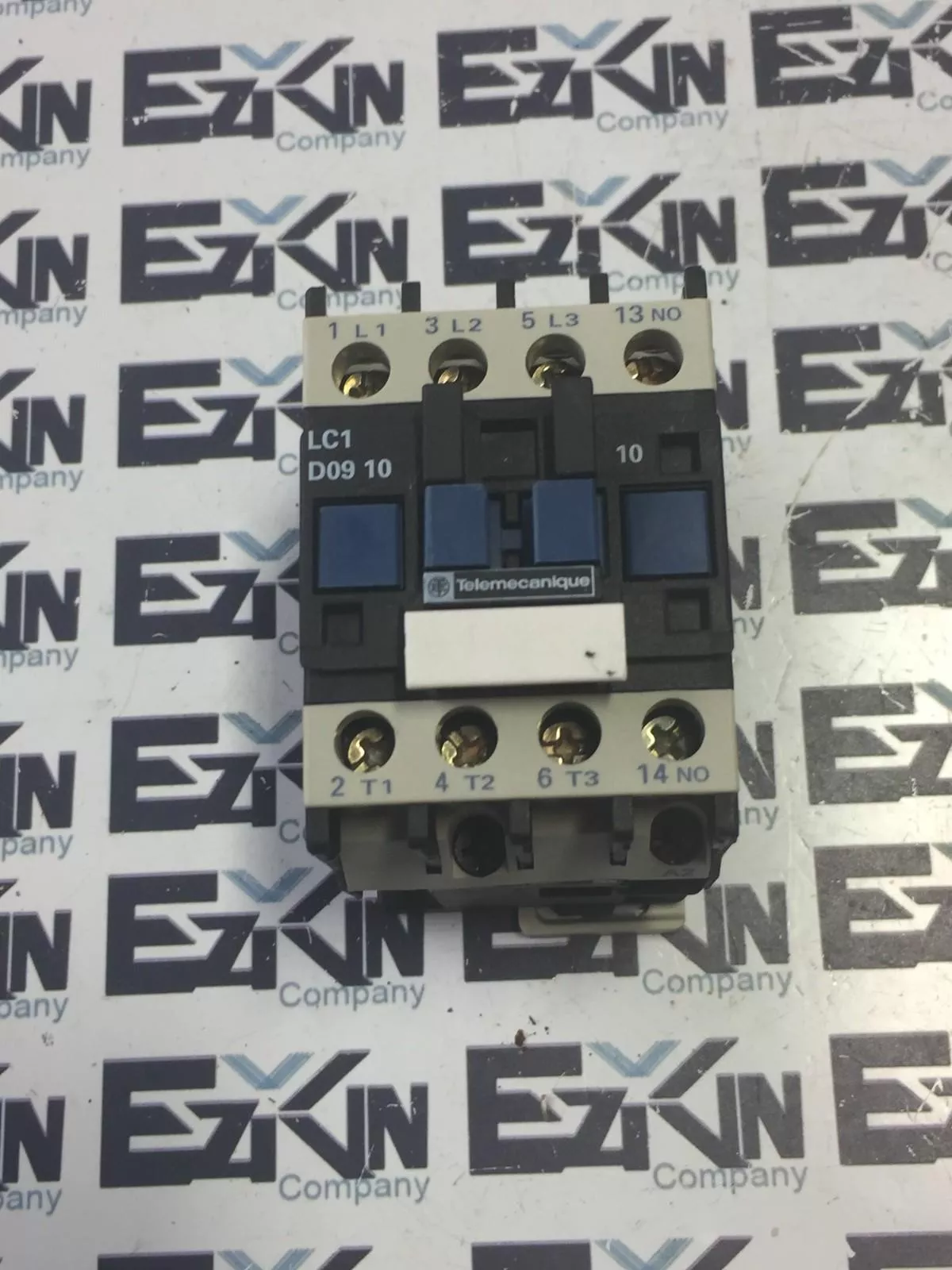

Telemecanique LC1D0910 Contactor, 600VAC 20A 110V Coil 50/60 Hz

Telemecanique LC1D0910 is a compact industrial contactor designed for motor control and switching applications. It is widely used in automation panels for reliable control of AC circuits.

Model Number: LC1D0910
Manufacturer: Telemecanique (Schneider Electric)

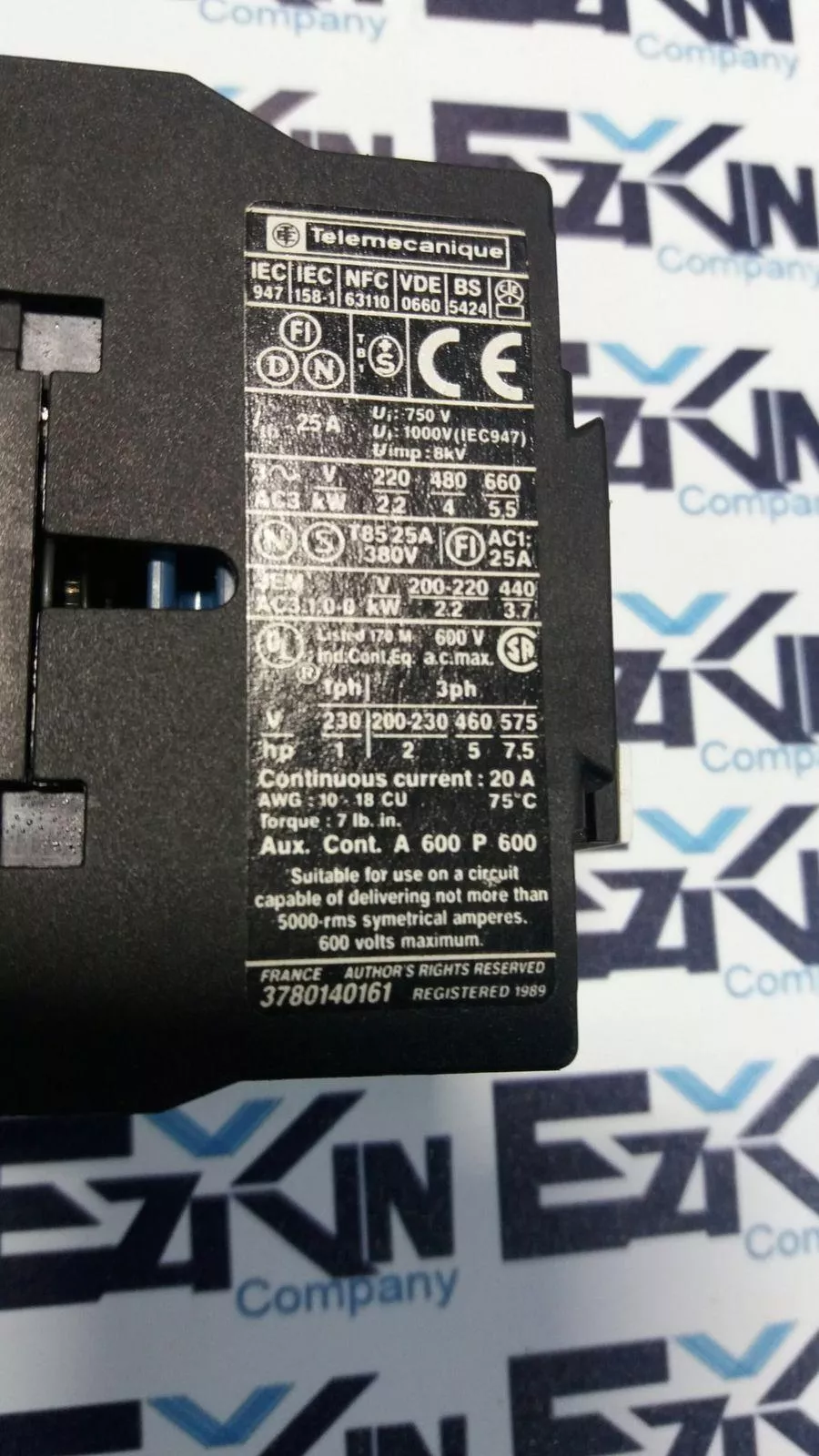

Rated Operational Voltage (Ue): 600VAC max
Rated Insulation Voltage (Ui): 750V (1000V IEC947)
Impulse Withstand Voltage (Uimp): 8kV
Rated Current (AC-3): 20A (at 600V)
Power Rating: Up to 5.5 kW (660V), 4 kW (480V), 2.2 kW (220V)

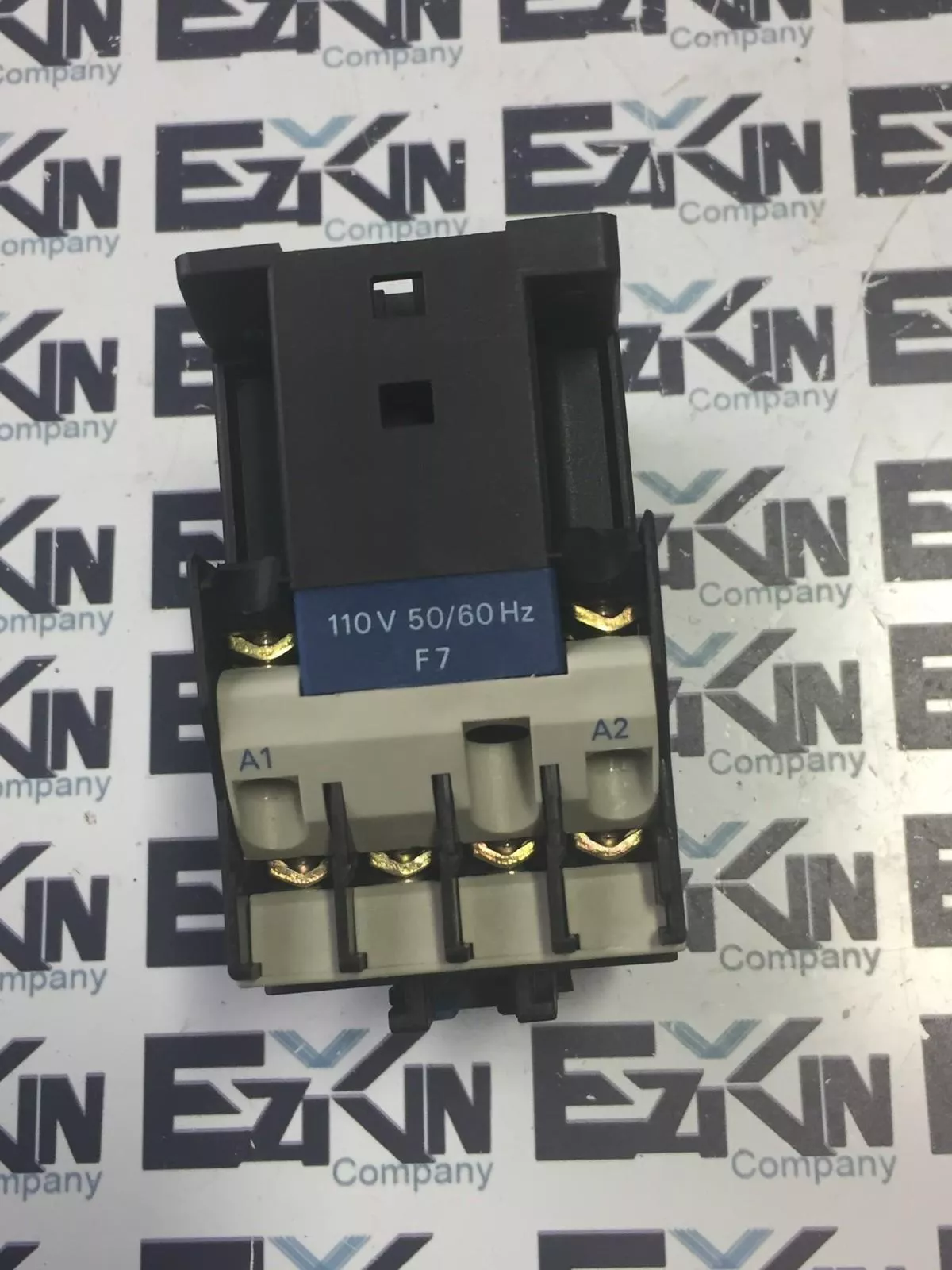

Coil Voltage: 110V at 50/60 Hz
Auxiliary Contacts: 1 NO
Horsepower Rating: 1 HP (230V), 2 HP (200-230V), 5 HP (460V), 7.5 HP (575V)
Frequency: 50/60 Hz
Continuous Current: 20A
Terminal Torque: 7 lb-in
Wire Size: AWG 10–18 Cu, 75°C
Auxiliary Contact Rating: A600 / P600
Standards: IEC, UL, CSA, CE
Country of Manufacture: France Please review pictures carefully and let us know if you have any questions!
