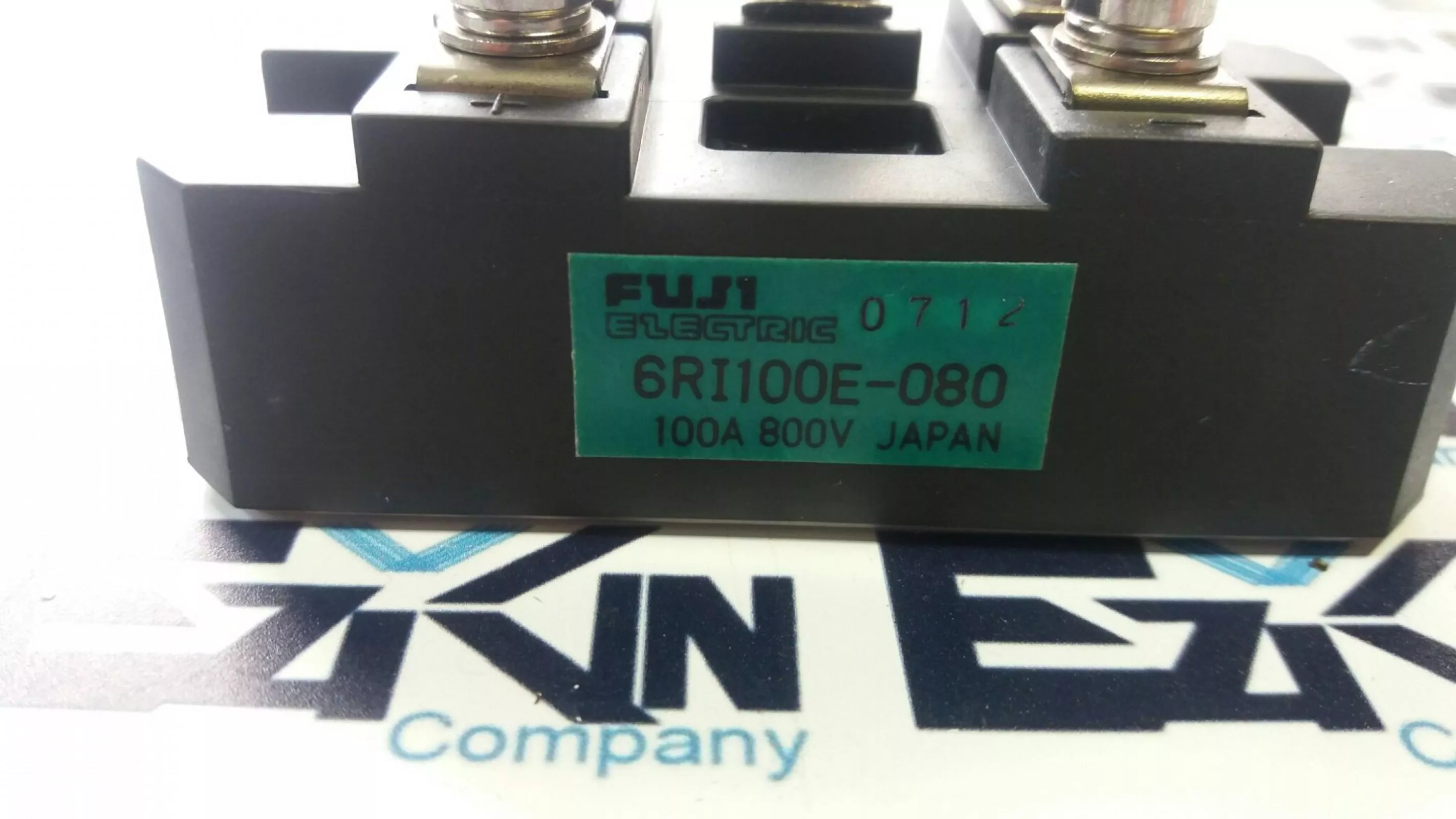

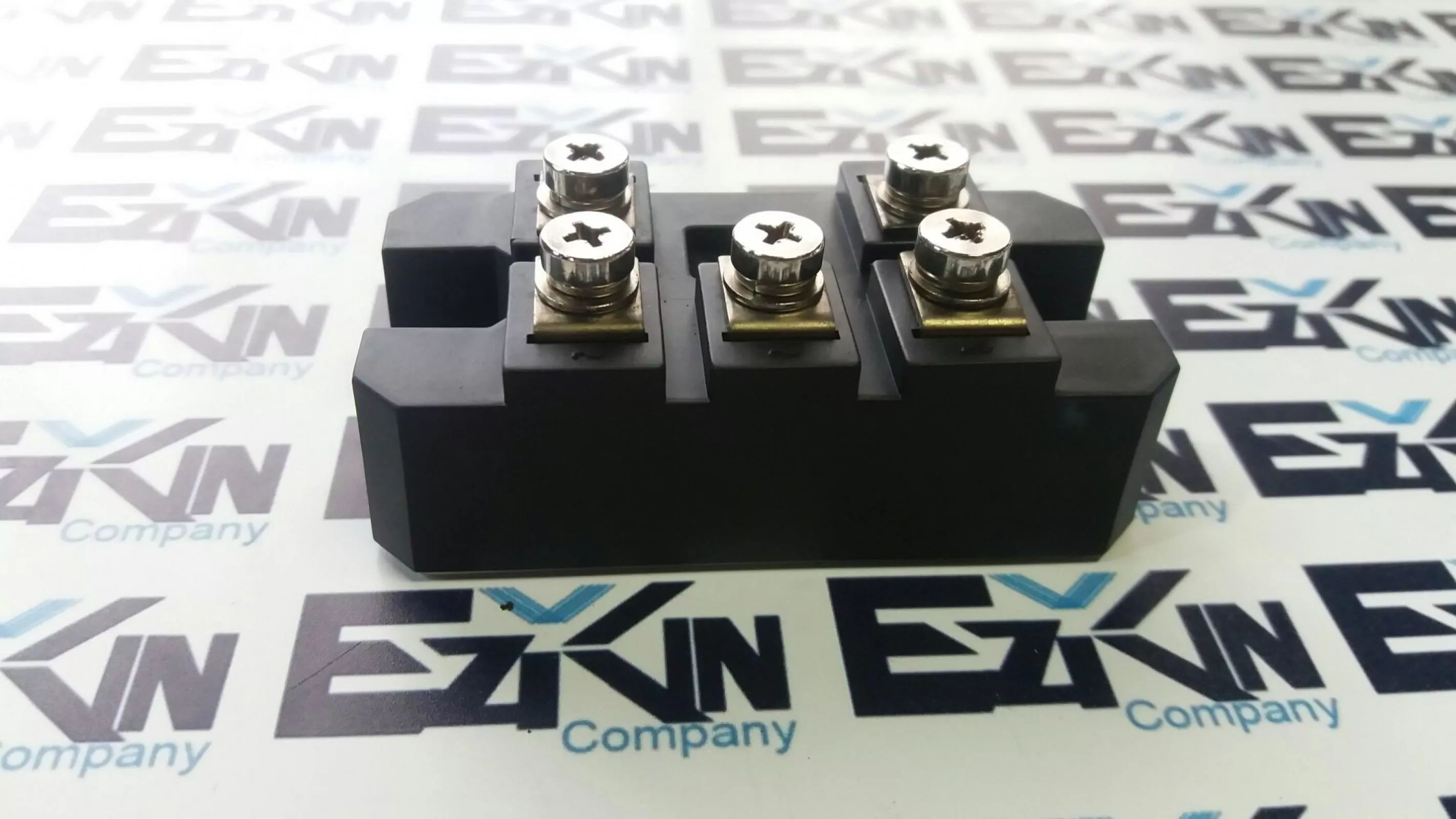

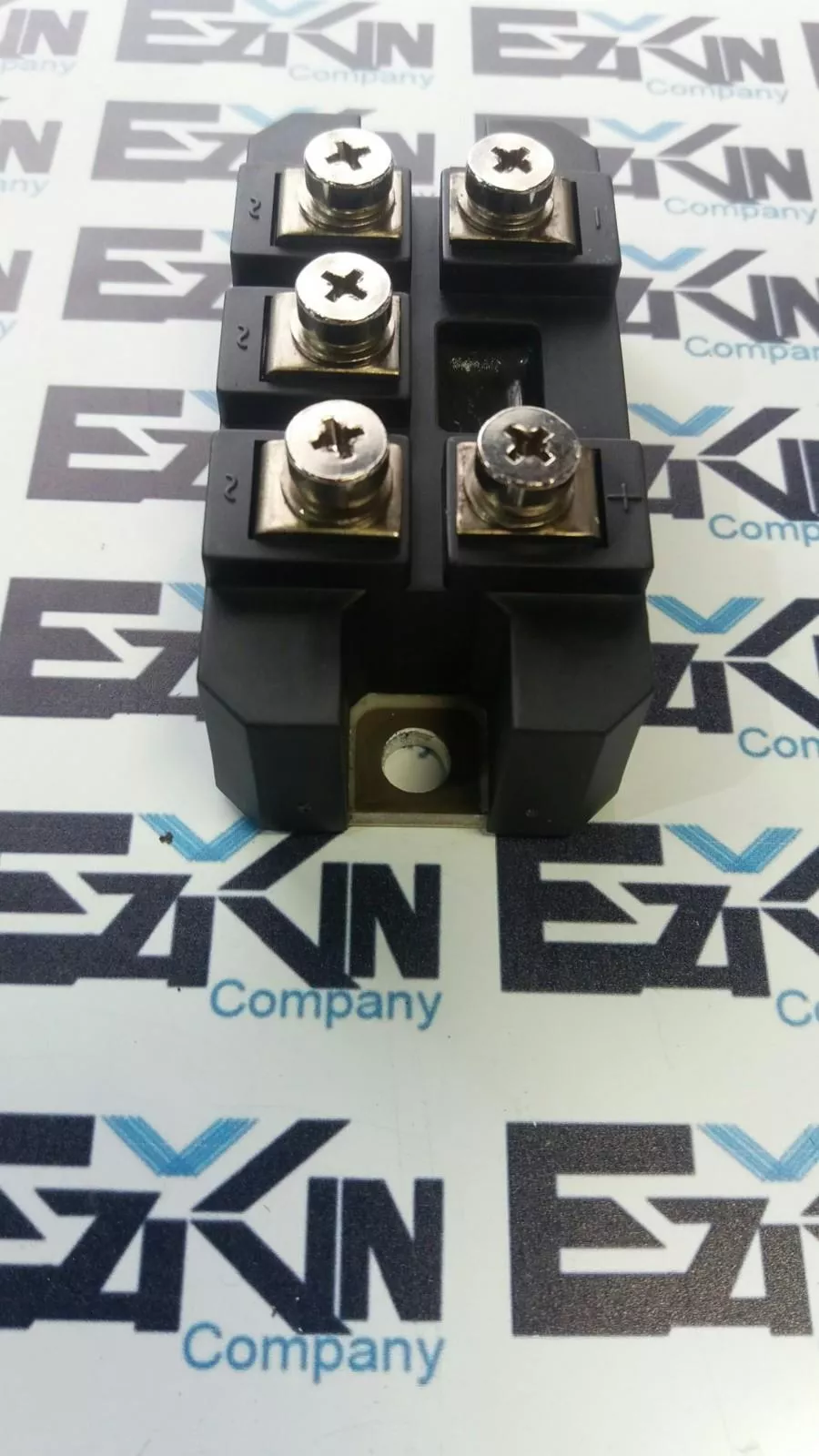

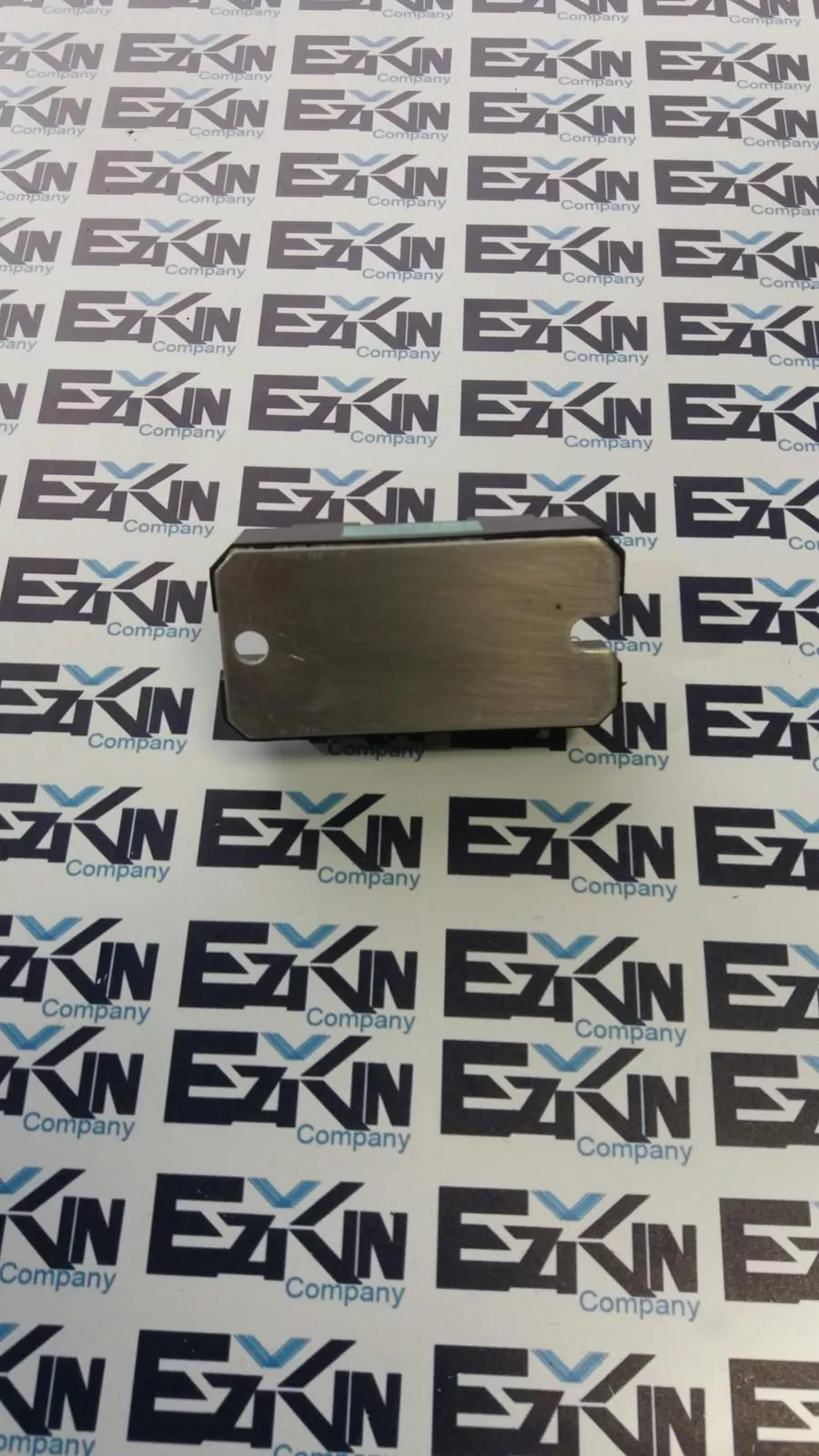

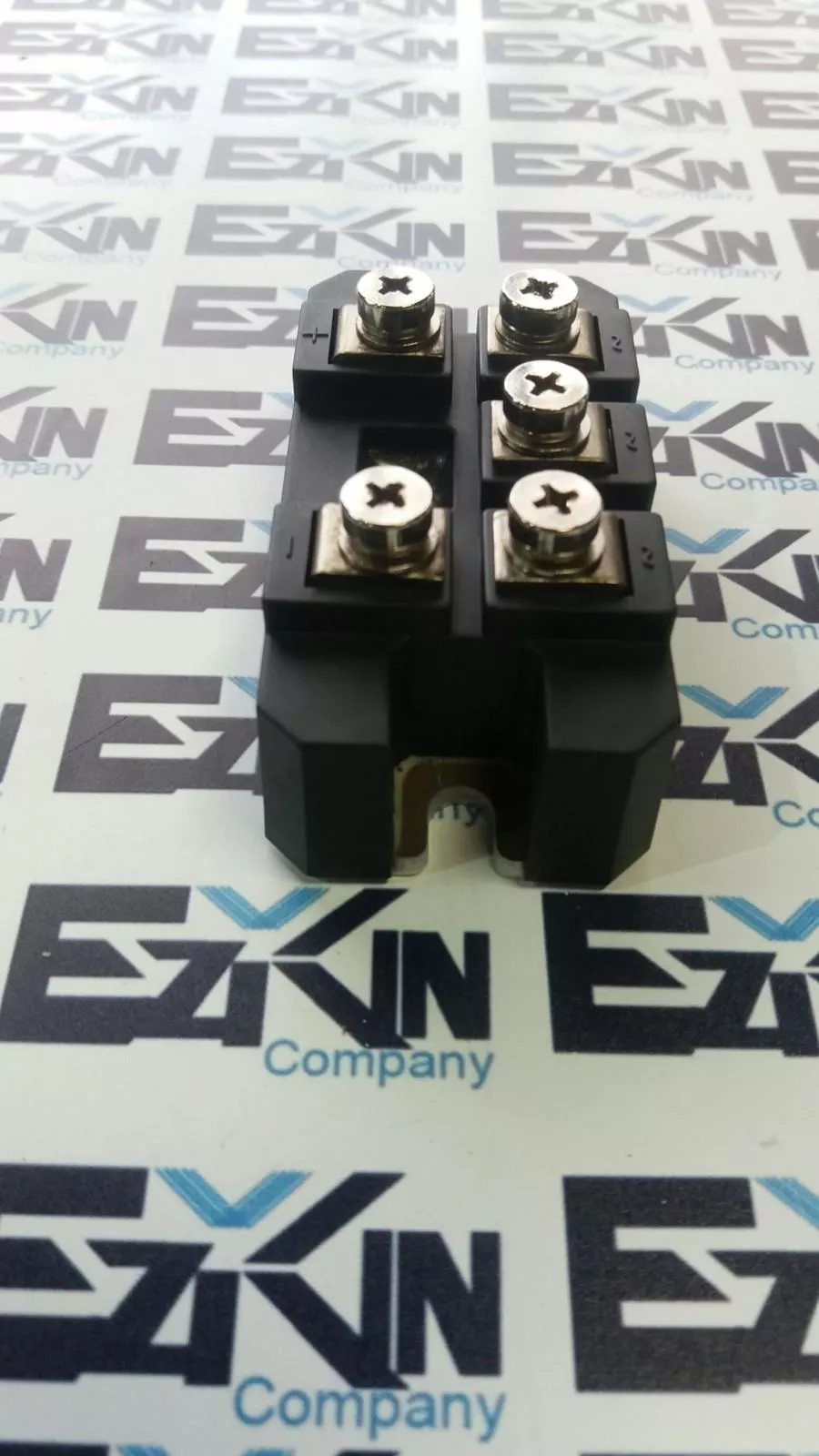

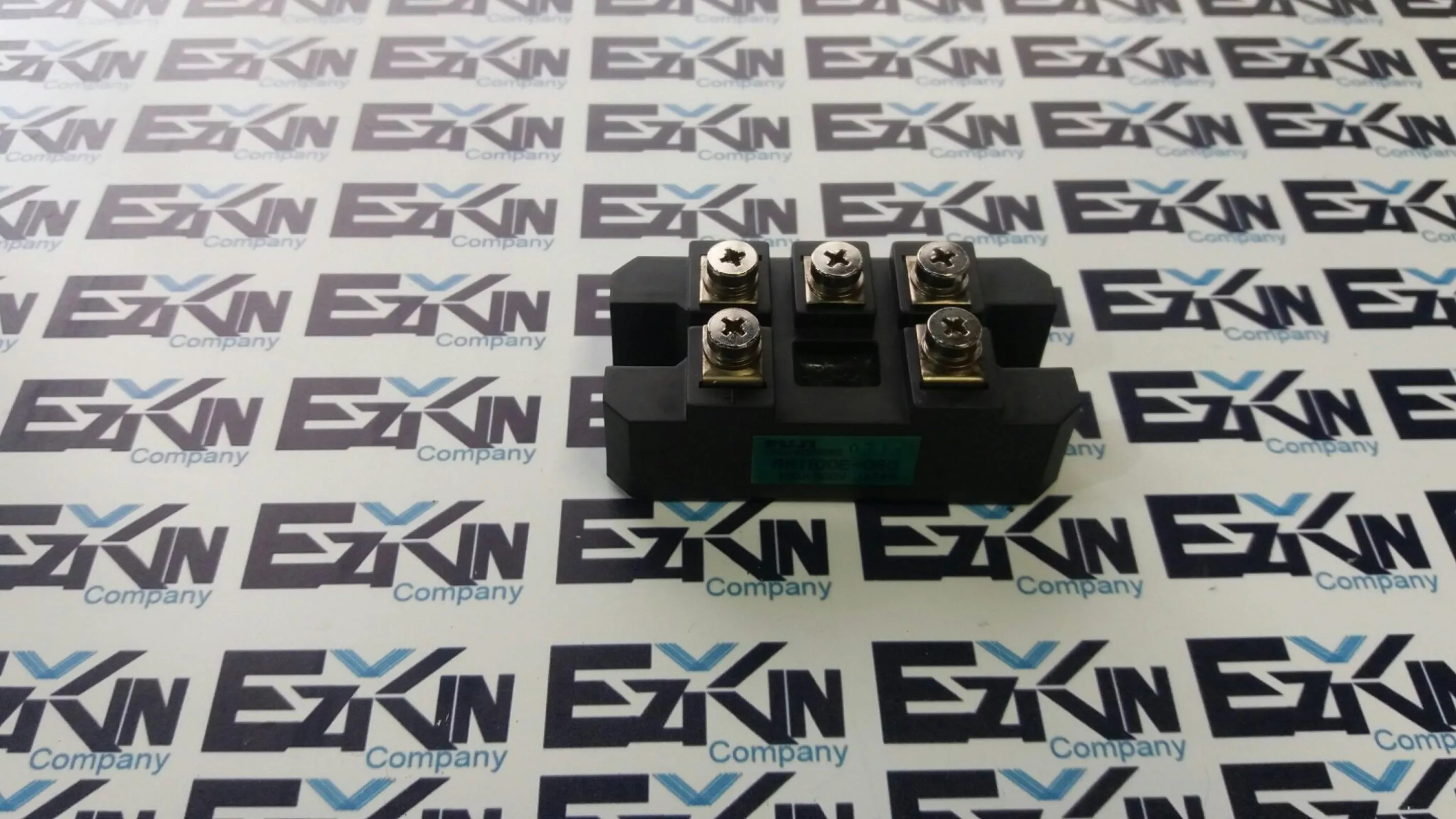

Fuji electric 6RI100E-080 Power Diodes Module

The Fuji Electric 6RI100E-080 is a high-power diode module designed for industrial applications requiring efficient rectification and power conversion. This module integrates six silicon diodes in a three-phase bridge configuration, making it suitable for use in inverters, battery chargers, DC motor drives, and general-purpose DC power supplies. Technical Specifications: Manufacturer: Fuji Electric Model Number: 6RI100E-080 Configuration: 3-phase bridge rectifier Repetitive Peak Reverse Voltage (VRRM): 800 V Average Output Current (IO): 100 A Surge Forward Current (IFSM): 1200 A Forward Voltage Drop (VF): 1.15 V (typical) at 100 A Isolation Voltage: 2000 V AC (1 minute) Operating Junction Temperature Range: -40°C to +150°C Thermal Resistance (Junction to Case): 0.22 °C/W Package Type: Isolated module with screw terminals Applications: Inverters, battery chargers, DC motor drives, general-purpose DC power supplies Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.00

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   3426 4.S7.7.2
