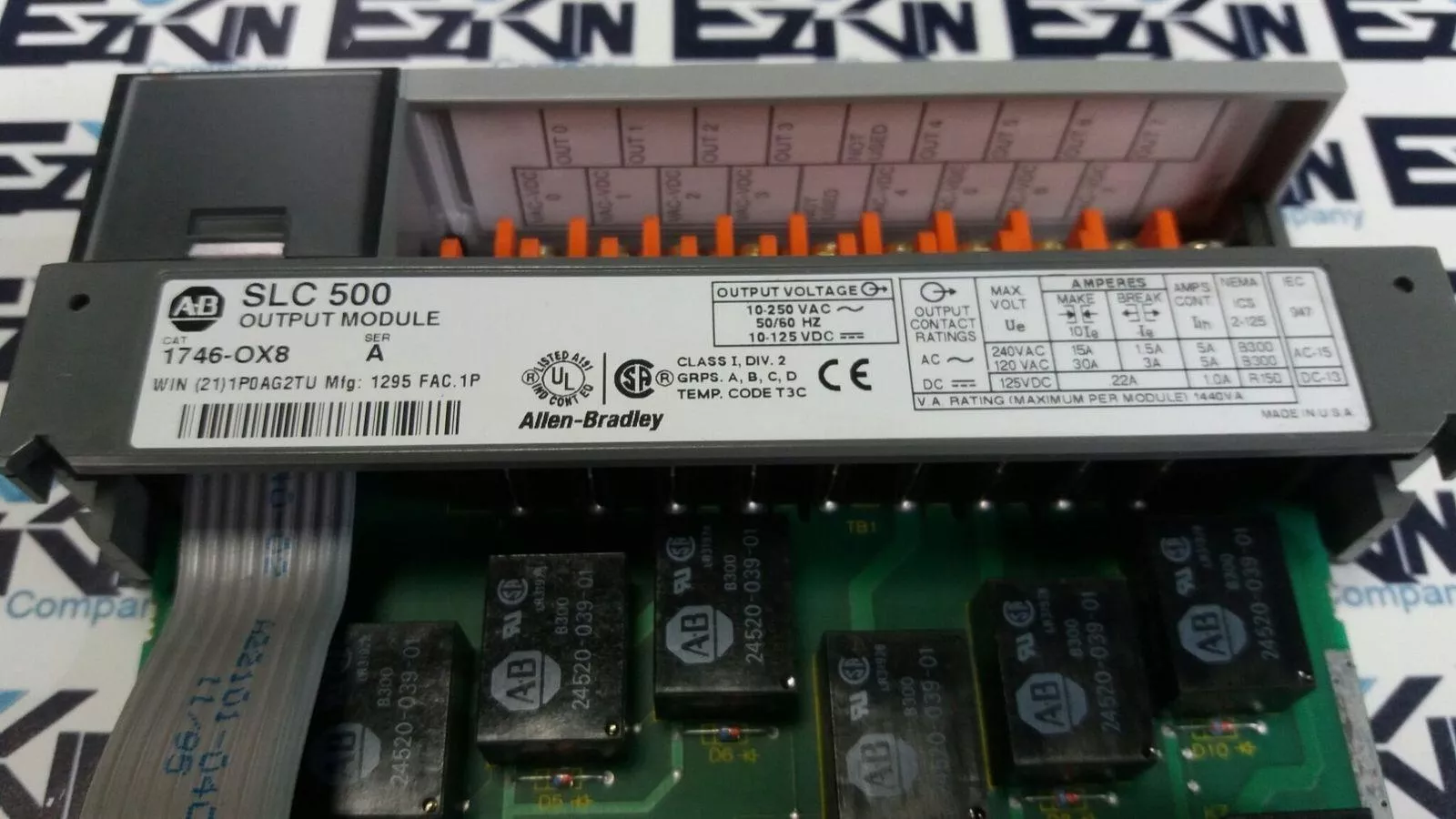

Allen-Bradley 1746-OX8 SER.A Output Module 10-250VAC 10-125VDC

PLC Input & Output Modules

$892
$18.60
Save 98%

In stock 1 available

Quantity
Total Price: $18.60

Share this item:

Questions?

The Allen-Bradley 1746-OX8 is a relay-type output module used in the SLC 500 PLC system. It provides isolated relay contact outputs for AC and DC loads, offering high current switching capability suitable for controlling a variety of industrial devices. Series: A Catalog Number: 1746-OX8 Platform: SLC 500 Module Type: Relay Output Module Number of Outputs: 8 isolated relay outputs Output Voltage Range: 10–250 VAC, 10–125 VDC Frequency: 50/60 Hz (for AC loads) Max Voltage: 240 VAC / 125 VDC Current Ratings: – 240 VAC: 15 A make, 1.5 A break – 120 VAC: 30 A make, 3.0 A break – 125 VDC: 22 A make, 10 A break Max Amps per Output: 2 A Total Module Load: 1440 VA max Contact Type: Form C (SPDT – Single Pole Double Throw) Isolation: 1500V RMS optical/relay isolation Indicators: Status LEDs for each output Environmental: Class 1, Div. 2, Groups A, B, C, D (Hazardous Location Rated) Temperature Code: T3C Certifications: UL Listed, CSA, CE Country of Origin: Made in U.S.A. Application: Industrial automation, motor starters, solenoid valves, pilot lights, alarms Please review pictures carefully and let us know if you have any questions!

MPN:
1746-OX8 SER.ABrand

Condition: Used

Weight:   0.10

Depth:   4.00

Length:   10.00

Width:   8.00

SKU:   3452 4.S2.12.3B
