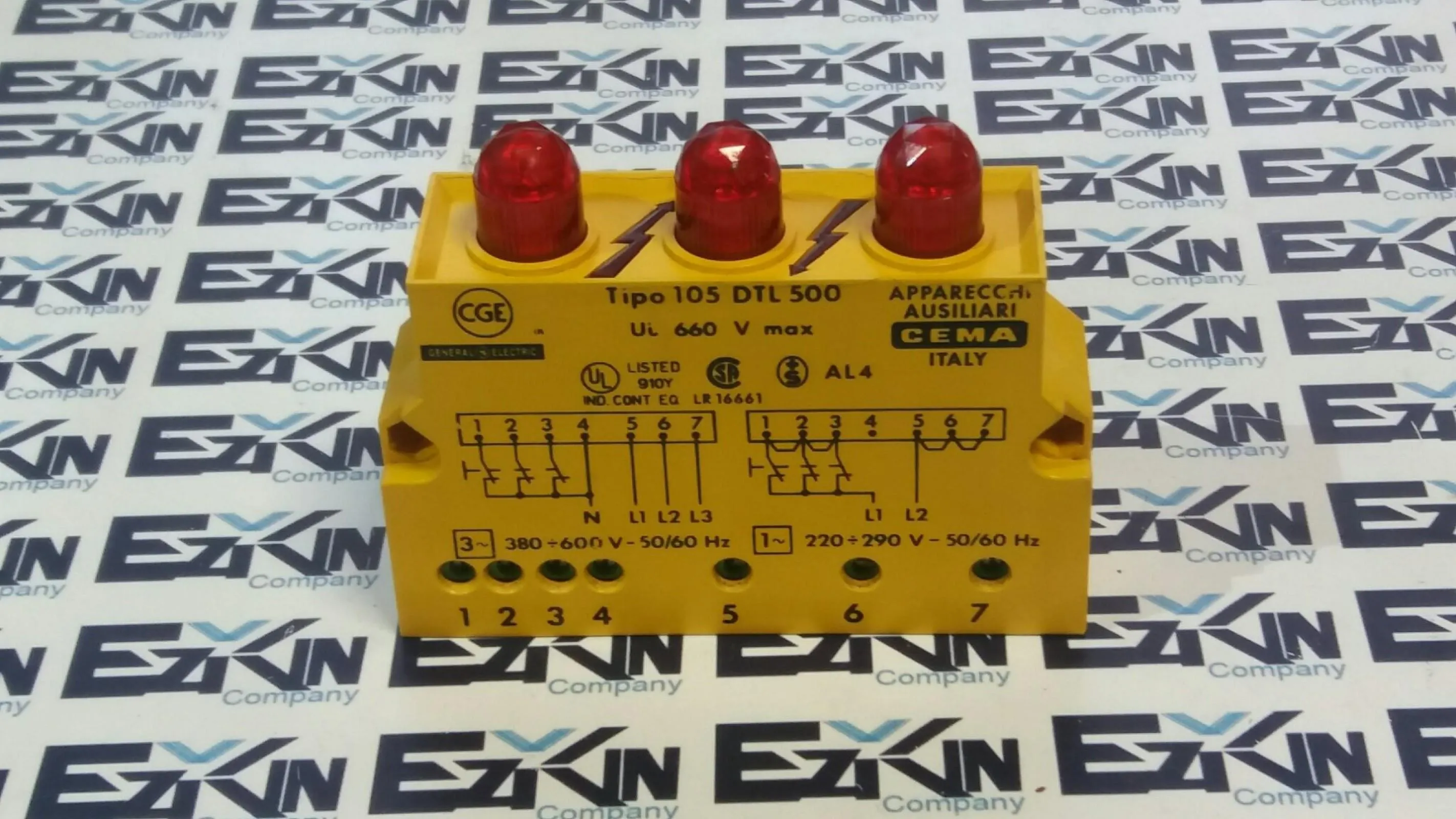

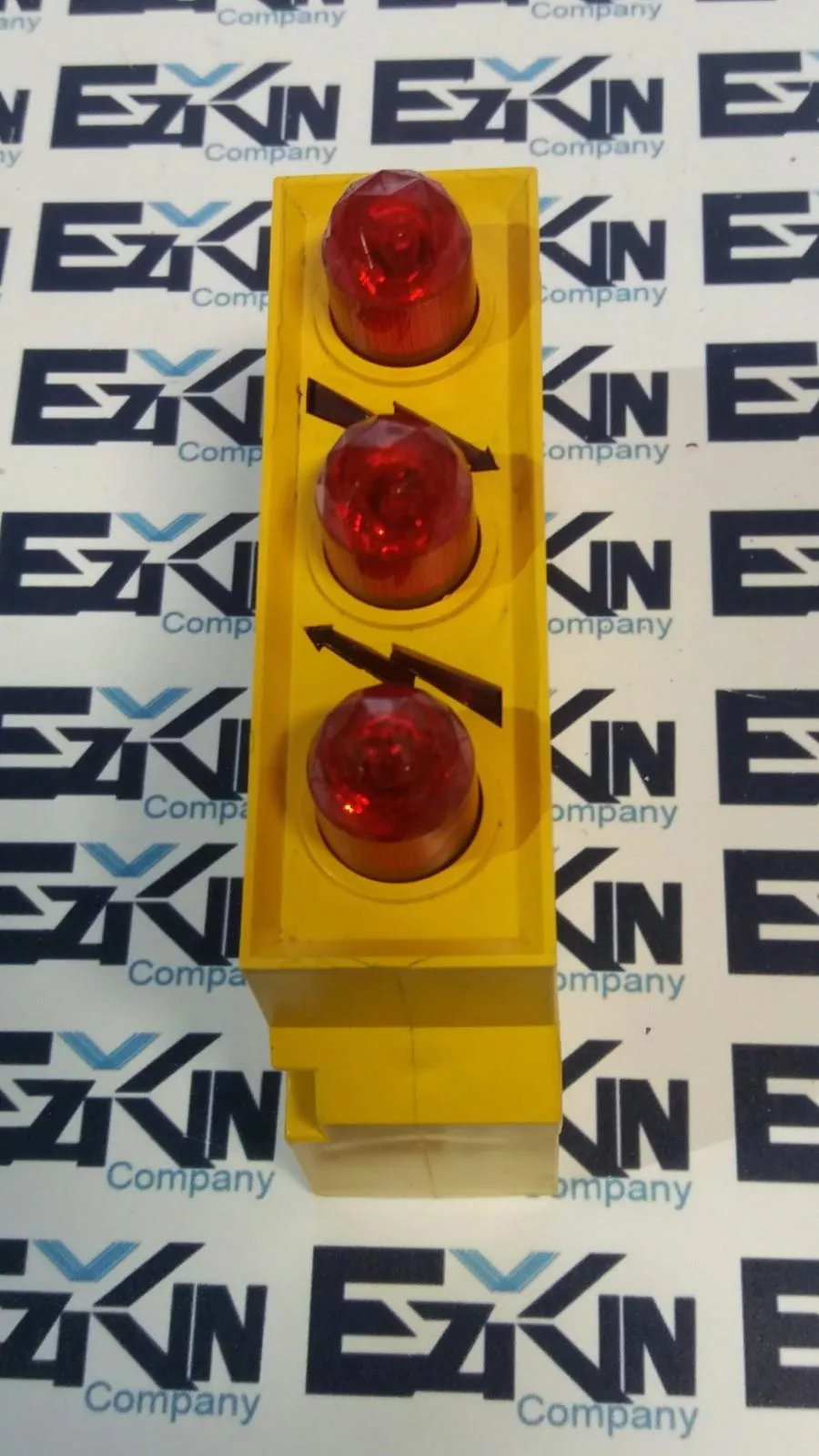

The General Electric 105DTL500 is a power supply signaling device from the Series 105, designed to indicate the presence of voltage in electrical systems. It is suitable for both three-phase and single-phase applications and is typically installed after the main disconnect switch to provide a visual indication of live circuits when the cabinet doors are open. Model: 105DTL500 Series: 105 Application: Power supply signaling for electrical systems Supply Voltage: – Three-phase: 380–600 VAC – Single-phase: 220–350 VAC Frequency: 50/60 Hz Rated Insulation Voltage: 690 V Impulse Withstand Voltage: 4 kV Electrical Input Current: 2 mA max Indicators: Three red luminous lamps Mounting: Panel mount, visible when cabinet doors are open Connections: Terminal strip with numbered terminals, accessible from outside, protected against accidental contact per DIN 57106 Clamping Capacity: 12 AWG Protection Rating: IP20 Operating Temperature Range: -25°C to +70°C Standards Compliance: CEI, IEC, VDE, BSI, UTE Certifications: UL, CSA, CE Dimensions: 110 mm x 87 mm x 30 mm Weight: Approximately 0.13 kg This device is commonly used in industrial settings to enhance safety by providing clear visual indications of energized circuits, helping to prevent accidental contact with live components. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.10
Depth: 4.00
Length: 10.00
Width: 8.00
SKU: 3465 4.S9.10.2
