Square D X0 50 SER.A Industrial Control Relay, 600V 5A Class 8501 Type X

The Square D 8501-X0-50 is a robust industrial control relay designed for general-purpose switching in automation systems. Part of the Type X series, it offers high flexibility and modularity for expanding contact configurations and reliable control in demanding environments.

Model: 8501-X0-50
Series: A
Class: 8501
Type: X (General-purpose control relay)
Coil Voltage: Typically 120V 60Hz or as specified (verify per unit)
Contact Configuration: 5 Normally Open (5NO) contacts
Maximum Expandability: Up to 12 poles total (maximum 8 NC contacts)
Contact Rating: 5 A at 600 VAC
AC Voltage Ratings (UL/CSA):
– 120 VAC: 10 A
– 240 VAC: 10 A
– 480 VAC: 6 A
– 600 VAC: 5 A
DC Voltage Ratings:
– 125 VDC: 0.4 A
– 250 VDC: 0.2 A
General-purpose (Resistive Load):
– Up to 10 A @ 300 VAC max
– Up to 10 A @ 28 VDC
Mounting Style: DIN rail or panel mount
Terminal Type: Screw terminals
Applications: Control panels, interlocks, pilot circuits, HVAC, motor control systems
Certifications: UL Listed, CSA Certified
Features:
– Snap-on auxiliary contacts for modular expansion
– High dielectric strength
– Reliable mechanical interlock design
– Durable housing for harsh industrial environments

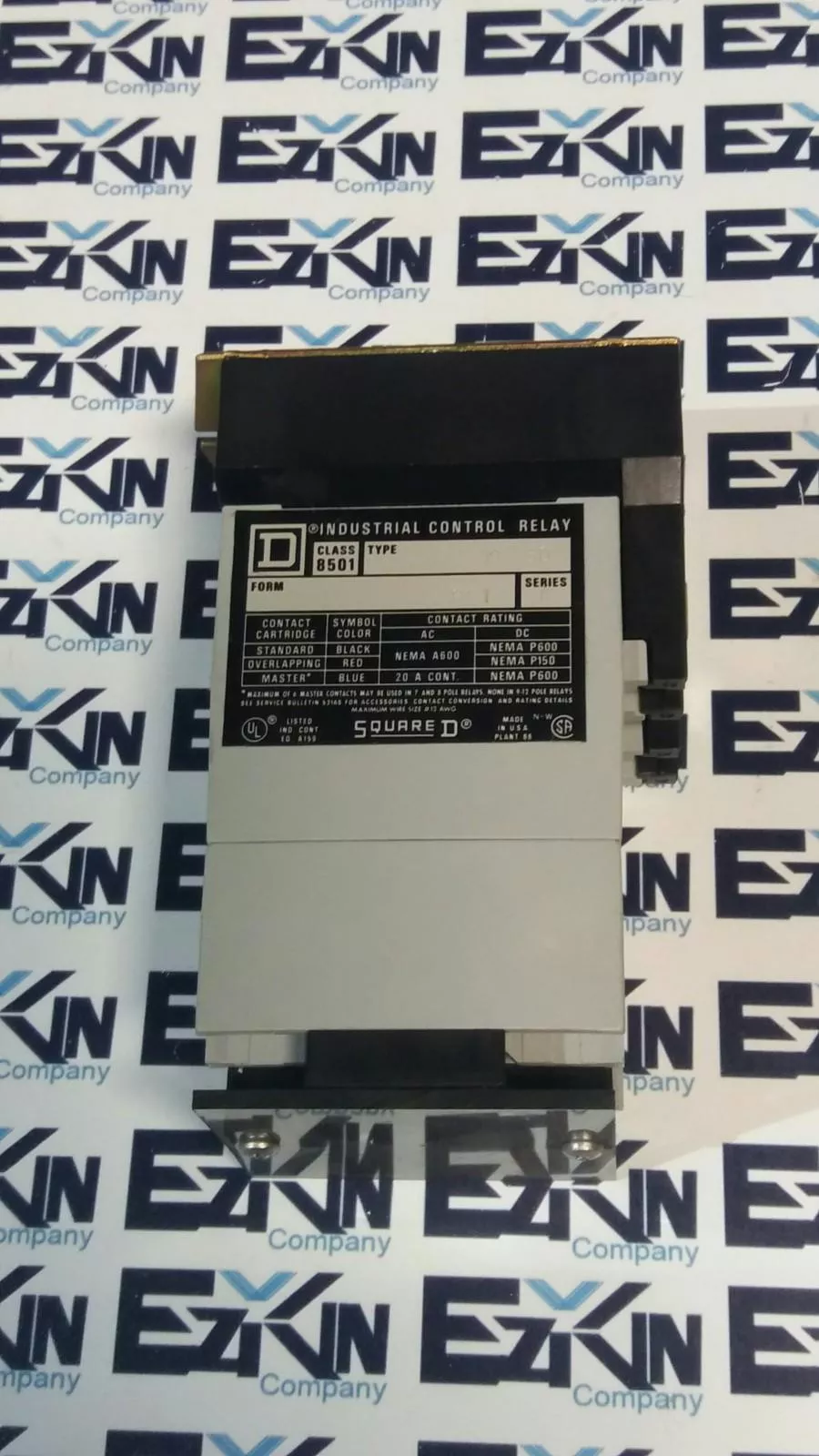

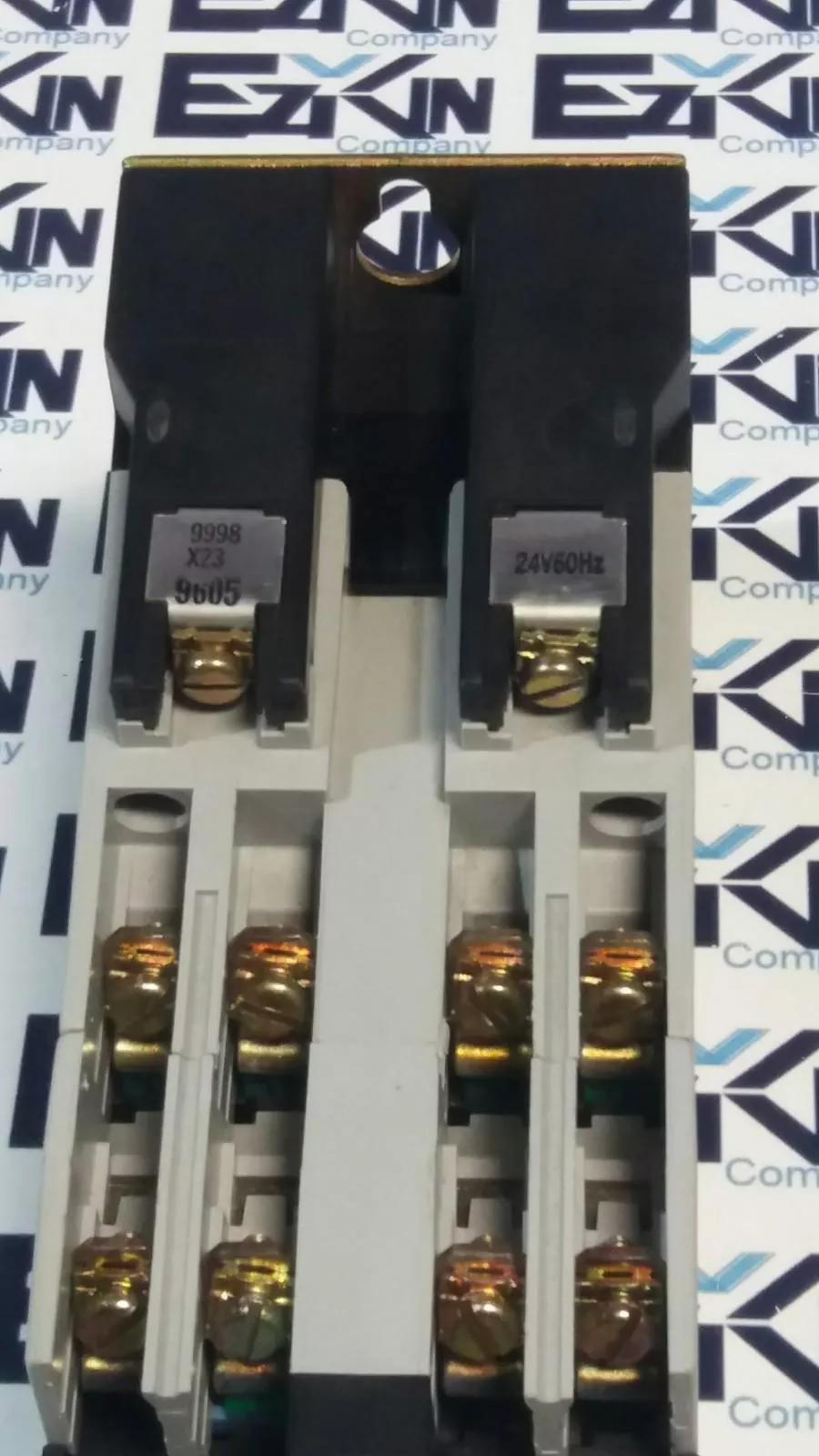

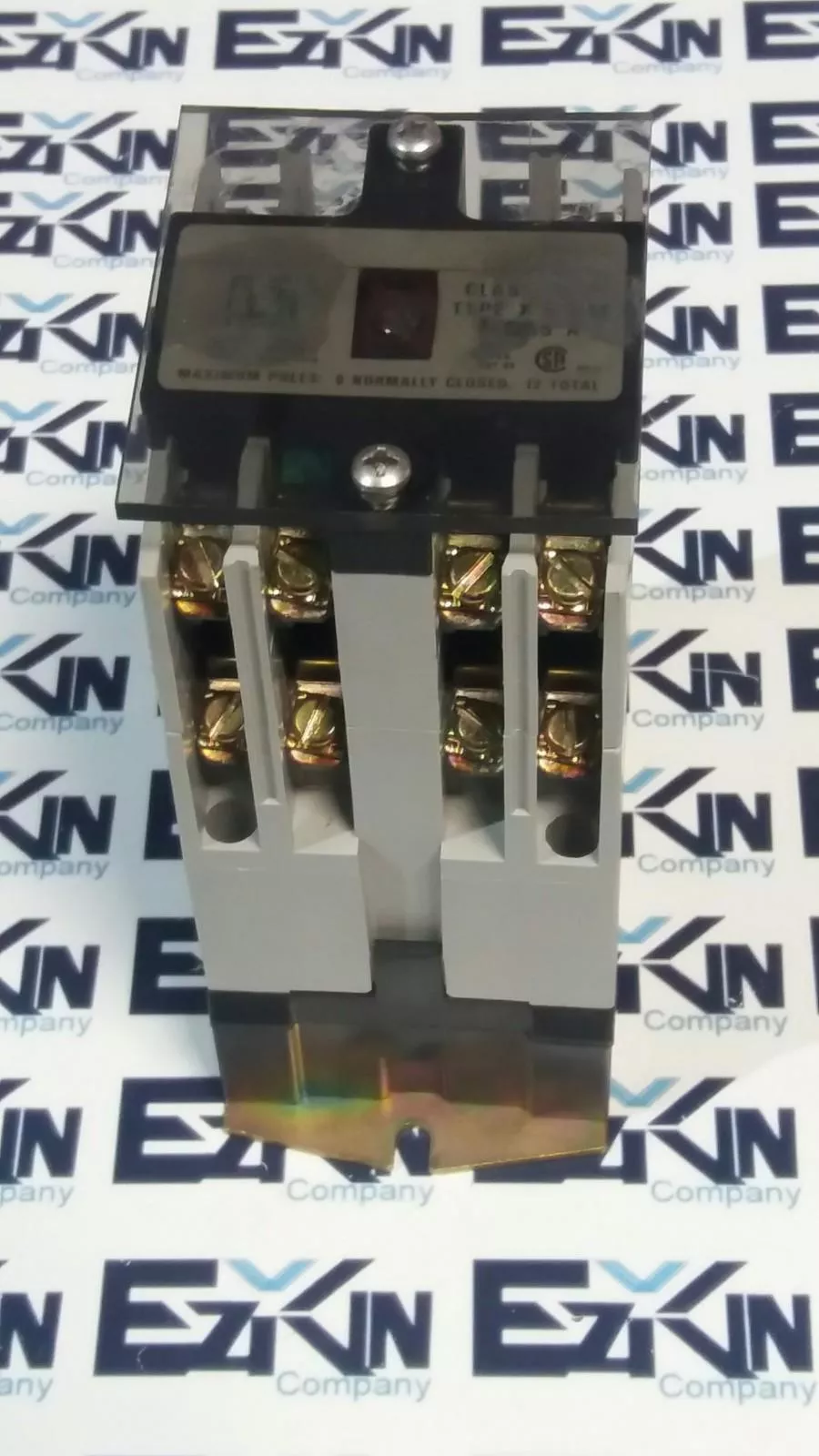

Made in: USA Please review pictures carefully and let us know if you have any questions!
