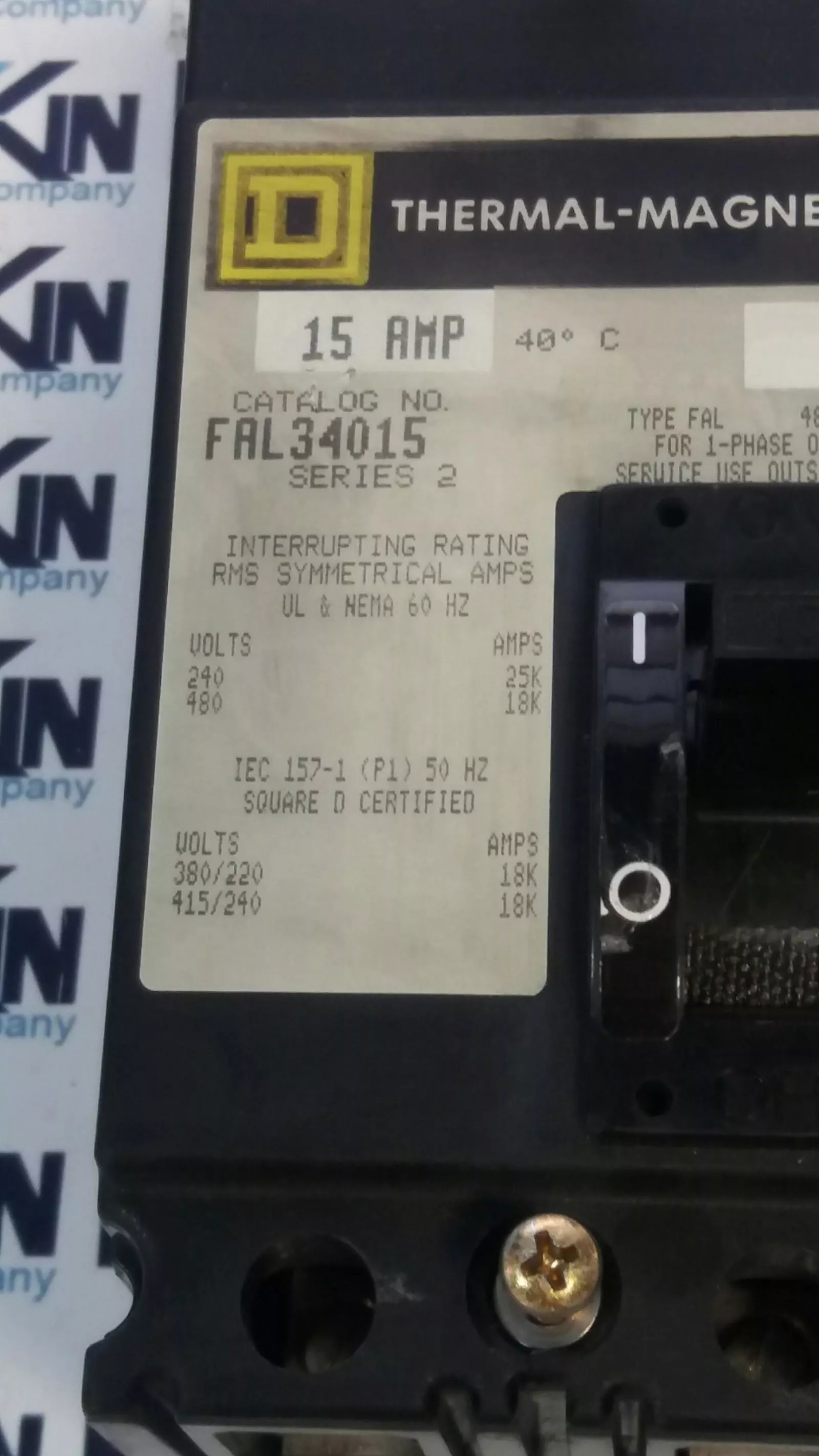

Square D FAL34015 Thermal-Magnetic Circuit Breaker, 15Amp 480VAC/250VDC

The Square D FAL34015 is a 3-pole, thermal-magnetic molded case circuit breaker from the FAL series. It is designed for reliable protection of electrical circuits against overloads and short circuits in both AC and DC systems. Model: FAL34015 Manufacturer: Square D (Schneider Electric) Frame Type: FAL Current Rating: 15 Amps Voltage Ratings: – 480 VAC (maximum) – 250 VDC (maximum) Number of Poles: 3 Interrupting Rating: 18 kA @ 480 VAC Trip Unit: Fixed thermal-magnetic Mounting Style: Bolt-on Terminal Type: Line and load lugs Frequency: 50/60 Hz Standards: UL 489, CSA certified Applications: Panelboards, motor control centers, commercial and industrial distribution panels Made In: Typically USA (check label for batch-specific origin) Features: – Suitable for branch circuit protection – High interrupting capacity – Compact molded case design for ease of installation in tight enclosures

Condition: Used

Weight:   4.01

Depth:   6.00

Length:   12.00

Width:   9.00

SKU:   3511 4.S5.15.5
