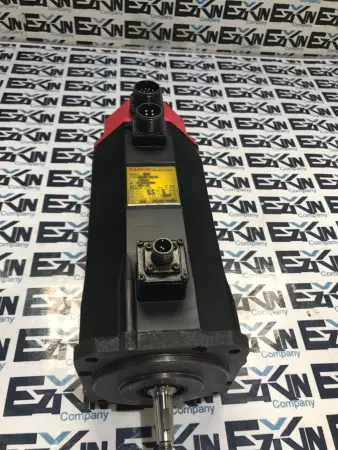

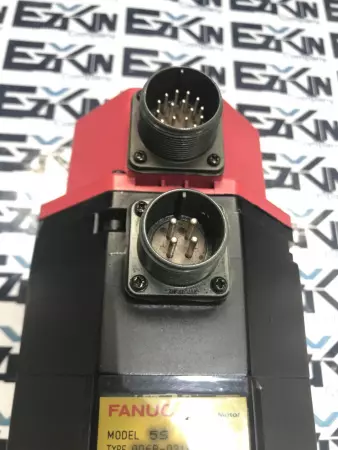

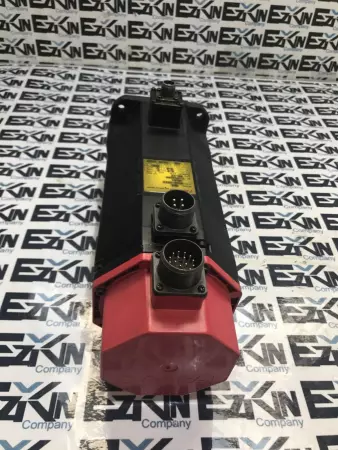

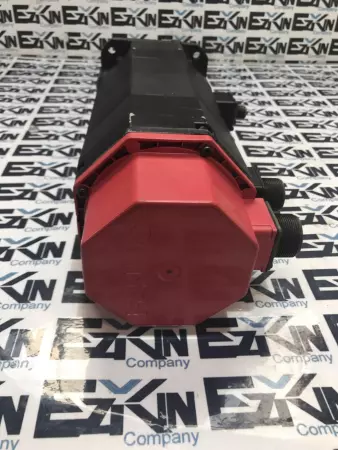

Fanuc A06B-0314-B201 AC Servo Motor, Model 5S 126V

The Fanuc A06B-0314-B201 is a high-performance AC servo motor built for precise motion control in CNC and industrial automation systems. It features reliable operation with permanent magnet excitation and integrated pulse coder feedback for position accuracy.

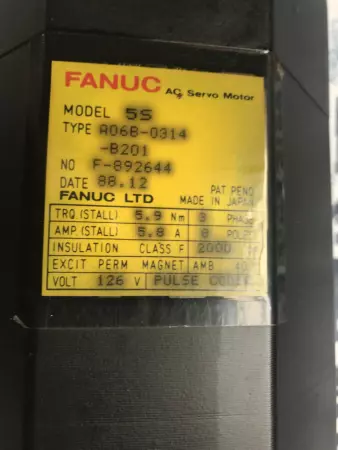

Brand: Fanuc
Model: 5S
Type: A06B-0314-B201
Rated Voltage: 126 V
Rated Torque (Stall): 5.9 Nm
Stall Current: 5.8 A
Number of Poles: 8
Insulation Class: F
Excitation: Permanent magnet
Cooling: Natural convection

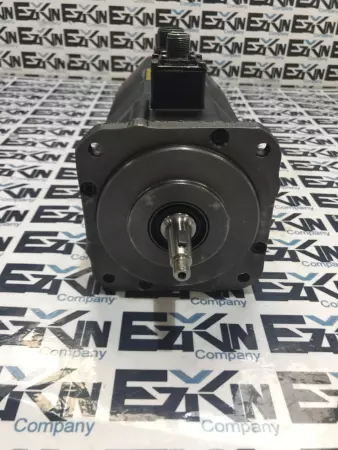

Tapered shaft
Feedback: Pulse coder (incremental encoder)
Phase: 3-phase
Ambient Temp Rating: 40°C
Max Operating Speed: 2000 RPM (based on class F rating)
Country of Manufacture: Japan
Application: CNC machinery, robotic arms, automated systems
