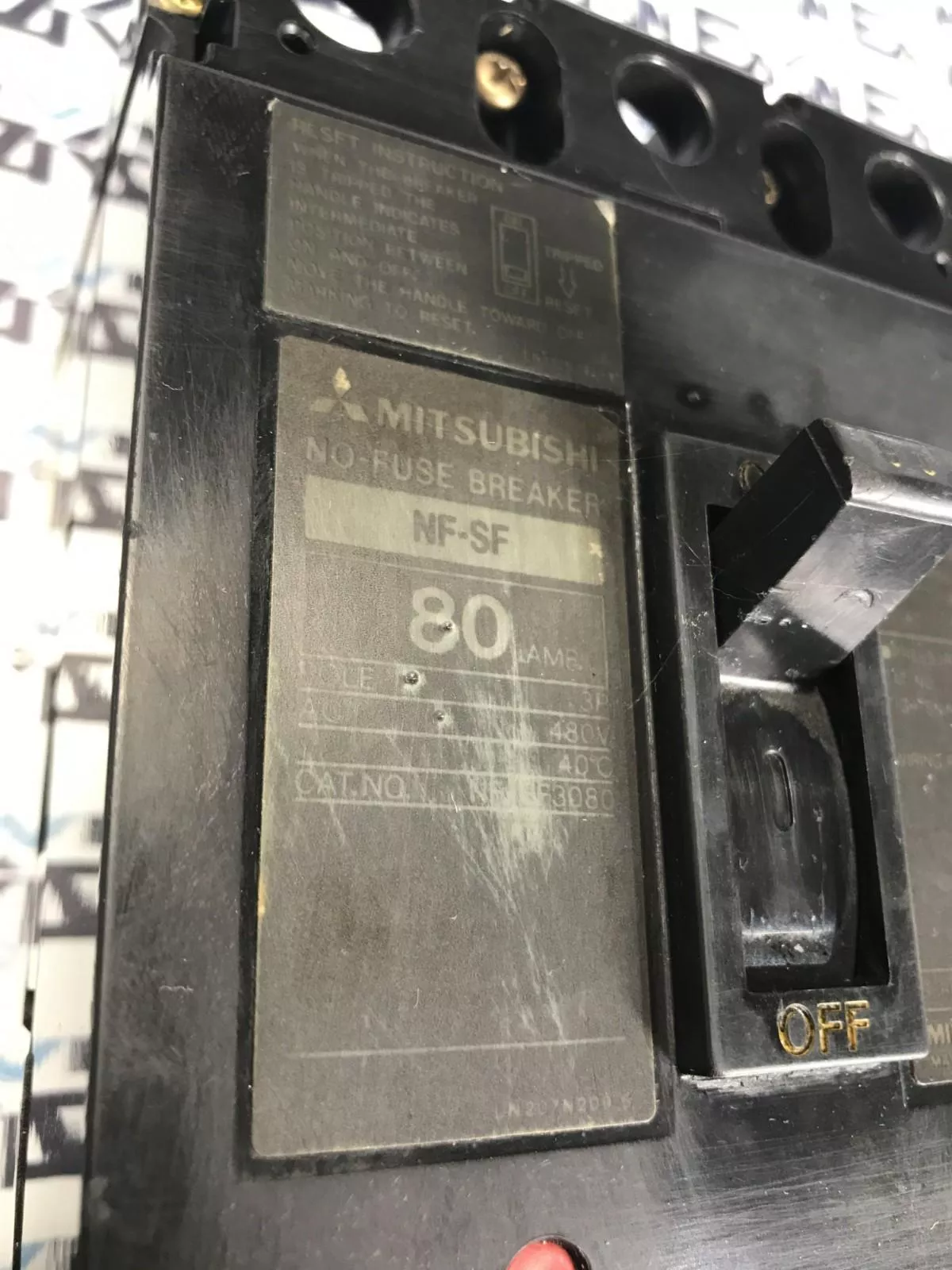

Mitsubishi Electric NF-SF 3-Pole NO-Fuse Breaker, 80A 480VAC

The Mitsubishi NF-SF series no-fuse breaker is a molded case circuit breaker (MCCB) designed for industrial applications. It offers dependable overcurrent and short-circuit protection for three-phase power systems. Model Series: NF-SF Type: No-Fuse Breaker (MCCB) Poles: 3-Pole Rated Current: 80 A Rated Voltage: 480 V AC Maximum Voltage: 600 V AC Interrupting Capacity: – AC 240 V: Up to 15 kA – AC 380–415 V: Up to 10 kA – AC 480 V: Up to 7.5 kA – AC 600 V: Up to 2.5 kA Frequency: 50/60 Hz Mounting: Panel mount Trip Mechanism: Thermal-magnetic Push-to-Trip Button: Included (standard on NF-SF series) Application: Distribution boards, motor protection, and industrial machinery Manufacturer: Mitsubishi Electric Standards Compliance: JIS, IEC, UL (varies by model variant) Country of Origin: Japan

Condition: Used

Weight:   4.70

Depth:   6.00

Length:   16.00

Width:   10.00

SKU:   3603 4.S8.15.2
