In stock 2 available

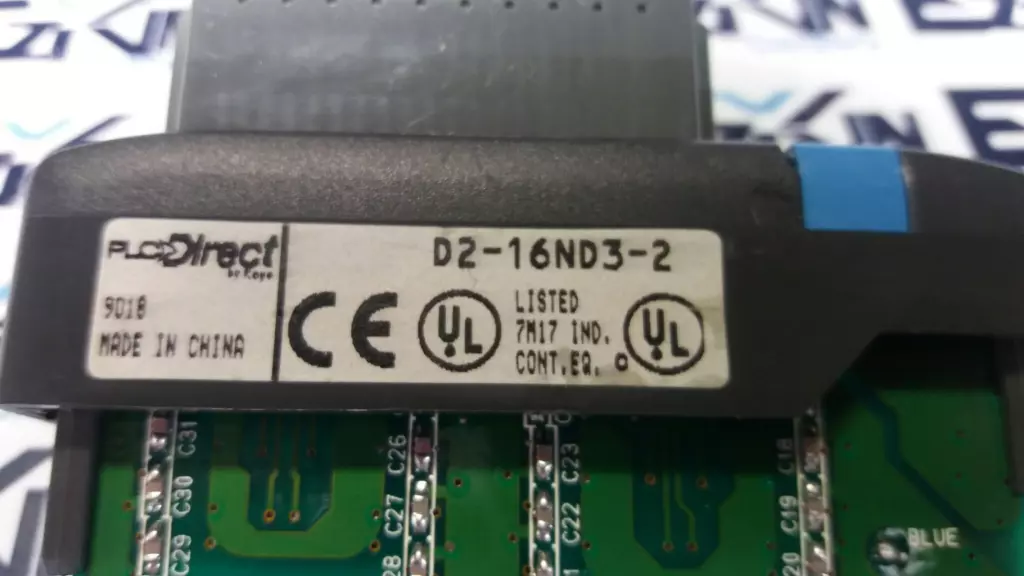

16-point discrete input module for DirectLOGIC 205 PLC systems. Supports both sinking and sourcing 24VDC input signals with two isolated commons for enhanced flexibility and noise immunity. Model: D2-16ND3-2 Platform: DirectLOGIC 205 Type: DC Input Module Number of Inputs: 16 Input Voltage: 24V DC nominal (operating range: 12–24V DC) Input Type: Sinking/Sourcing (user-configurable) Commons: 2 isolated commons Points per Common: 8 Input Impedance: Approx. 2.2 kΩ On-State Voltage: 12–24V DC On-State Current: ≥3.5 mA Off-State Voltage: <3V DC Off-State Current: ≤1.5 mA Isolation: Optical isolation, 500V AC (field to logic) Status Indicators: Individual LEDs for each input Terminal Block: Removable terminal block included Mounting: Module slot in DL205 chassis Operating Temperature: 0°C to 60°C Manufacturer: PLC Direct (AutomationDirect) Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.15
Depth: 4.00
Length: 10.00
Width: 8.00
SKU: 3649 4.S1.10.4E
