Out of stock

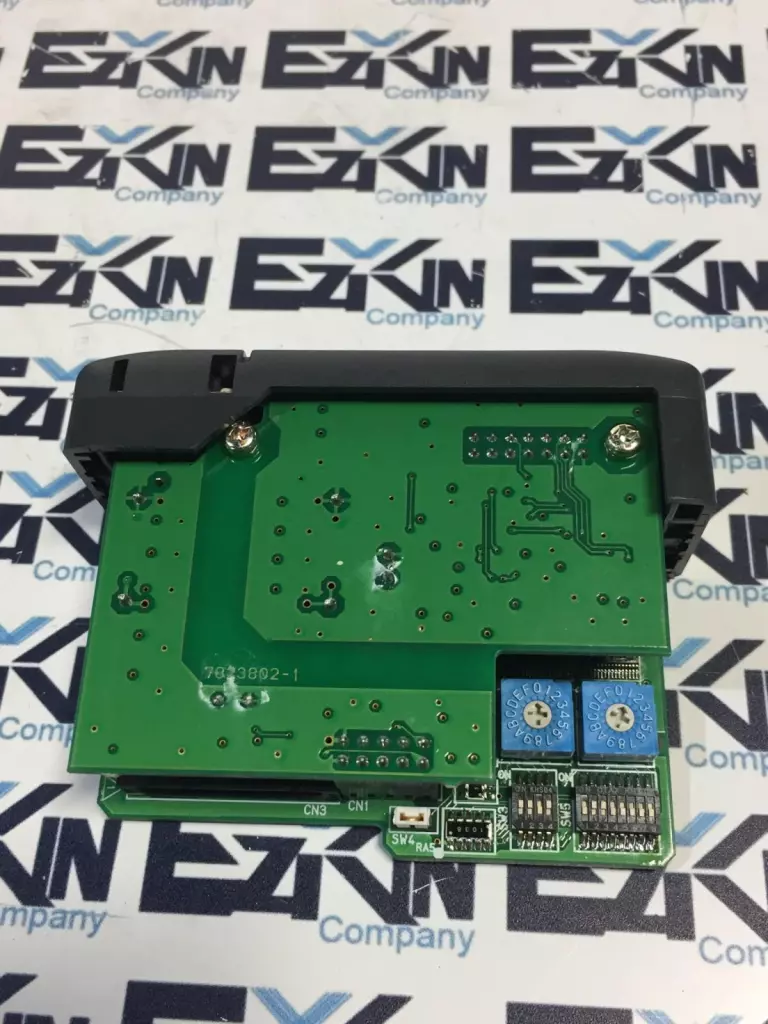

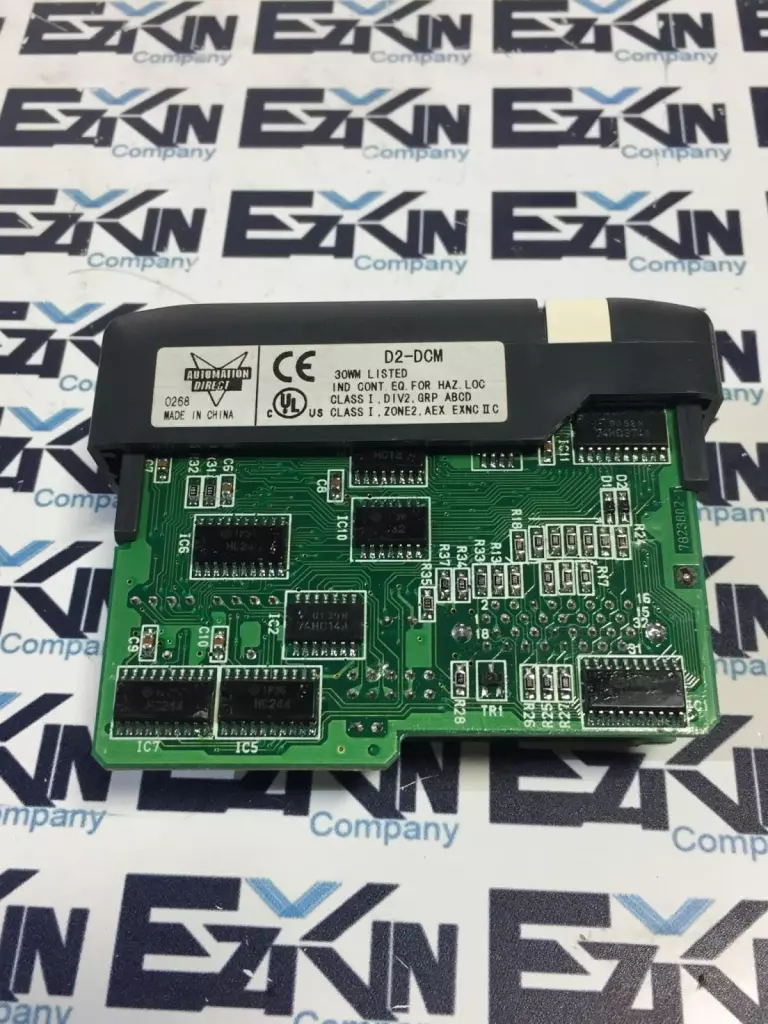

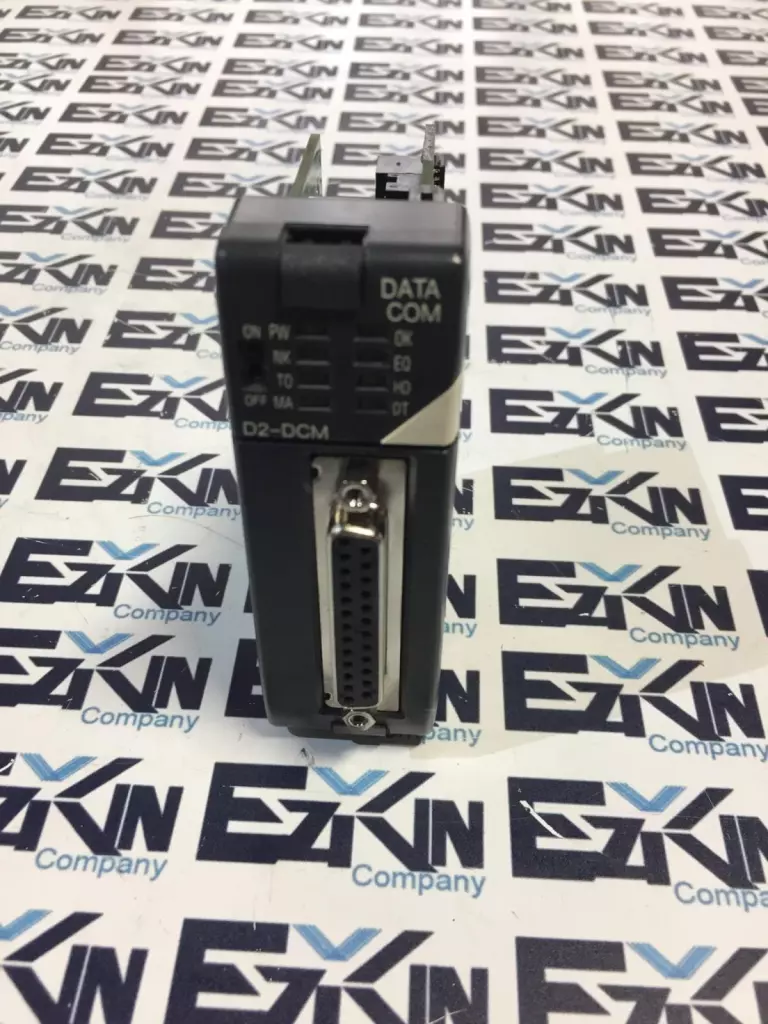

Serial communication module for DirectLOGIC 205 PLCs, enabling RS232 or RS422/485 networking with other PLCs, operator interfaces, or external devices. Model: D2-DCM Platform: DirectLOGIC 205 Type: Data Communication Module Communication Ports: 1 × serial (configurable for RS232, RS422, or RS485) Supported Protocols: DirectNET, K-sequence, MODBUS RTU Baud Rates: 300 to 38.4 kbps (selectable) Data Format: 7 or 8 data bits, odd/even/no parity Isolation: Optical isolation between field and logic Maximum Nodes: Up to 90 stations (depending on network configuration) Power Requirement: Supplied from base (approx. 100 mA at 5V DC) Status Indicators: LED diagnostics for TX/RX and module status Mounting: DL205 base slot Operating Temperature: 0°C to 60°C Terminal Type: DB9 (RS232) or 6-position terminal block (RS422/485) Manufacturer: AutomationDirect Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.10
Depth: 4.00
Length: 10.00
Width: 8.00
SKU: 3658
