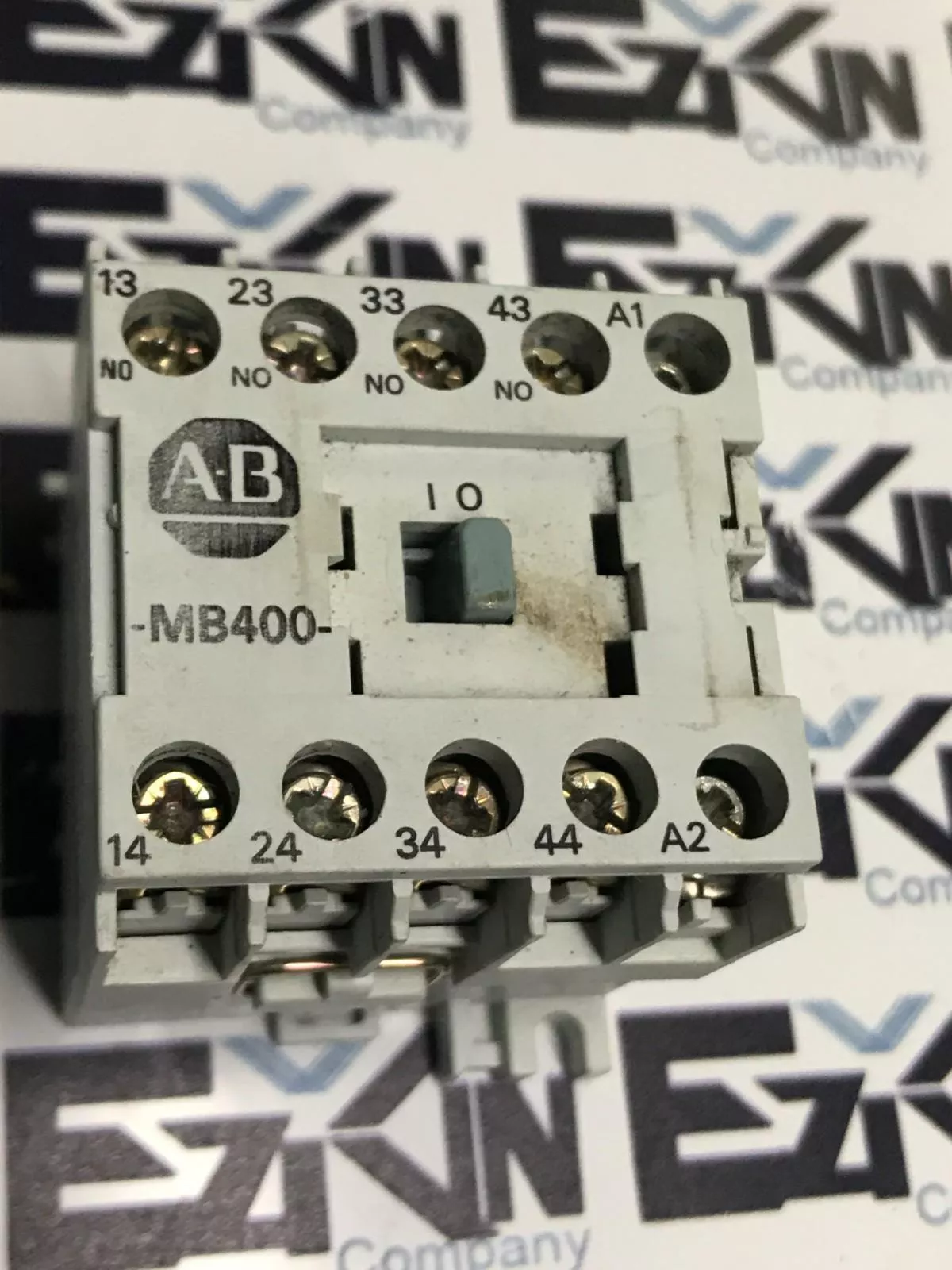

Allen-Bradley 700DC-MB400* SER.A Contactor, 300VAC 10A 24VDC Coil

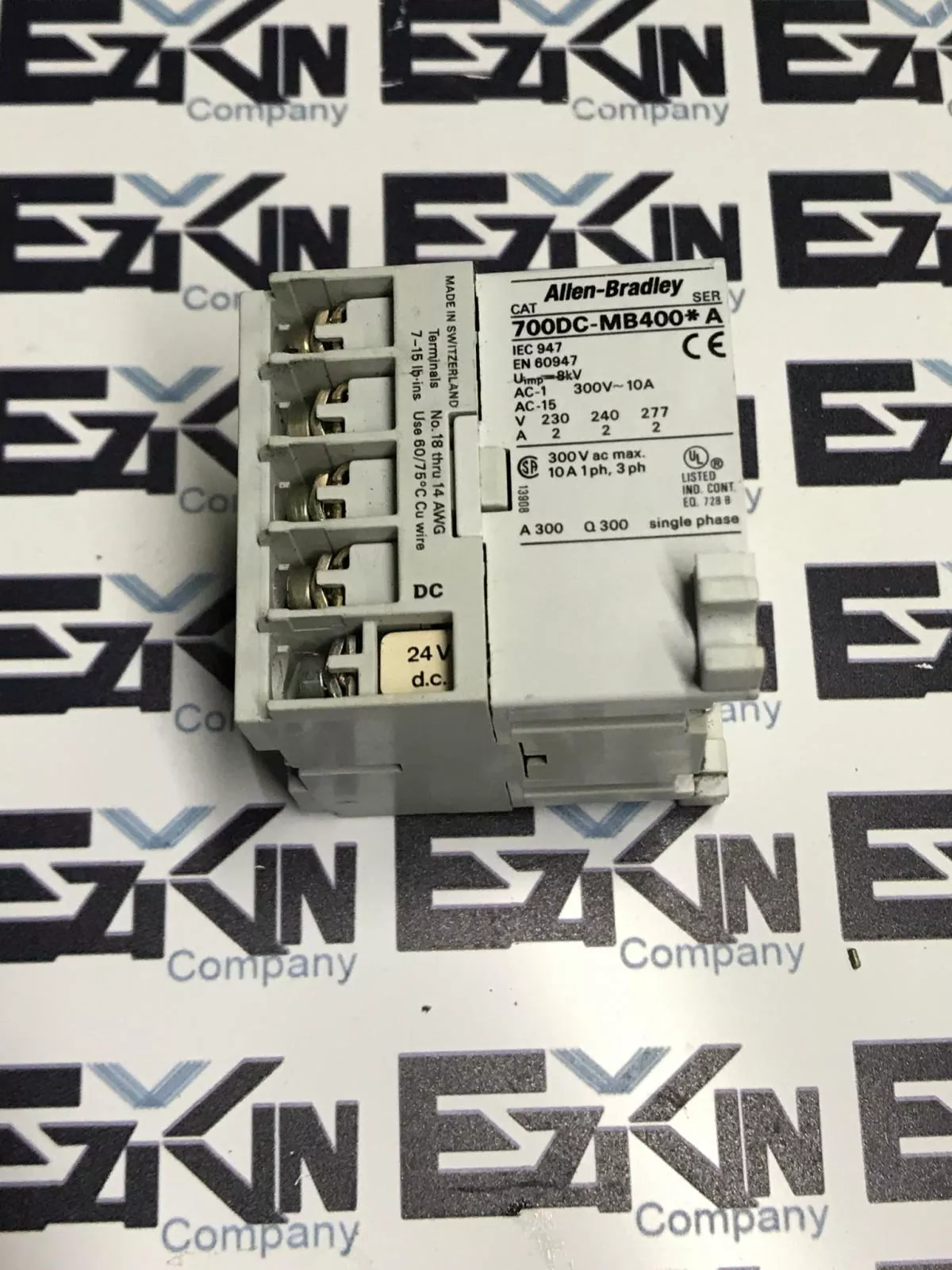

Component Details Manufacturer: Allen-Bradley Catalog Number: 700DC-MB400*A Series: A Type: DC Control Relay / Miniature Contactor Coil Voltage: 24 VDC Electrical Ratings AC-1 Rating: 300V – 10A AC-15 Ratings: 230V – 2A 240V – 2A 277V – 2A General Specifications Rated Impulse Withstand Voltage (Uimp): 8 kV Standards: IEC 60947 Max AC Voltage: 300V Max Load: 10A, 1-phase, 3-phase motor rating Control Supply: DC Coil – 24V Terminals: Accepts 18-14 AWG wire, tightened to 0.8 Nm (7.15 lb-in) Made in: Switzerland Certifications: CE, cULus Listed

Condition: Used

Weight:   0.70

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   3685 4.S9.9.1
